PmodRS232: Serial Converter and Interface Standard

SKU: 01DIG410068

  • Sale
  • Regular price $14.99

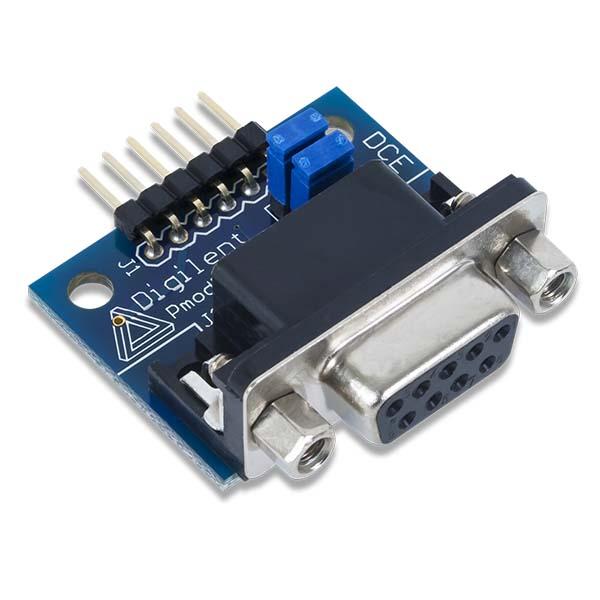

The Digilent Pmod RS232 converts between digital logic voltage levels to RS232 voltage levels using the Maxim Integrated MAX3232 transceiver. The RS232 module is configured as a data communications equipment (DCE) device. It connects to data terminal equipment (DTE) devices, such as the serial port on a PC, using a straight-through cable.


  • Maxim Integrated MAX3232 RS232 transceiver Standard RS232 DB9 connector
  • Optional RTS and CTS handshaking functions
  • Small PCB size for flexible designs 1.0' x  1.3' (2.5 cm x 3.3 cm)
  • 6-pin Pmod connector with UART interface
  • Follows Digilent Pmod Interface Specification Type 3
