PmodENC: Rotary Encoder

SKU: 01DIG410117

  • Sale
  • Regular price $6.99

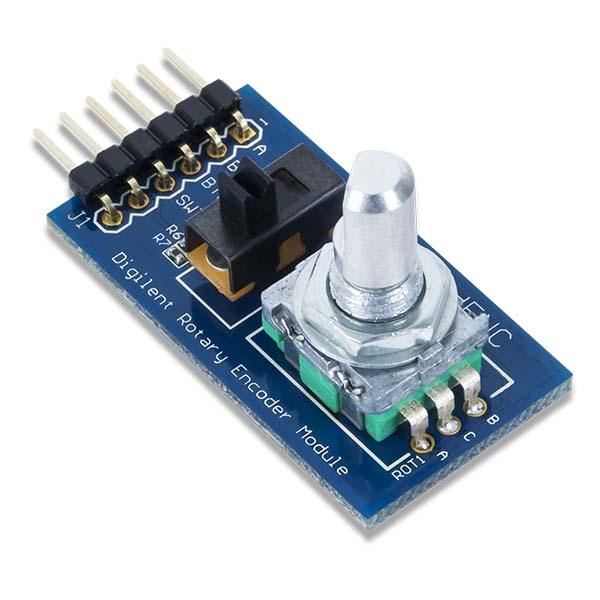

The Pmod ENC features a rotary shaft encoder with an integral push-button to provide multiple types of outputs such as a way for users to quickly switch between multiple choices shown on a screen or predefined motor speeds. The module also includes a sliding switch that is commonly used as an on/off output. An encoder is commonly used in freely rotating volume knobs to detect how many "clicks" a knob has been rotated.


Features:

  • Rotary push-button shaft encoder
  • Add multiple types of user input to host board or project
  • Additional static slide switch
  • Small PCB size for flexible designs 1.5 in x 0.8 in (3.8 cm x 2.0 cm)
  • 6-pin Pmod connector with GPIO interface
  • Follows Digilent Pmod Interface Specification Type 1
