PmodR2R: Resistor Ladder D/A Converter

SKU: 01DIG410165

  • Sale
  • Regular price $4.99

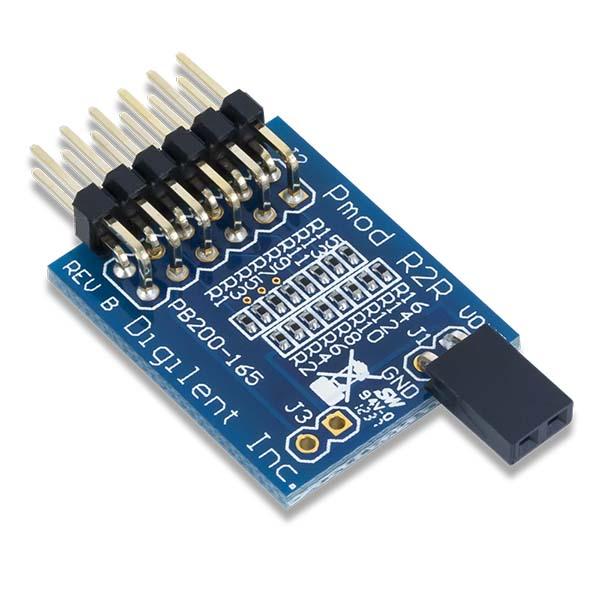

The Pmod R2R is resistor ladder with a R-2R resistor configuration. Users can provide 8-bits of parallel data to the module through GPIO signals. This setup teaches users the basic principles behind a Digital-to-Analog Converter.


  • 8-bit digital-to-analog conversion
  • Convert data at up to 25MHz
  • Easy attachment of oscilloscopes to illustrate the data conversion process
  • Small PCB size for flexible designs 1.0 in x 0.8 in (2.54 cm x 2.0 cm)
  • 2x6-pin Pmod connector with GPIO interface
  • Follows Digilent Interface Specification Type 1
