PmodAD2: 4-channel 12-bit A/D Converter

SKU: 01DIG410217

  • Sale
  • Regular price $19.99

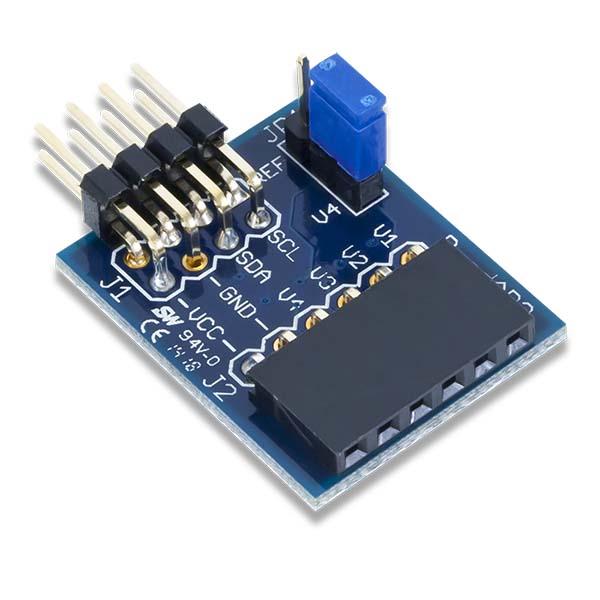

The Pmod AD2 is an analog-to-digital converter powered by the Analog Devices AD7991. Users may communicate with the board through I2C to configure up to 4 conversion channels at 12 bits of resolution.


  • Up to four 12-bit analog-to-digital converter channels
  • On-board 2.048 V voltage reference
  • Jumper selectable reference input
  • Small PCB size for flexible designs 1.0 in x 0.8 in (2.5 cm x 2.0 cm)
