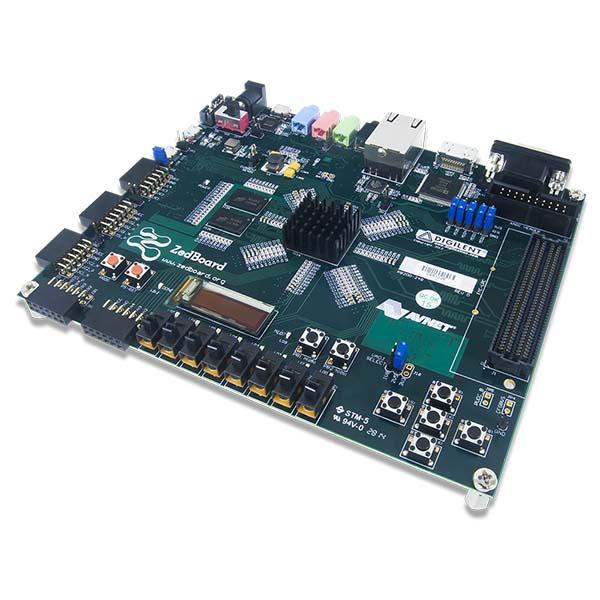

ZedBoard Zynq-7000 ARM/FPGA SoC Development Board

SKU: 01DIG410248

  • Sale
  • Regular price $495.00


ZedBoard is a low-cost development board for the Xilinx Zynq-7000 all programmable SoC (AP SoC). This board contains everything necessary to create a Linux®, Android®, Windows®, or other OS/RTOS based design. Additionally, several expansion connectors expose the processing system and programmable logic I/Os for easy user access. Take advantage of the Zynq-7000 AP SoCs tightly coupled ARM® processing system and 7-series programmable logic to create unique and powerful designs with the ZedBoard. Target applications include video processing, motor control, software acceleration, Linux/Android/RTOS development, embedded ARM processing, and general Zynq-7000 AP SoC prototyping. The ZedBoard kit is supported by the www.zedboard.org community website where users can collaborate with other engineers also working on Zynq designs.

Features:

  • Xilinx Zynq-7000 AP SoC XC7Z020-CLG484
  • Dual-core ARM Cortex-A9
  • 512 MB DDR3
  • 256 MB Quad-SPI Flash
  • 4 GB SD card
  • On-board USB-JTAG Programming
  • 10/100/1000 Ethernet
  • USB OTG 2.0 and USB-UART
  • Analog Devices ADAU1761 SigmaDSP® Stereo, Low Power, 96 kHz, 24-Bit Audio Codec
  • Analog Devices ADV7511 High Performance 225 MHz HDMI Transmitter (1080p HDMI, 8-bit VGA, 128x32 OLED)
  • PS & PL I/O expansion (FMC, Pmod, XADC)
