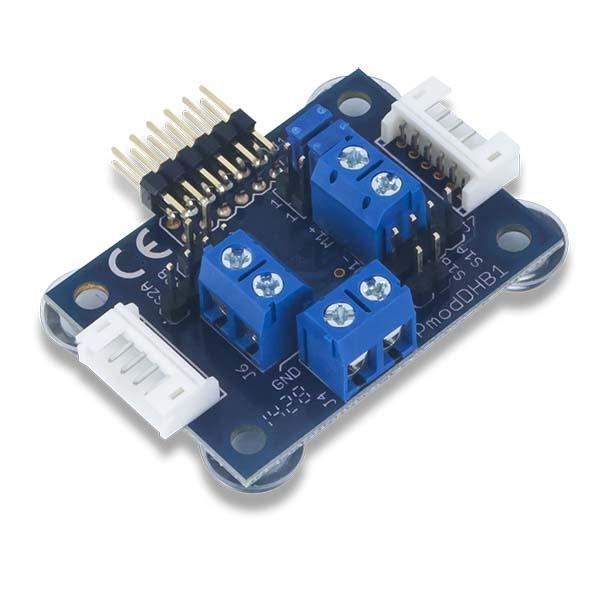

PmodDHB1: Dual H-bridge

SKU: 01DIG410259

  • Sale
  • Regular price $16.99

The Pmod DHB1 uses the Texas Instruments® DRV8833 dual H-Bridge motor driver chip to drive two DC motors or a single stepper motor. Each H-Bridge can be driven by GPIO signals.


  • Dual H-Bridge capable of 1.5A RMS
  • Two quadrature encoder channels for motor feedback
  • Two JST 6-pin ports for connection to Digilent motor/gearbox
  • Over-current protection
  • Recommended 10.8 V max motor voltage
  • Logic input voltage range of 2.5 V to 5 V
  • Small PCB size for flexible designs 1.3in x 1.8in (3.3 cm x 4.6 cm)
  • Follows Digilent Pmod Interface Specification Type 5
