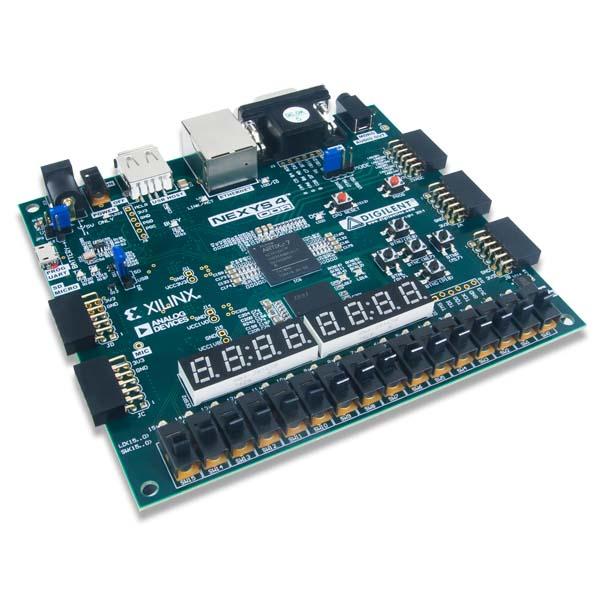

The Nexys 4 DDR(renamed as Nexys A7) is a drop-in replacement for our cellular RAM-based Nexys boards. Featuring the same Artix 7 field programmable gate array (FPGA) from Xilinx®, the Nexys 4 DDR is a ready-to-use digital circuit development platform designed to bring additional industry applications into the classroom environment.
The Artix-7 FPGA is optimized for high-performance logic, and offers more capacity, higher performance, and more resources than earlier designs. With its large, high-capacity FPGA (Xilinx part number XC7A100T-1CSG324C) and collection of USB, ethernet, and other ports, the Nexys 4 DDR can host designs ranging from introductory combinational circuits to powerful embedded processors.
Several built-in peripherals, including an accelerometer, a temperature sensor, MEMs digital microphone, speaker amplifier, and plenty of I/O devices allow the Nexys 4 DDR to be used for a wide range of designs without needing any other components.
