Pmod OLEDrgb: 96 x 64 RGB OLED Display with 16-bit color resolution

SKU: 01DIG410323

  • Sale
  • Regular price $19.75

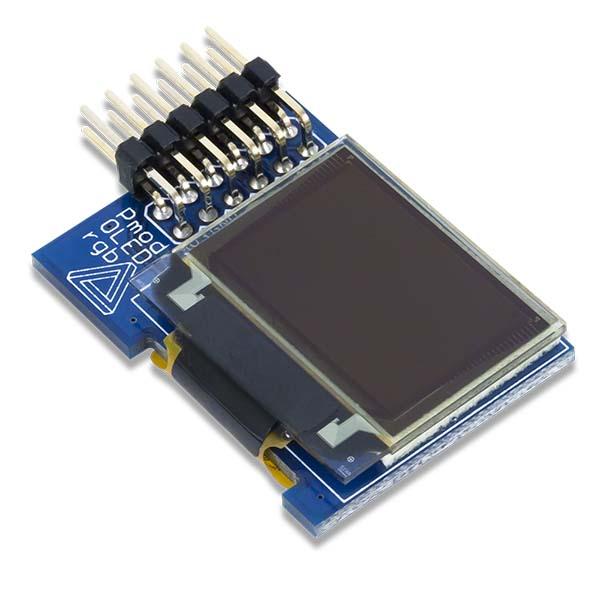

The Pmod OLEDrgb features a 96 x 64 pixel RGB OLED display that is capable of 16-bit color resolution. As a graphical display, users may show off graphs, full-color pictures, text, and anything else they want to see by communicating with it through a standard SPI interface. This module uses the ug-9664hddag01 display from Univision Technology Inc. and Solomon Systech SSD1331 display controller.

Features:

•96�64 pixel RGB OLED screen

•0.8� x 0.5� graphical display

•16-bit color resolution

•Two low-power display shutdown modes

•Small PCB size for flexible designs (1.4� x 1.0�)

•12-pin Pmod connector with SPI interface

•Library and example code available in resource center
