RSR Ammeter DC 0-50µA Meter Movement, 1µA Resolution

SKU: 01DK80

  • Sale
  • Regular price $8.25

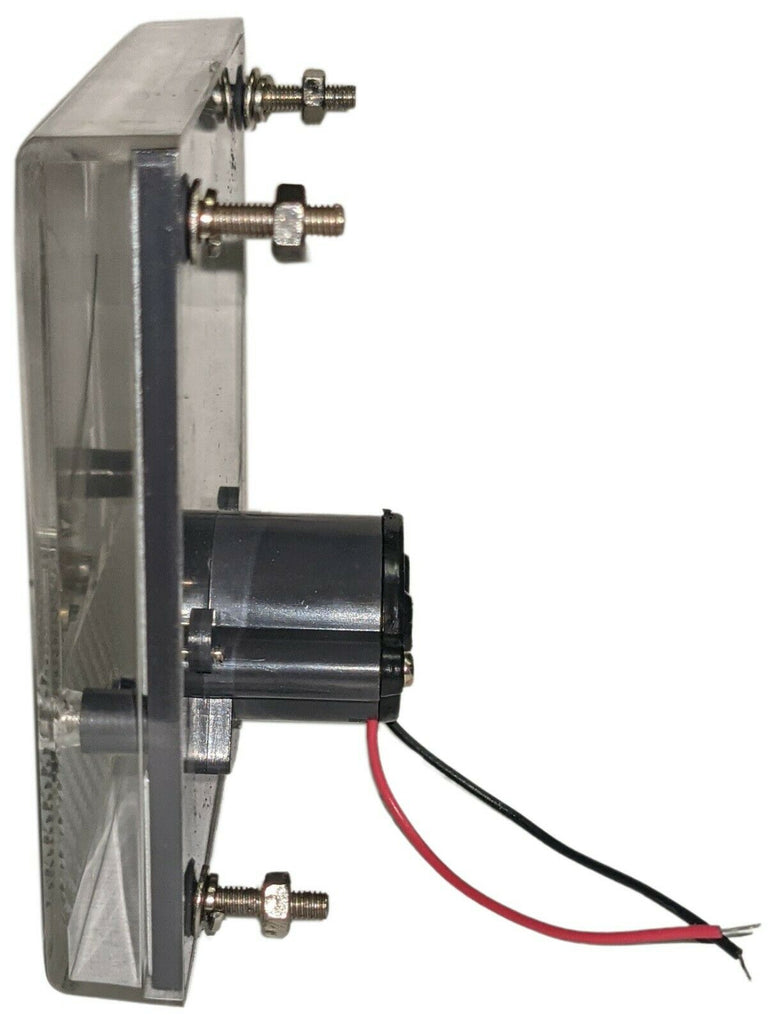

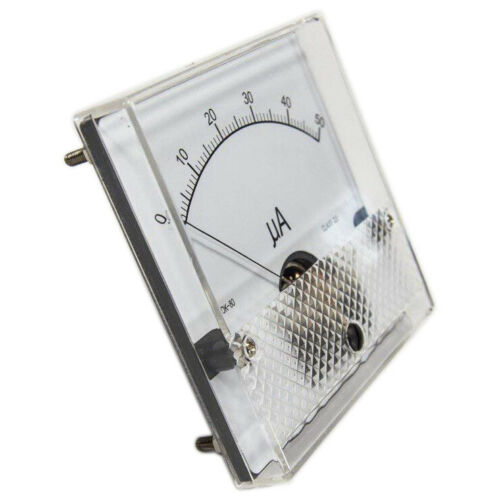

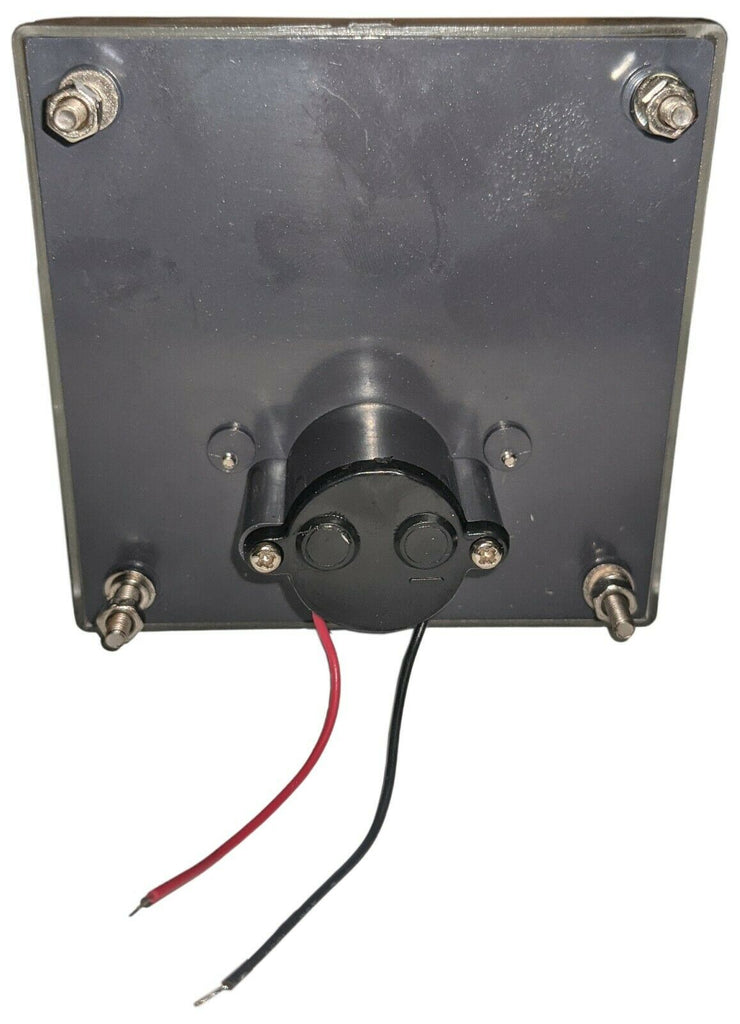

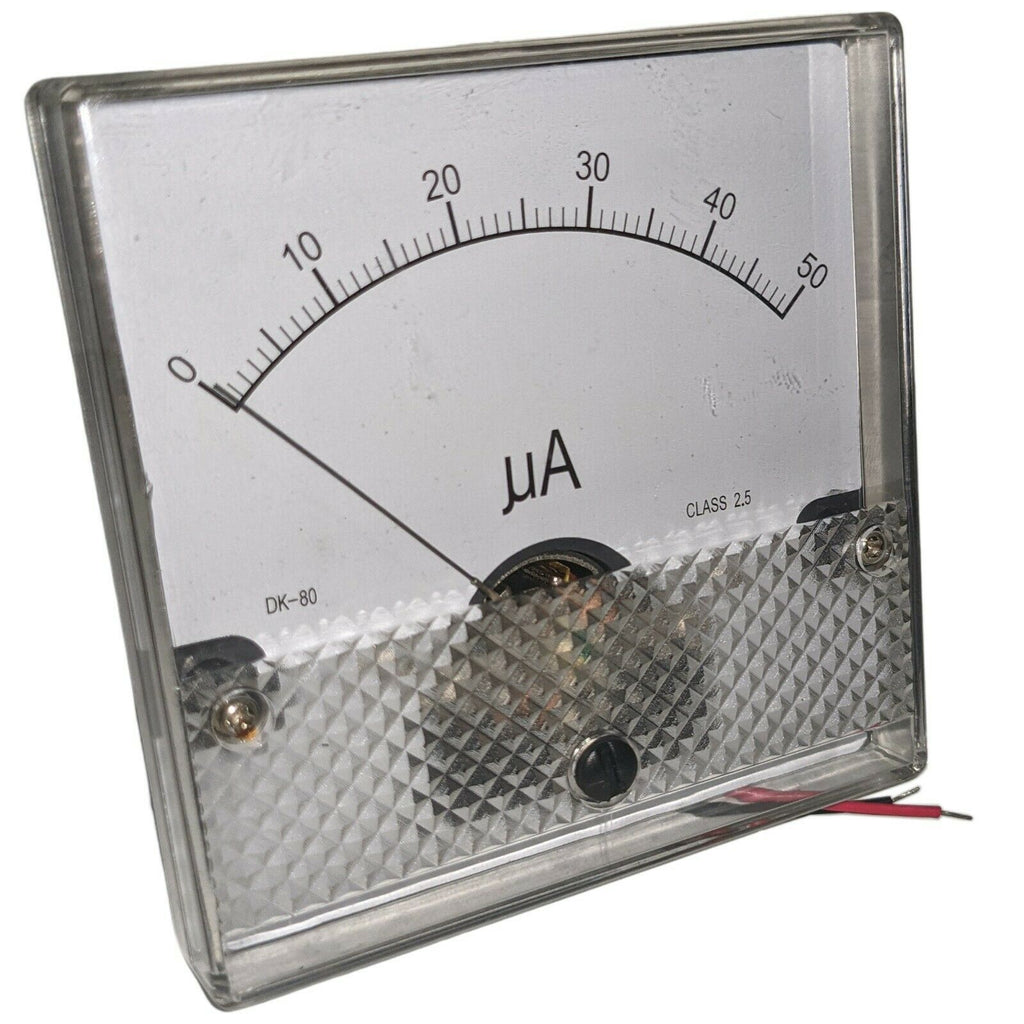

The DK-80 DC MicroAmmeter measures DC microampere current in a DC circuit. It has a range of DC 0-50uA. Features a clear and easy to read scale and a zero adjustment screw for fine tuning the dial. For current measurement, open the circuit and connect the instrument in series with the circuit being measured.

Specifications:

  • Measuring range: 0-50 µA D.C.
  • Resolution: 1µA
  • Accuracy: ±2.5% full scale
  • Potential drop: 95mv
  • Dimensions: 80 x 80 x 45mm
  • Weight: 73g
