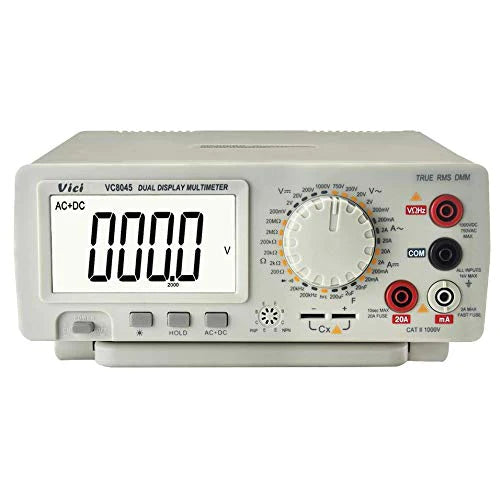

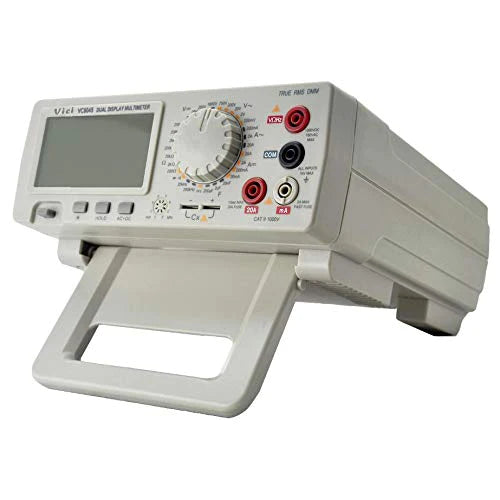

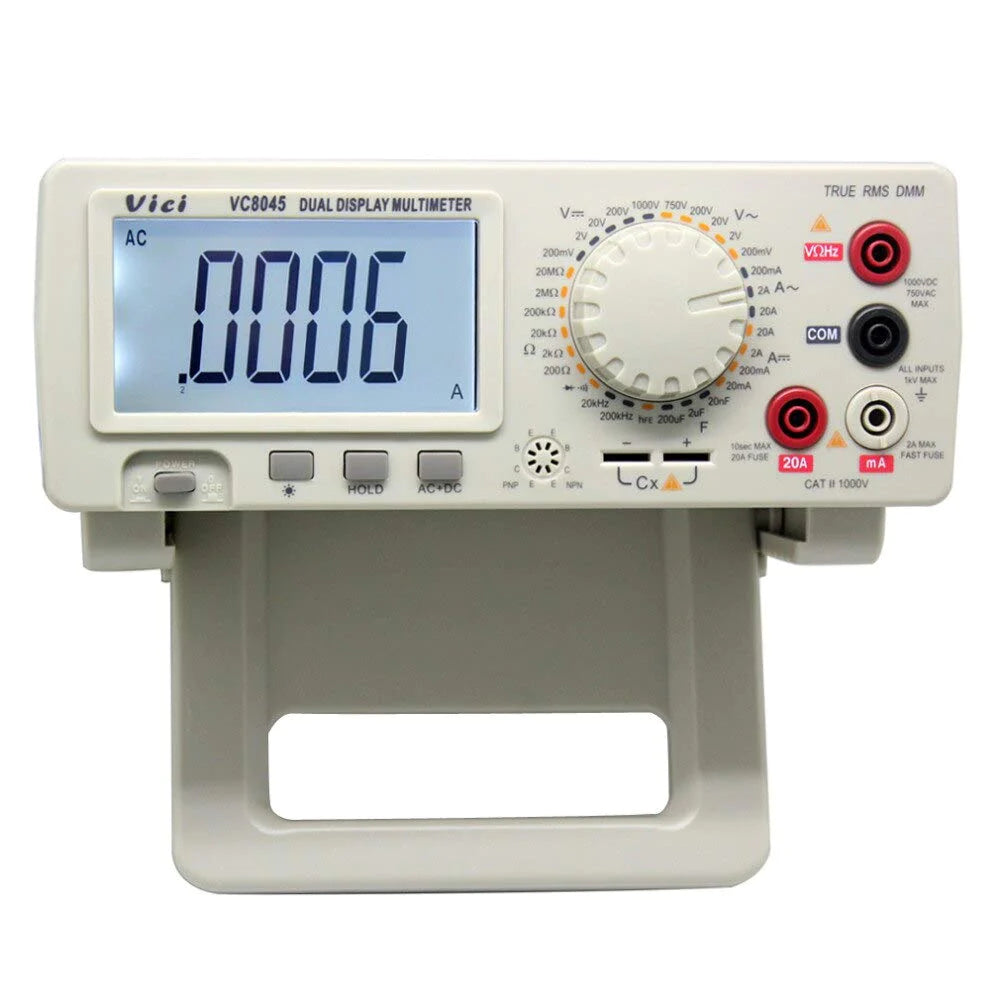

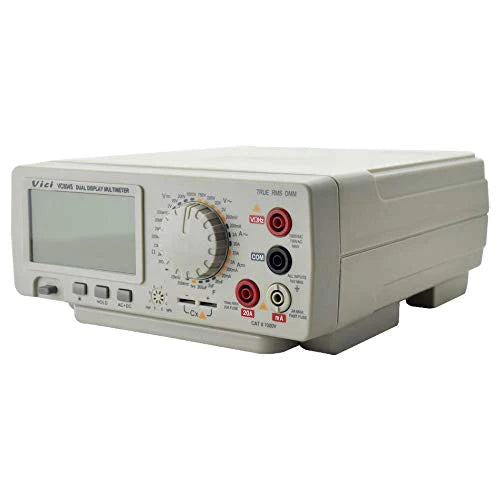

Bench type true RMS Digital Multimeter 4 1/2 True RMS DCV/ACV/DCA/ACA Resistance, Capacitance, Hz, hFE, Diodes tester
(Batteries not included)
Key Features
- 4 1/2 digit large LCD display with backlight;
- With the DCV,ACV,DCA,ACA,Ω,CAP,Hz,hFE,diode and continuity test function;
- Max. voltage measuring: DC 1000Vor AC value, resolution:10uV;
- Max. current measuring: 20A,polarity automatic switch ,data hold, backlight
- AC measuring adopt high accuracy true RMS, with bandwidth and AC+DC measuring

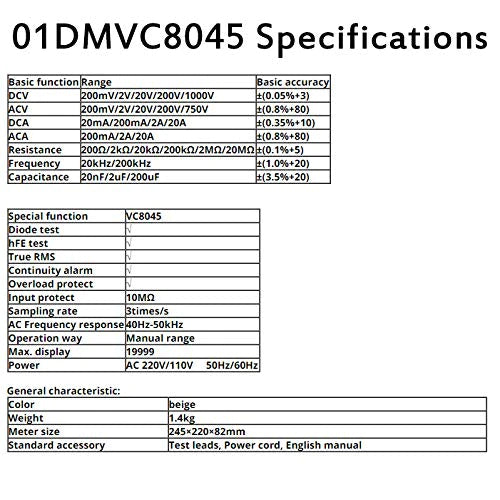

Specification
Basic Function |
Range |
Basic Accuracy |
DCV |
200mV/2V/20V/200V/1000V |
±(0.05%+3) |
ACV |
200mV/2V/20V/200V/750V |
±(0.8%+80) |
DCA |
20mA/200mA/2A/20A |
±(0.35%+10) |
ACA |
200mA/2A/20A |
±(0.8%+80) |
Resistance |
200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ |
±(0.1%+5) |
Frequency |
20kHz/200kHz |
±(1.0%+20) |
Capacitance |
20nF/2uF/200uF |
±(3.5%+20) |
Special Function |
VC8045 |
Diode test |
√ |
hFE test |
√ |
True RMS |
√ |
Continuity alarm |
√ |
Overload protect |
√ |
Input protect |
10MΩ |
Sampling rate |
3times/s |
AC Frequency response |
40Hz-50kHz |
Operation way |
Manual range |
Max. display |
19999 |
Power |
AC 220V/110V 50Hz/60Hz |
