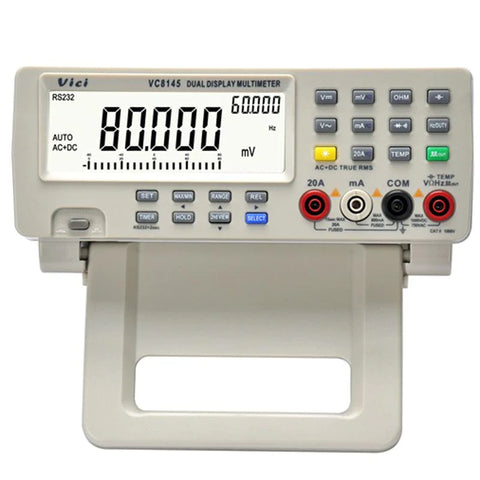

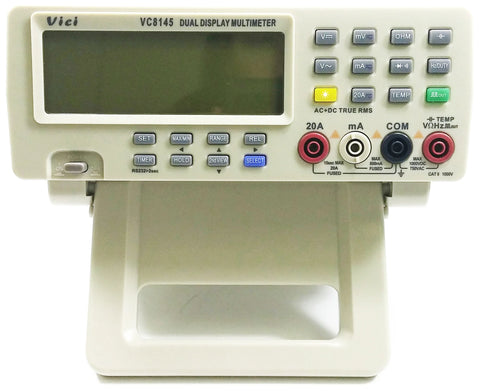

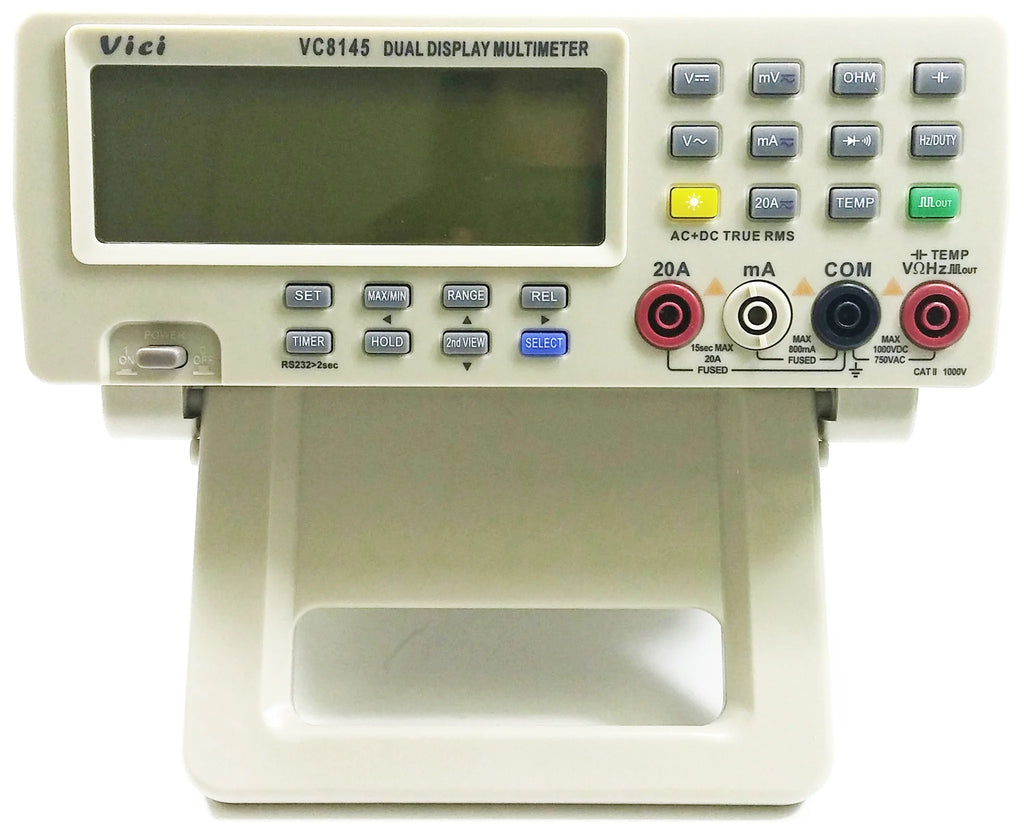

Bench Digital Multimeter with Function Generator and RS-232 Computer Interface

SKU: 01DMVC8145

  • Sale
  • Regular price $195.00

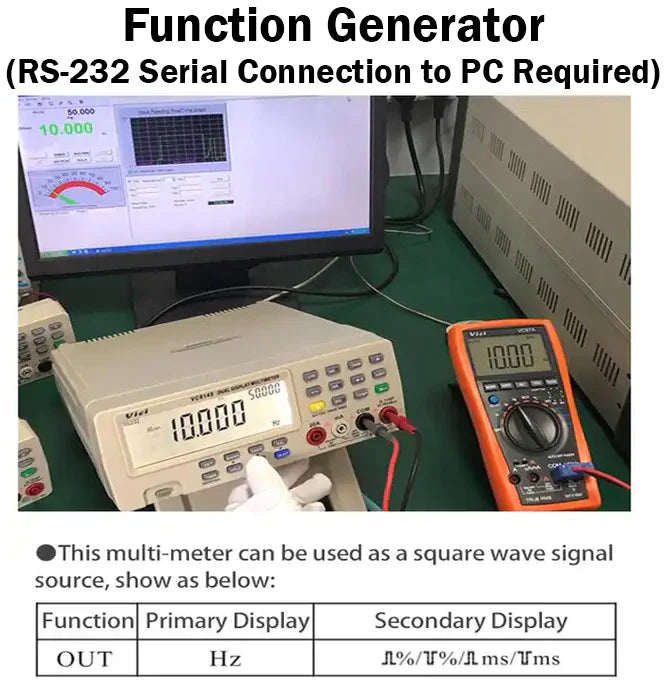

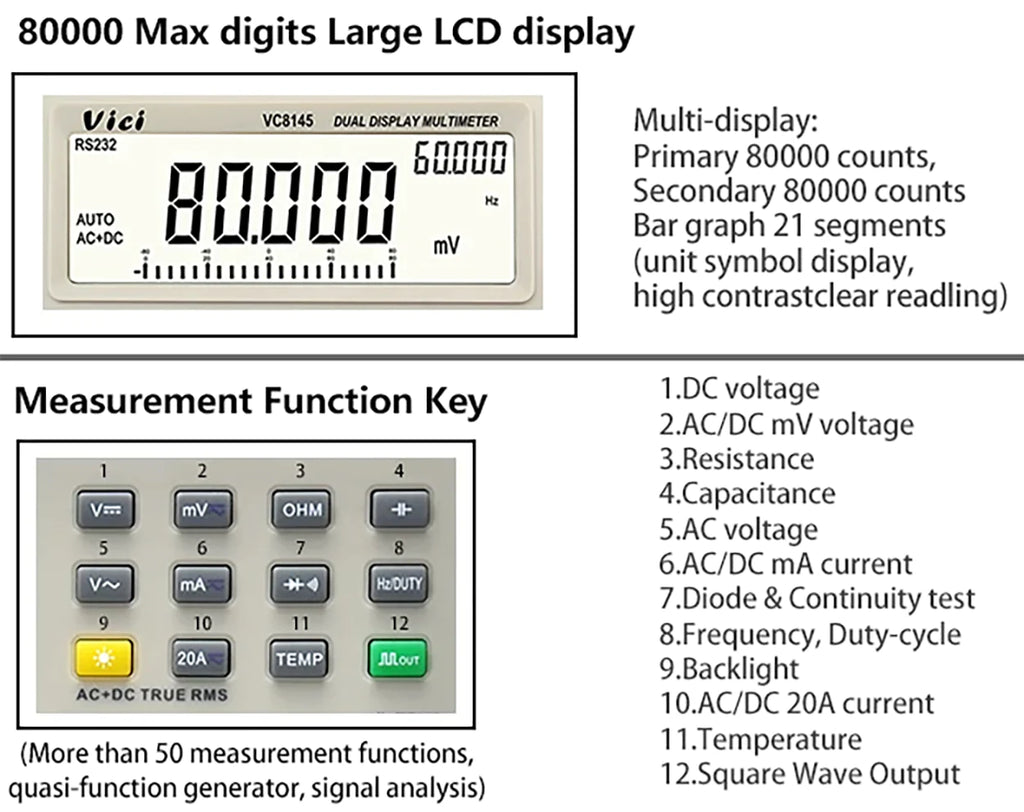

Bench Digital Multimeter with waveform generator and thermometer has a large LCD with high contrast. It also has a wide visual angle LCD display with a white backlight. It has a dual display: The main display 80000 counts, The secondary display 80000 counts, analog bar 21 segments, with unit & function symbols. It has 50 measurement functions including DCV, ACV, DCA, ACA, Ohm, CAP, Hz, TEMP, Diode, Continuity and others. The frequency range is up to 80MHz. The standard function generator has 18 waveforms, 1% to 99% Duty cycle, 1800 pcs wave output. The resistance measurement range: 0.01 Ohm - 80 MOhm. The capacitance measurement range is 10PF - 100uF. The temperature measurement Range: -58°F to 2502°F, - 50°C to 1372°C. Photoelectric isolated RS-232 computer interface. AC measurement - High accuracy RMS, Wide measurement AC+DC function. It also has auto data refresh hold.


Features:

  • Bench Digital Mulitmeter with waveform generator and thermometer

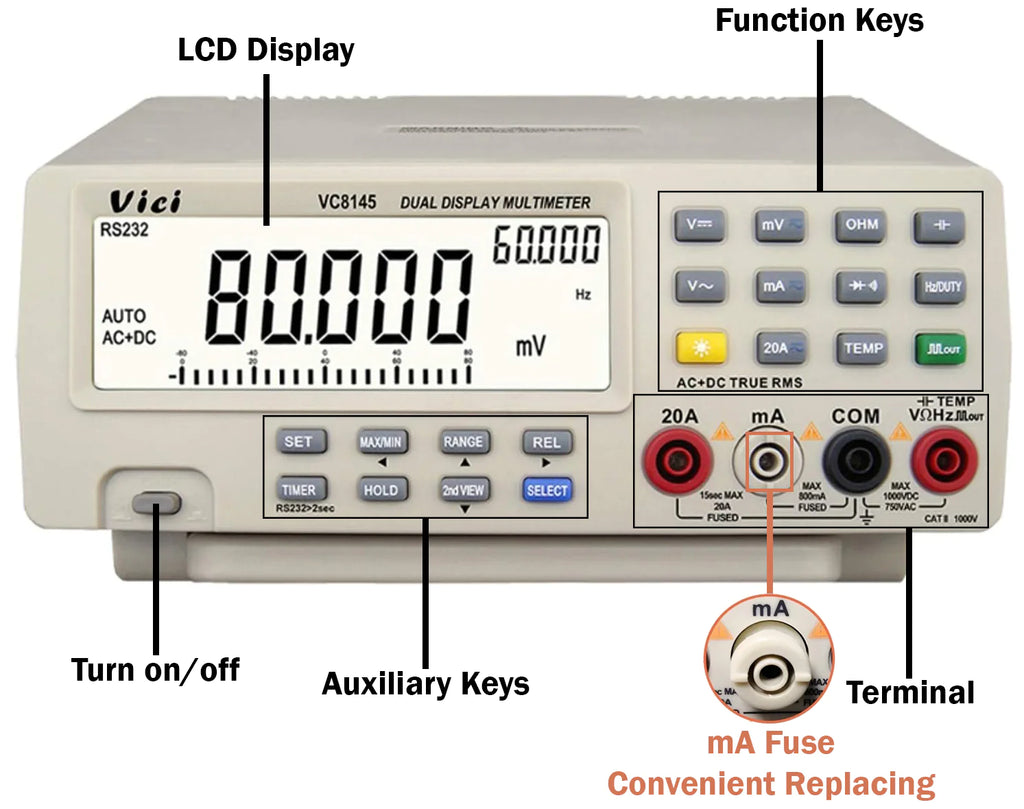

  • Large LCD, High contrast, Wide visual angle LCD display, white backlight
  • 50 measurement functions including DCV, ACV, DCA, ACA, Ohm, CAP, Hz, TEMP, Diode, Continuity and others
  • DCV Range: 80mV/800mV/8V/80V/800V/1000V, ACV Range: 80mV/800mV/8V/80V/750V, DCA Range: 80mA/800mA/8A/20A, ACA Range: 80mA/800mA/8A/20A

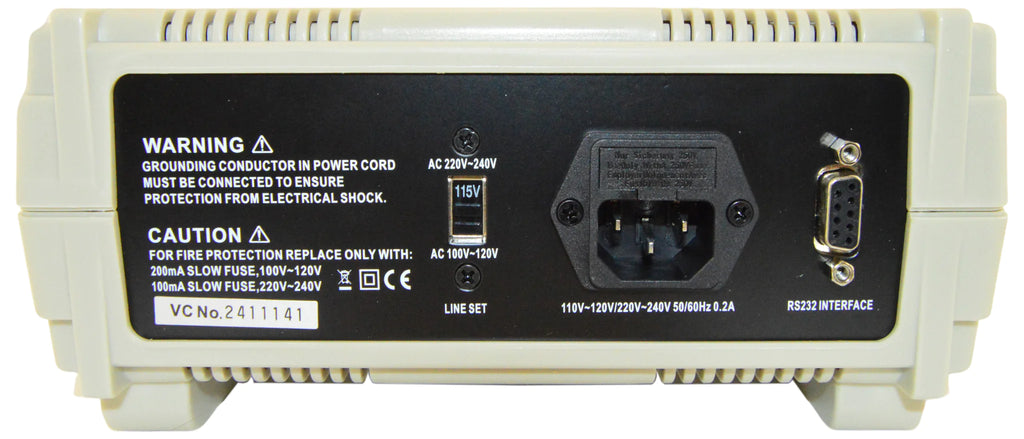

  • Photoelectric isolated RS-232 computer interface

Specifications:

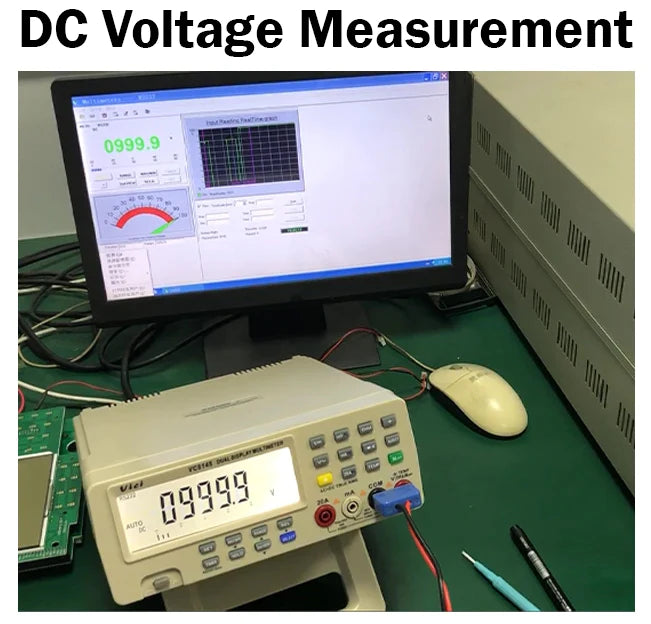

  • DCV Range: 80mV/800mV/8V/80V/800V/1000V
  • DCV Accuracy: ± (0.05%+5)
  • ACV Range: 80mV/800mV/8V/80V/750V
  • ACV Accuracy: ± (0.5%+50)
  • DCA Range: 80mA/800mA/8A/20A
  • DCA Accuracy: ± (0.2%+10)
  • ACA Range: 80mA/800mA/8A/20A
  • ACA Accuracy: ± (0.2%+10)
  • Resistance Range: 800Ω/8KΩ/800KΩ/8MΩ/80MΩ
  • Resistance Accuracy: ± (0.3%+10)
  • Frequency Range: 0.5Hz ~ 6Mhz
  • Frequency Accuracy: ± (0.05%+2)
  • Capacitance Range: 1nF/10nF/100nF/1uF/10uF/100uF
  • Capacitance Accuracy: ± (2.55%+50)
  • Temperature Range: -50°C~1372°C / -58°F~2502°F
  • Temperature Accuracy: ± (1.5%+10)
  • Quadrate Wave Range: 3V / 0.5Hz~5kHz / 1%~99%
  • Quadrate Wave Accuracy: ± 0.05%
  • Input impedance: 10
  • Sampling frequency: 4 times / sec. Analog bar 40 times / sec.
  • AC frequency response: 40Hz-50kHz
  • Operation way: Auto range
