Electronix Express

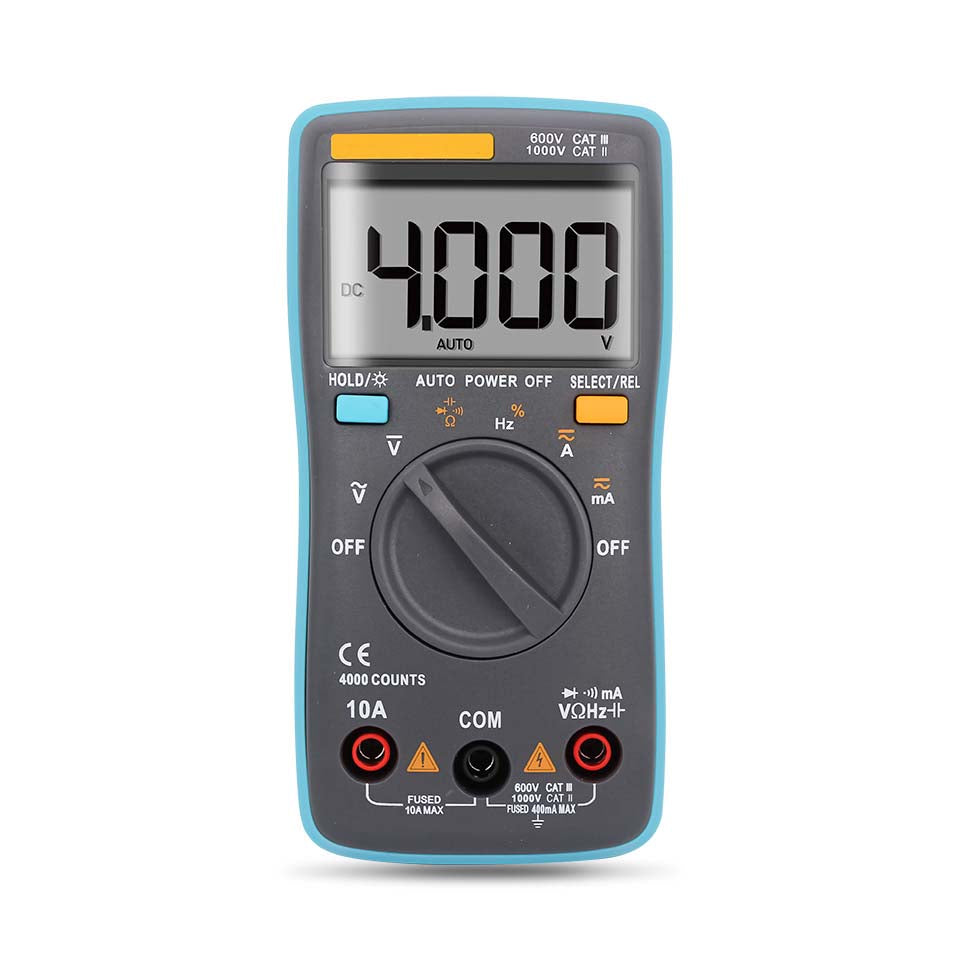

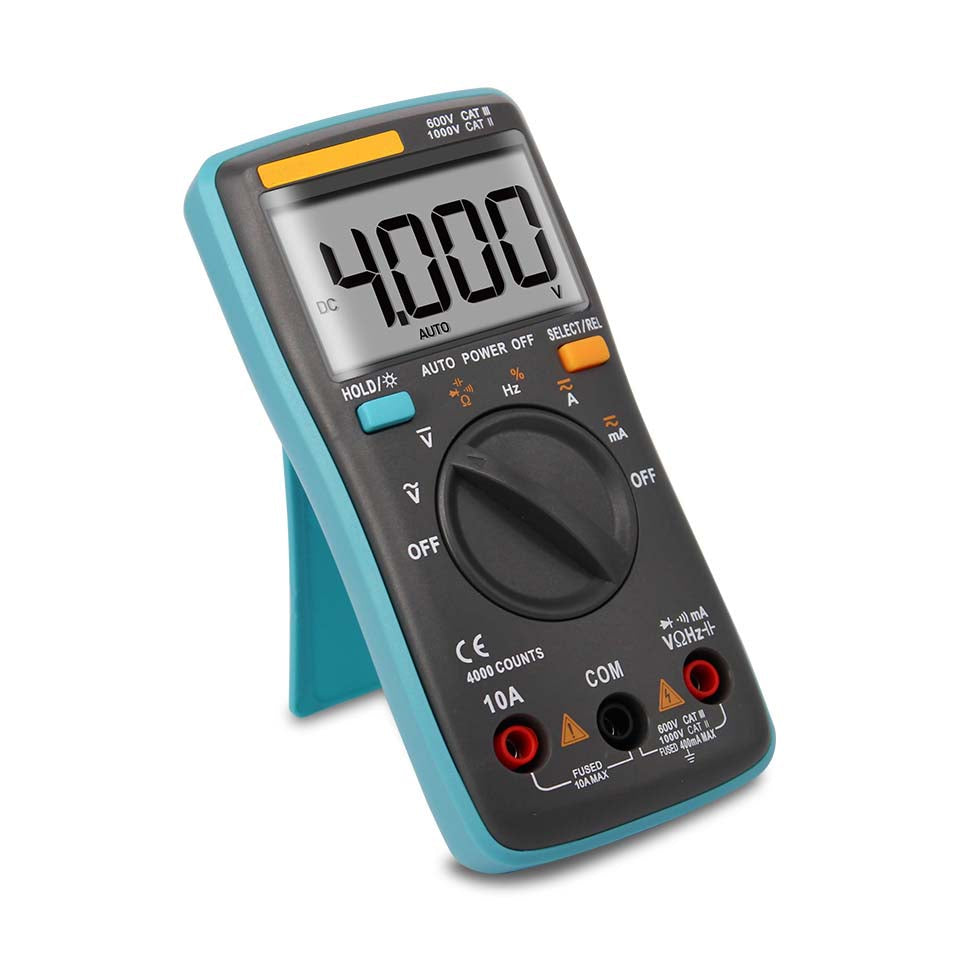

Auto-ranging Digital Multimeter, 4000 Counts

SKU: 01DMZT100

  • Sale
  • Regular price $18.95


This is a Auto-ranging digital multimeter using double-integral style A/D transform as the core. It can be used to measure AC/DC Voltage, AC/DC Current, resistance, capacitance, diode and continuity testing ,temperature, frequency & more.

Key Features & Specs

  • LCD display
  • Max display:4000 counts
  • Polarity identification
  • Measurement mode: Double-integral style A/D transform
  • Sample  Rate: 3 times per second
  • Over range indication: OL
  • Low voltage indication
  • Working Environment: 0-40 degrees,relative humidity <80%
  • Size:65x130x32 mm
  • Auto Range
  • Resistance capacitance frequency file high voltage 250VRMS
  • Sampling rate: about 3 times per second
  • Backlight display
  • Data retention
  • Polarity automatic recognition
  • Low voltage display
  • 10A large current measurement, mA level small current measurement
  • Automatic shutdown
  • Main measurement: AC / DC voltage, AC / DC current, resistance, capacitance,
  • Diode / off measurement, frequency and duty ratio measurement.
  • DC volts: 400mV/2V/40V(±0.5%+4), 1000V(±0.8%+4)
  • AC volts: 400mV/20V/400V(±1.2%+4), 750V(±1.5%+4)
  • DC current: 40mA-10A(±1.5%+4)
  • AC current: 40mA-10A(±2.0%+4)
  • Resistance: 400Ω-4M(±0.8%+4), 40MΩ(±2.0%+4)
  • Capacitance: 4nF±(5.0%+20), 40nF±(2.5%+4), 400nF-200uF±(3.5%+4)
