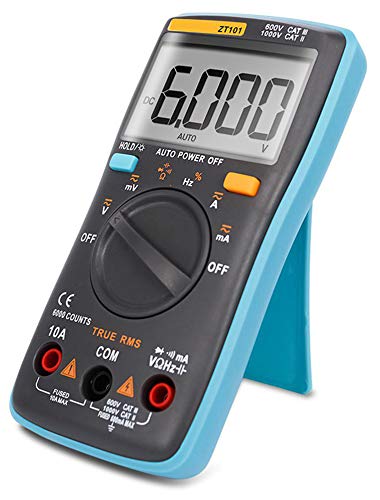

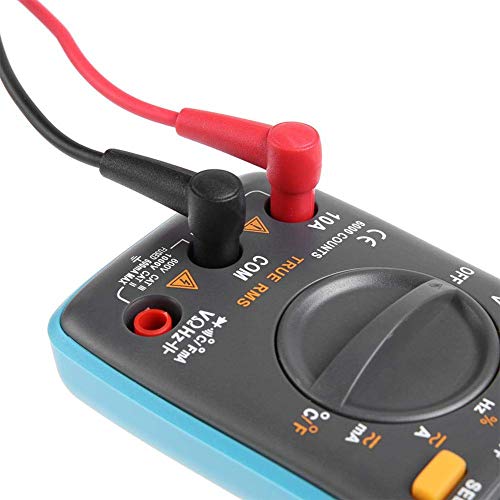

This is a Auto-ranging digital Multimeter using double-integral style A/D transform as the core.
It can be used to measure Temperature, AC/DC Voltage, AC/DC Current, Resistance, Capacitance, Diode and Continuity testing, Frequency& more.

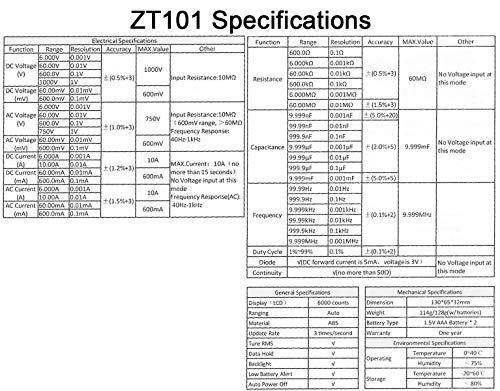

Key Features & Specs
- Auto Range
- True RMS measurement
- Resistance capacitance frequency file high voltage 550V protection
- Large screen display, the maximum of 6000 words
- Sampling rate: about 3 times per second
- Temperature measuring

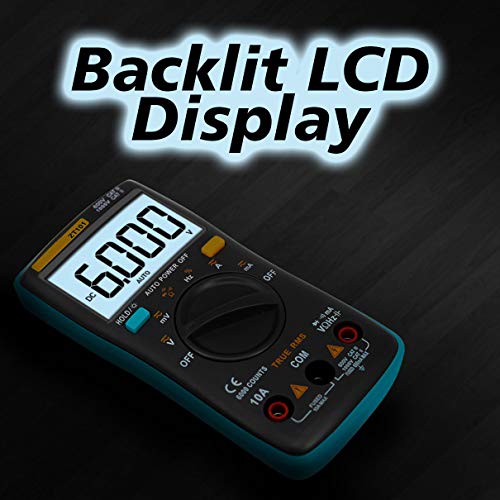

- Backlight display
- Data retention
- Polarity automatic recognition
- Low voltage display
- 10A large current measurement,mA level small current measurement
- Automatic shutdown
- Main measurement: AC / DC voltage, AC / DC current, resistance, capacitance
- Diode / off measurement, frequency and duty ratio measurement
- Frequency measurement range: 10MHz to 1Hz
- Capacitance measurement range: 6000uF to 10pF
- AC voltage measurement range: 750V to 0.1mV
- DC voltage measurement range: 1000V to 0.1mV
- AC current measurement range: 10A to 0.1uA
- DC current measurement range: 10A to 0.1uA
- Resistance measurement range: 0.1 to 60MΩ
- Width ratio measurement range: 1% to 99%
- Over range indication: OL
- Working Environment: 0-40 degrees, Relative humidity: <80%
