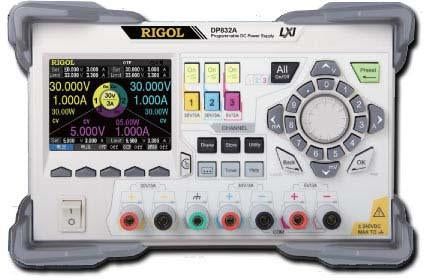

Rigol DP832A 195 Watt Triple Output High Resolution Power Supply

SKU: 01DP832A

  • Sale
  • Regular price $672.00


The DP800 Series Power Supplies combine the ability to source, analyze, and coordinate over time in a powerful new package. The DP832A has two 30 V channels and one 5 V channel all capable of 3 Amps. With one channel isolated users can reconfigure instruments into any number of systems or applications. Built in V, A, and W measurements make power monitoring easy, but additional wave tracking, timing, and analysis features means there are even more ways to use the supplies. New digital triggering between instruments also makes it possible to reliably combine and connect supplies together. Intuitive to use for everything from education labs to the R & D bench, the DP800 family of power supplies provide incredible value for any application.

  • 3 Outputs; total power up to 195W
  • Low Ripple Noise <350 uVrms/2mVpp
  • Fast transient response time: <50 us
  • Channel isolation: CH1 || CH2,CH3
  • OVP/OCP/OTP protection functions
  • Built in V, A, W measurements and waveform display
  • Support for output Delay, Analysis, Monitor, and Preset functions
  • 3.5 inch TFT Display
  • Connectivity including USB Host & Device, LAN, and Digital IO
