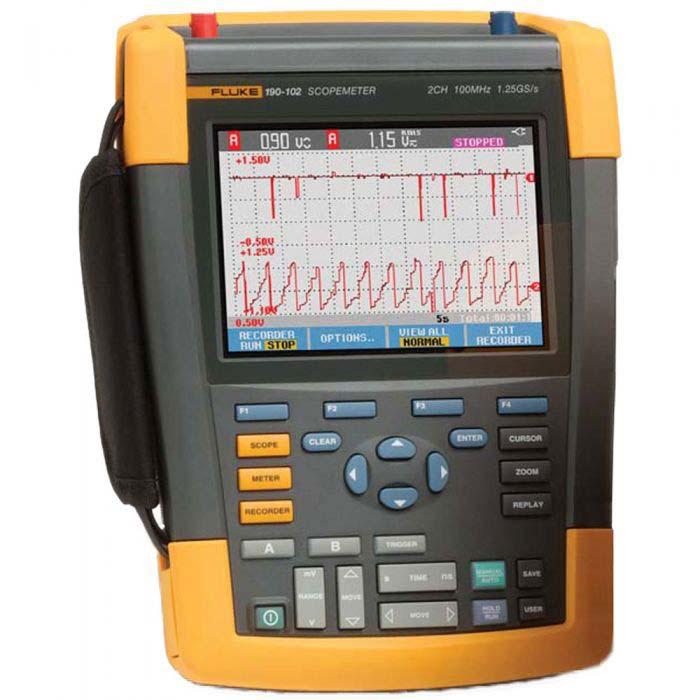

Fluke 190-102 ScopeMeter Test Tool

SKU: 01FLK190-102

  • Sale
  • Regular price $3,849.00


As the first two-channel portable scope safety rated CAT III 1000V / CAT IV 600V, the Fluke ScopeMeter® 190-102 combines an unprecedented level of performance, ruggedness, and portability with 100MHz bandwidth and real-time sampling rates up to 1.25 GS/s and 200 ps resolution to capture noise and other disturbances. This model feature deep memory up to 10,000 samples per channel; so you can examine very small parts of the waveform in detail, and it is IP-51 rated to withstand dust, drips, humidity, and wide temperature variations. Fluke ScopeMeter® test tools are hand-held battery operated, designed to meet the demands of field service professionals.

Features:

  • Two electrically isolated inputs
  • CAT III 1000V/CAT IV 600V safety rated
  • Bandwidth: 100 MHz model
  • Maximum real-time sample rate (sampled simultaneously): 1.25 GS/s for each channel
  • Deep memory: 10,000 samples per channel waveform capture; zoom in on details
  • Dedicated 5000-count digital multimeter
  • Connect-and-View continuous auto-trigger, single shot, pulse width, and video triggering
  • ScopeRecord roll mode, capture waveform sample data for up to 48 hours
  • TrendPlot, trend measurement readings for up to 22 days
  • Advanced automatic measurements, power (Vpwm, VA, W, PF) and time (mAs, V/s, w/s)
  • IP-51 rated for dust and drip proof to withstand harsh environments
  • Isolated USB ports for memory devices and PC connectivity
  • Li-Ion battery for extended operating timespan: Up to 4 hours operation
  • Charge spare battery using optional external battery charger
  • Easy-access battery door makes it easy to swap batteries
  • Handy slot to tether and lock down oscilloscope while unattended using standard Kensington lock
