Global Specialties

LCR-600: 100 kHz High Precision LCR Meter

SKU: 01GSLCR600

  • Sale
  • Regular price $1,160.00

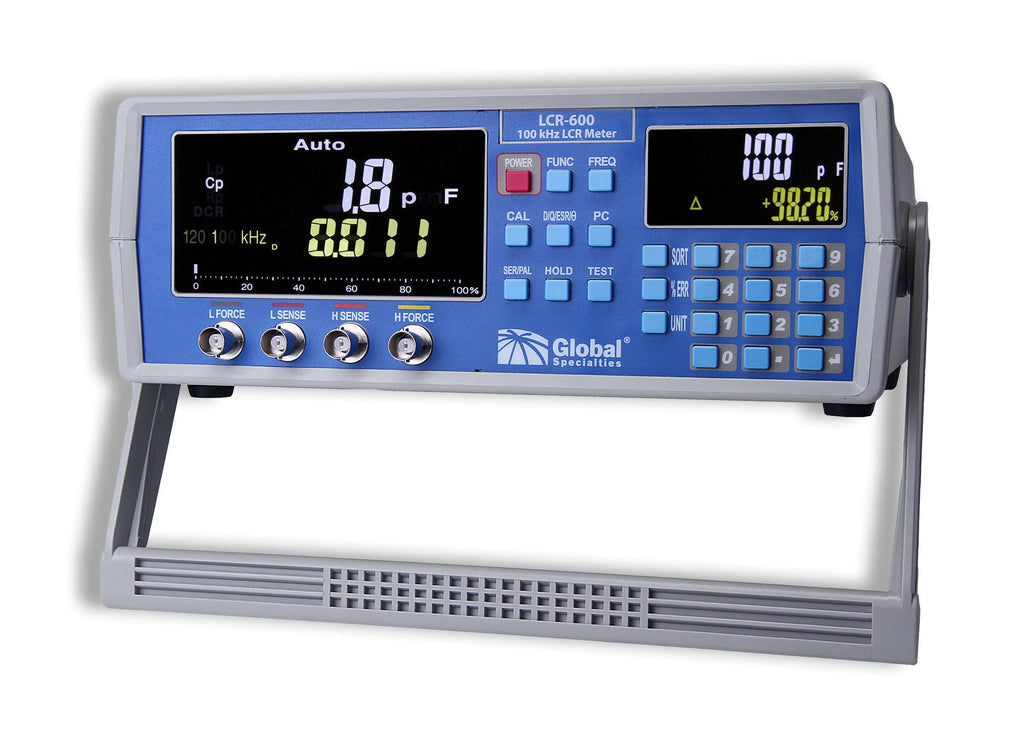

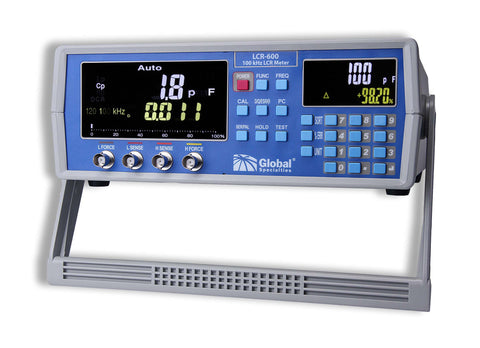

The LCR-600 is a high precision test instrument used for measuring the inductance (L), capacitance (C), and resistance (R) of an electrical component. The LCR-600 has an operational frequency range of 100 Hz to 100 kHz and a basic measurement accuracy of 0.3%. There is a dual LCD display, measurement voltage fixed at 0.6 V, auto-detect function, and open-circuit /short-circuit compensation. Use the meter to check ESR values of capacitors and inductors, sort and select components, identify unknown components, and measure general LCR values.



Features:



  • Measures: Ls, Lp, Cs, Cp, Rs, Rp, D, Q,
  • ESR, EPR, Z, , DCR
  • Frequency range: 100 Hz to 100 kHz
  • Auto range
  • Auto detect
  • Sorting function
  • Open circuit compensation
  • Short circuit compensation
  • Basic accuracy of 0.3%
  • Two displays
  • Display hold
