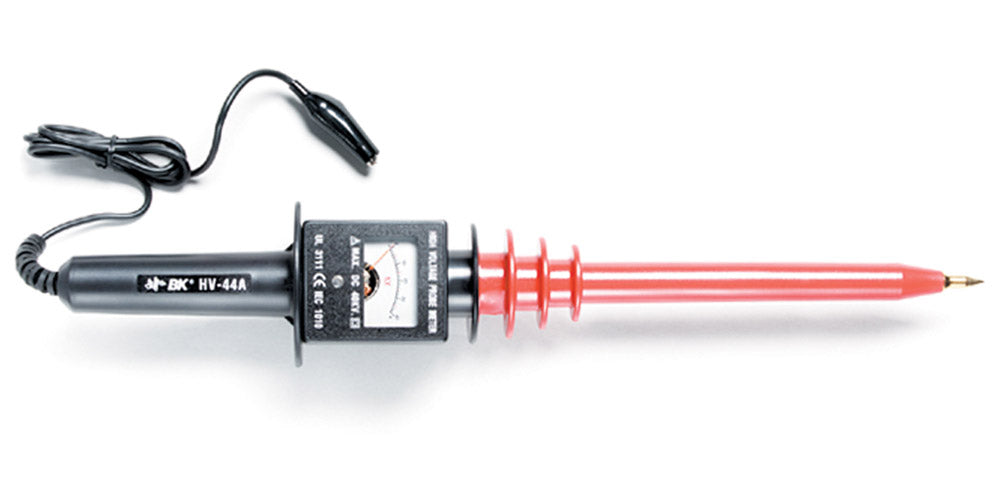

The HV-44A is a self-contained instrument that measures high DC voltages up to +40KV. This probe is typically used to measure high voltages in TV sets, power supplies, laboratories and for general high voltage commercial applications.
- Voltage range: 0 to +40KV DC
- Input Impedance: 600MΩ, nominal
- Accuracy: ±3% of full scale.
- Calibration: Internal, factory calibrated at 25KV
- Size: 16.5 x 2.125 x 2" with a 34" long ground cord (419 x 54 x 50mm with a 86.4cm long ground cord) Probe Tips:
- Two interchangeable tips; one round needle type, one special flat spring type for easy access to CRT anode.
