Dual Channel USB Digital Oscilloscope with Spectrum Analyzer/DDS/Sweep/Data Recorder

SKU: 01IDS205B

  • Sale
  • Regular price $95.00


The ISDS205B oscilloscope features bandwidth of 16M, 48M sampling rate, 2 channels, alternating support X, Y and XY alternating pattern, spectrum analyzer, data recorder, and has a 1KHz reference square wave output interface. It supports DDS signal source and scanner functions. The DDS has 5 kinds of waveform output and the sine wave can output up to 20M.

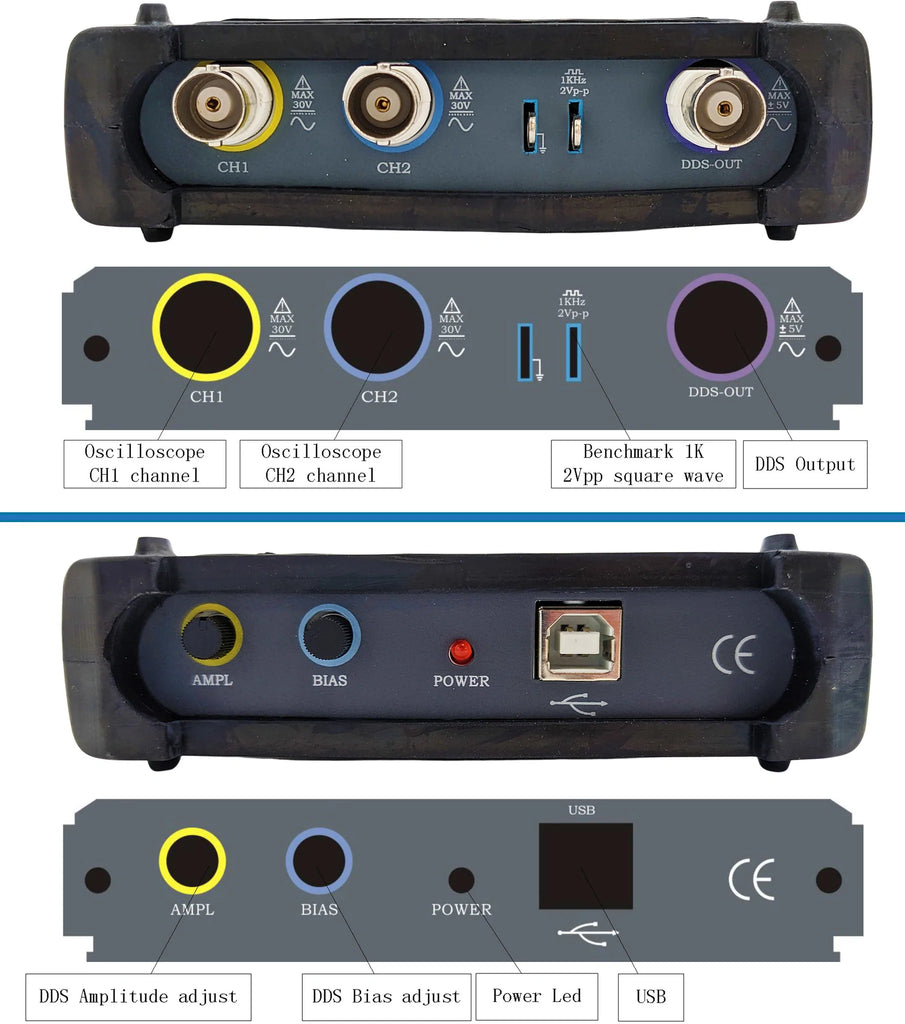

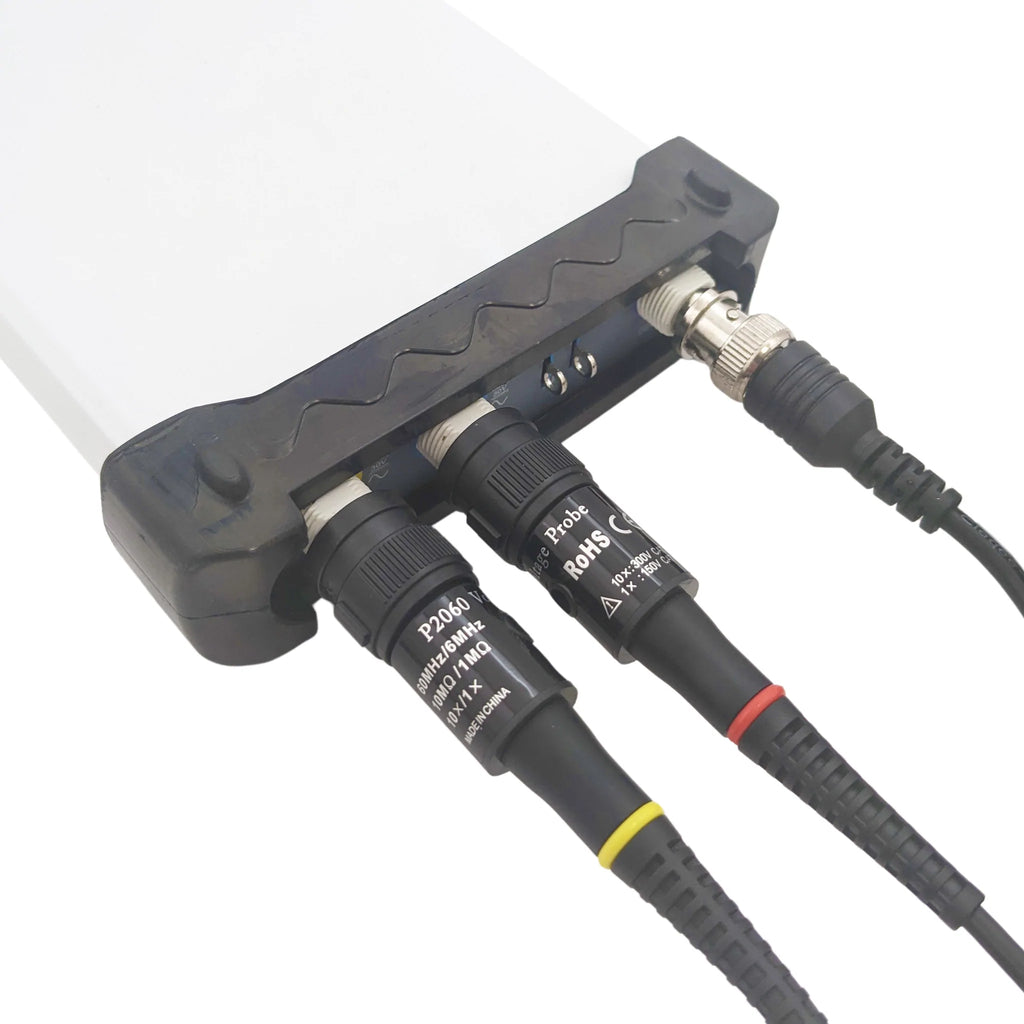

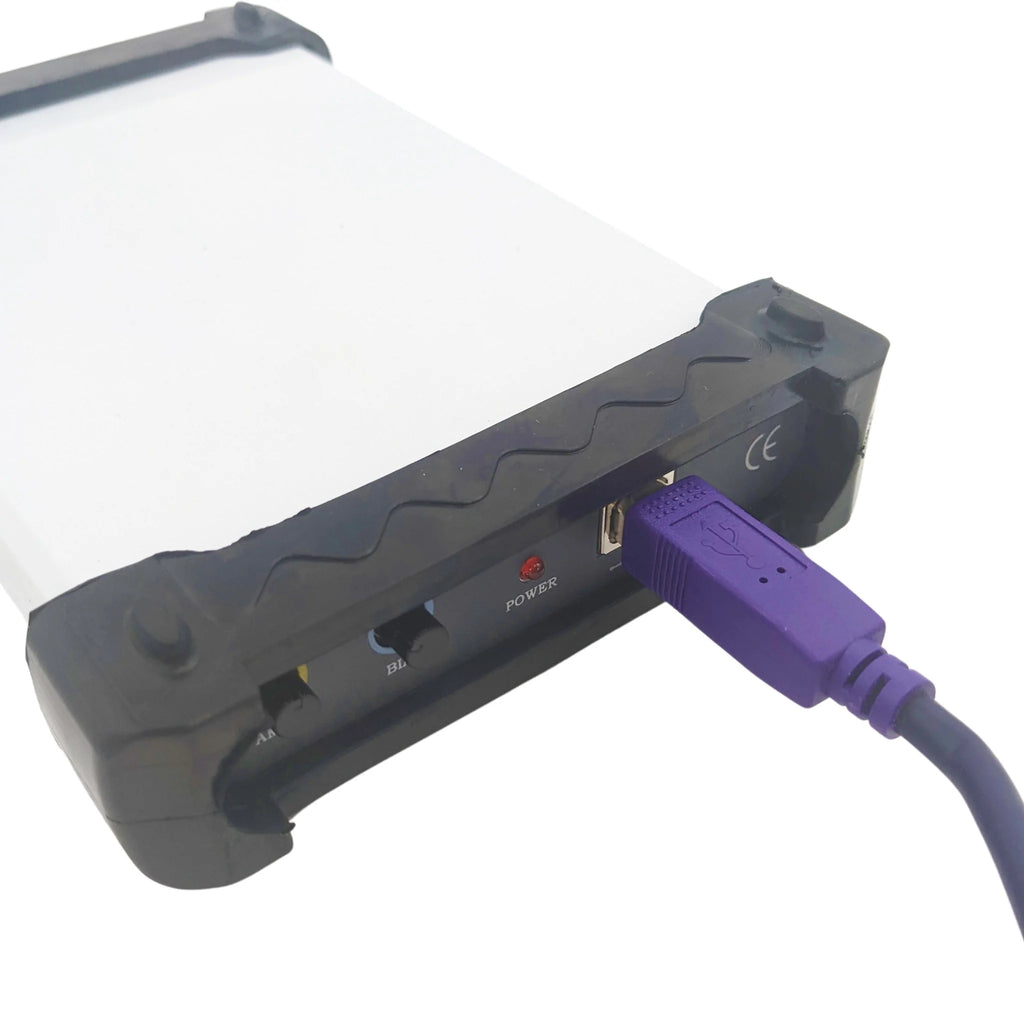

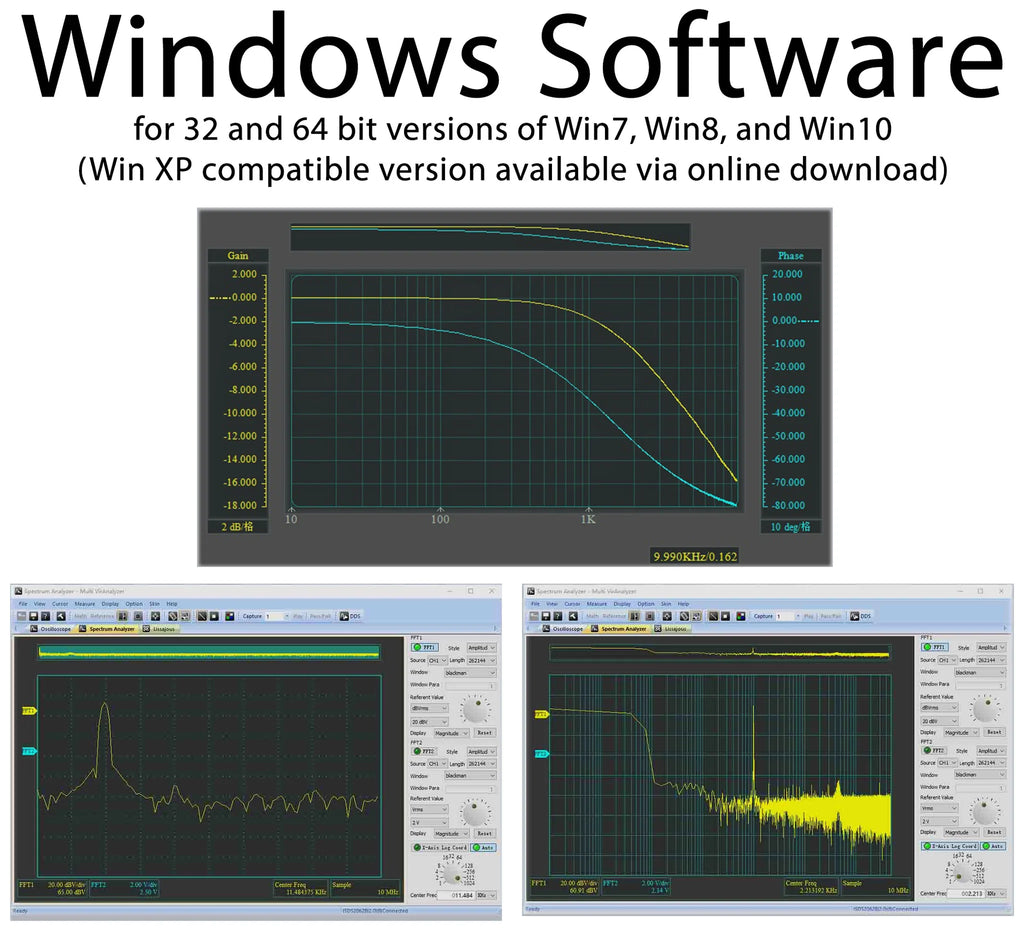

The oscilloscope is a portable size, lightweight, and easy to carry. It uses standard BNC connectors for use with the two included 1X/10X probes. The included USB cable is both for data and power. A digital copy of the user manual and the Multi VirAnalyzer software for Windows is included on the mini CD (also available online). Once connected your computer, the signal can be viewed on your monitor for clear measurement. The software provides an intuitive interface for operation of the oscilloscope panel.


Specifications:

  • Channels: 2
  • Impedance: 1MΩ 25pF
  • Coupling: AC/DC
  • Vertical resolution: 8-Bit
  • Gain range: -6 to 6 V (probe X1), -60 to 60 V (probe X10)
  • Vertical accuracy: ±3%
  • Time base range: 1 ns – 20 s
  • Input protection: Diode, 50Vpk
  • Autoset: Yes (10 Hz to 20 MHz)
  • Trigger mode: Auto, normal, and signal
  • Trigger type: No, rising edge, falling edge, rising edge or falling edge
  • Trigger level: Yes
  • Trigger source: CH1, CH2
  • Buffer size: 1 MB/CH
  • Bandwidth: 20 MHz
  • Max sample: 48 MS/s
  • Vertical mode: CH1, CH2, ADD, SUB, MUL
  • Display mode: X, Y-T, X-Y
  • Measurements: Yes
  • Wave save: Osc (Private), Excel and Bmp

Spectrum Analyzer:

  • Channels: 2
  • Bandwidth: 20 MHz
  • Algorithm: FFT (18 windows), correlation
  • FFT points: 8 - 1048576/CHN
  • FFT measure: Harmonic (1-7), SNR, SINAD, ENOB, THD, SFDR
  • Filter processing: FIR filter supports arbitrary range of frequency sampling method and rectangle, bartlett, triangular, cosine, hanning, bartlett_hanning, hamming, blackman, blackman_Harris, tukey, Nuttall, FlatTop, Bohman, Parzen, Lanczos, Kaiser, gaussand dolph_chebyshev, window method design
  • IIR filter support "Butterworth", "Chebyshev I", "Chebyshev II", "Elliptic" type of filter design.

Data Recorder:

  • Channel: 2
  • Impedance: 1MΩ 25pF
  • Coupling: AC/DC
  • Vertical resolution: 8-Bit
  • Gain range: -6 to 6 V (probe X1), -60 to 60 V (probe X10)
  • Sample 1 channel: 1K - 24M Hz
  • 2 channel: 1K - 16M Hz
  • Save file: Maximum 4G, recording time associated with the sampling rate

DDS:

  • Wave: Sine, Square (Duty cycle variable), Triangle, Up Sawtooth, Down Sawtooth

Included accessories:

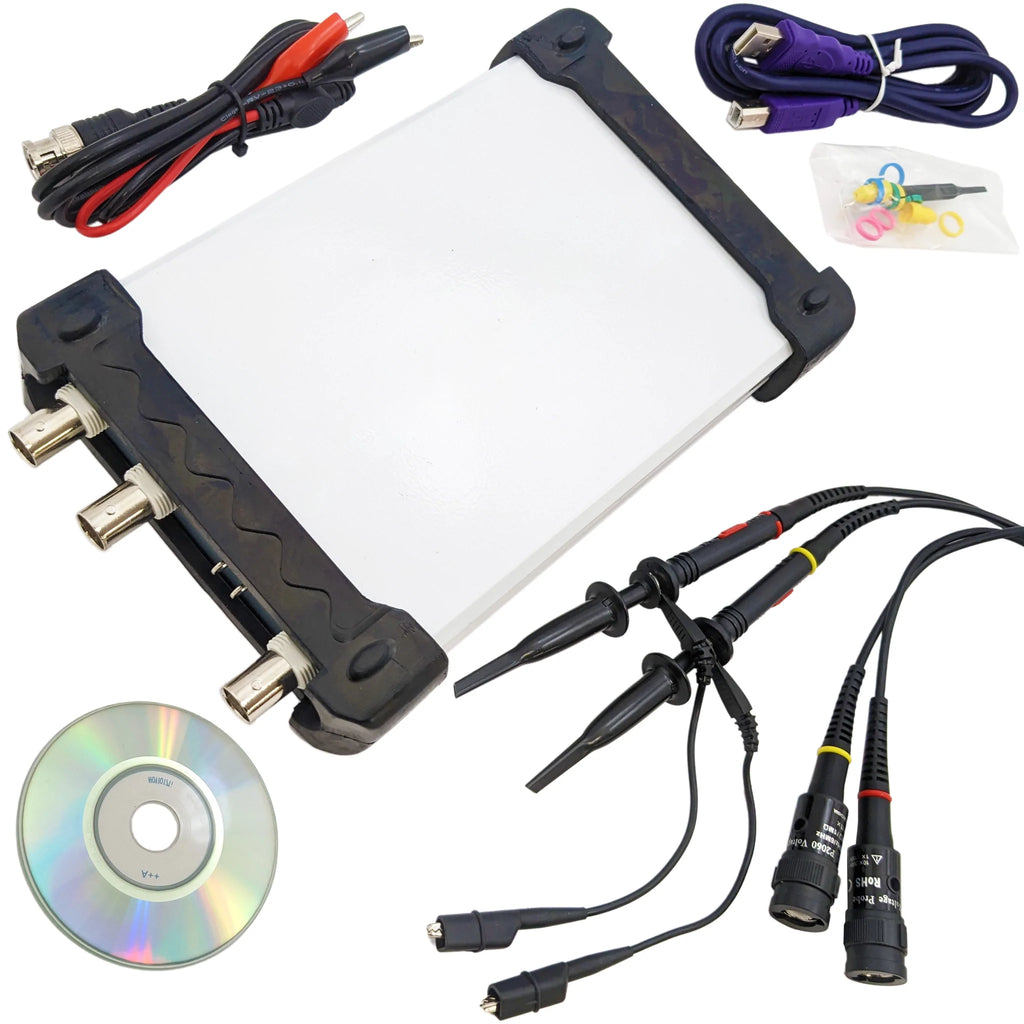

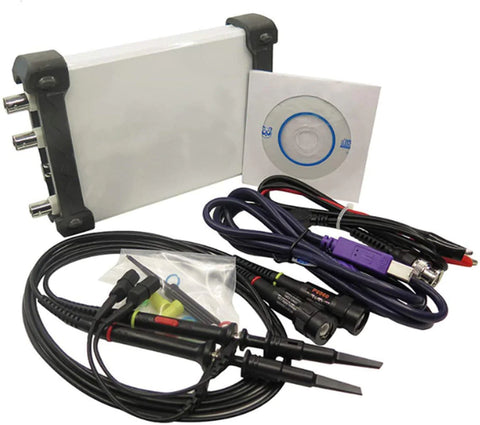

  • Two 1X/10X probes, BNC to alligator clips cable, USB cable, software CD, two retractable hook tips, two ground alligator clips, 1 adjustment tool (to adjust the probe compensation), two ground springs, two insulation caps, and eight marker rings.
