Rigol 600 MHz 4 Channel Mixed Signal Oscilloscope Model MSO8064

SKU: 01MSO8064

  • Sale
  • Regular price $7,999.00

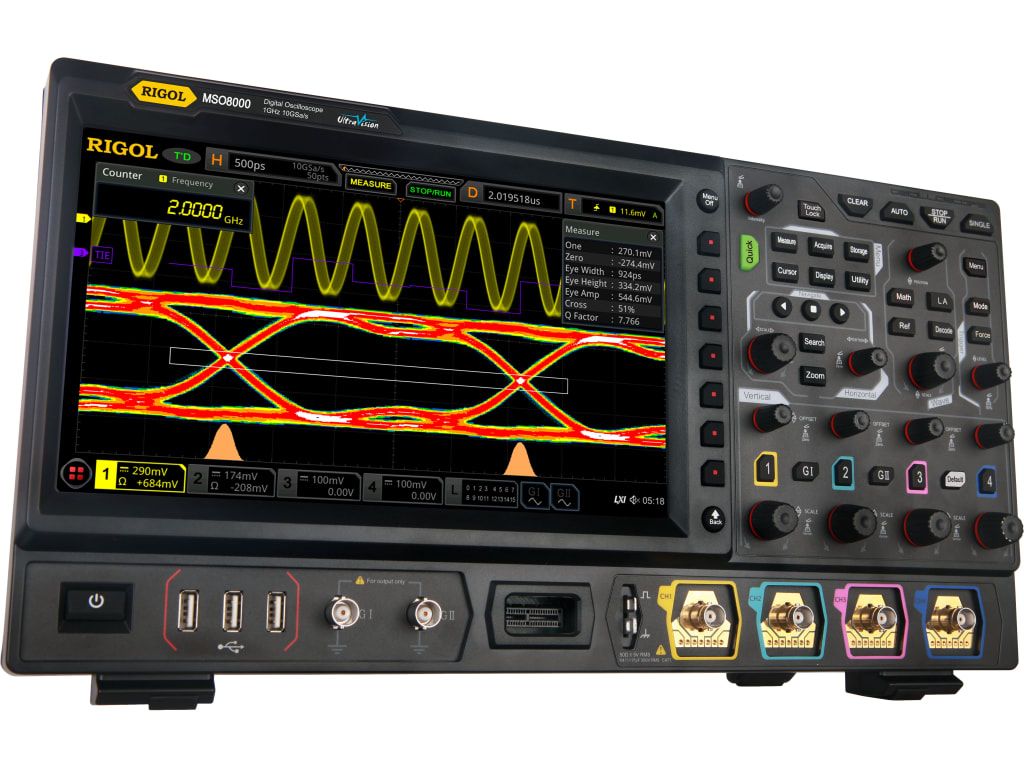

The advanced MSO8064 600MHz 4-channel Digital Oscilloscope offers 10GSa/sec maximum sample rate, and 500 Mpts of memory depth. The 10.1” 1024 x 600 capacitive multi-touch color LCD screen also offers 256-level intensity grading and waveform refresh rate of up to 600,000wfm/sec. The enhanced FFT capability offers real-time spectrum analysis of up to 1Mpts of waveform data.  The MSO8000 Series Next Generation User Interface provides users with five distinct ways to interact with the instrument: LCD Touch, traditional button and knob, mouse/monitor, PC control and remote web operation.

An optional 16-channel logic analyzer interface is provided to add digital debug capabilities. A two-channel 25MHz arbitrary waveform generator is also available.

The MSO8000 Series Oscilloscopes combine best in class sampling and memory depth with our modern, flexible User Interface enabled by our new UltraVision II architecture and innovative Phoenix Chipset. With 600 MHz,1 GHz, and 2 GHz models each with 4 analog channels the MSO8000 Series brings RIGOL’s UltraVision II performance to the high speed engineering bench. The MSO8000 also adds Jitter and Real-time Eye Analysis capabilities in addition to other UltraVision II functions including zone triggering, 7 instruments in one, Enhanced FFTs, color grading, and histograms all supported by the high sample rate, deep memory, and full memory measurements.

Key Features

  • Analog bandwidth: 600 MHz, 1 GHz, and 2 GHz (single-channel and half-channel modes)
  • 4 analog channels, 1 EXT channel, and 16 standard configuration of digital channels (required to purchase the probe)
  • Up to 10 GSa/s real-time sample rate
  • Up to 500 Mpts memory depth (standard)
  • High waveform capture rate (over 600,000 waveforms per second)
  • Up to 450,000 frames of hardware real-time and ceaseless waveforms recording and playback functions
  • Integrates 7 independent instruments into 1, including digital oscilloscope, 16-channel logic analyzer, spectrum analyzer, arbitrary waveform generator (option), digital voltmeter, 6-digit frequency counter and totalizer, and protocol analyzer (option)
  • Auto measurement of 41 waveform parameters; full-memory hardware measurement function
  • A variety of math operations, built-in enhanced FFT analysis, and peak search function
  • Waveform histogram analysis (standard)
  • Independent search, navigation keys, and event table
  • Real-time eye diagram and jitter analysis software (option)
  • Built-in advanced power analysis software (option)
  • User-defined one-key quick operation
  • 10.1-inch capacitive multi-touch screen, 256-level intensity grading display, with color persistence

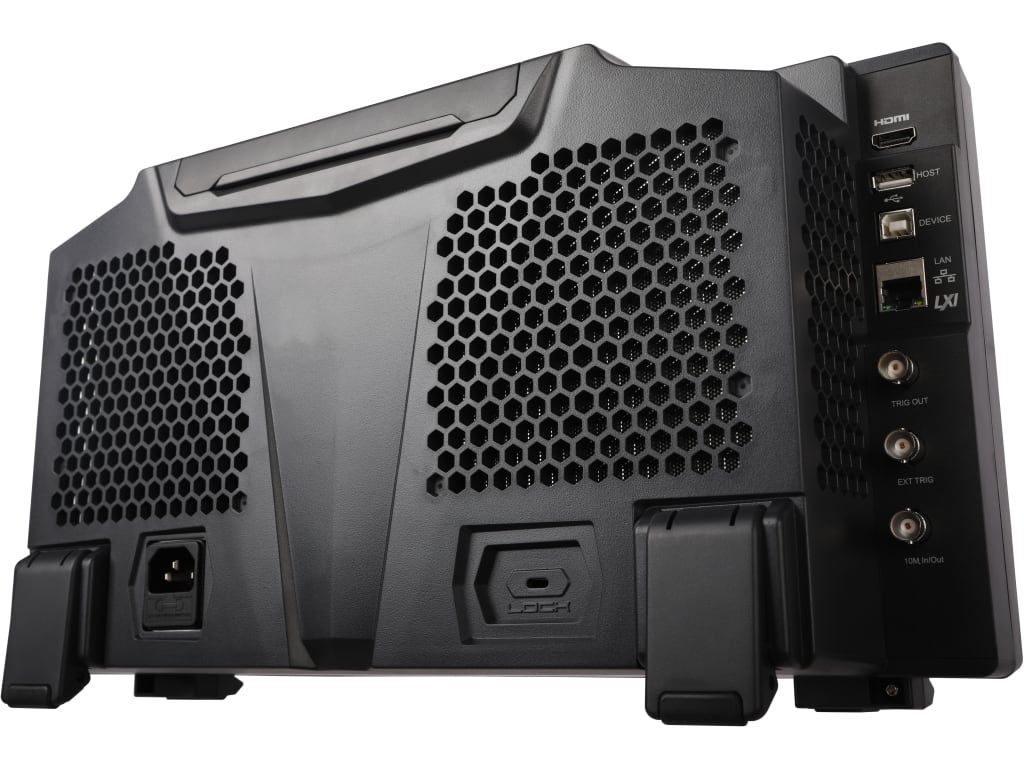

  • Multiple interfaces available: USB HOST&DEVICE, LAN(LXI), HDMI, TRIG OUT, and USB-GPIB
  • Web Control remote command
  • Unique online version upgrade
  • Sophisticated and convenient industrial design, easy to operate

Includes

  • 4 Passive Probes
  • 4 RP3500A 500 MHz Passive Probes for all models
  • FacePlate
  • Instrument Display Cover
  • Calibration Certificate
  • Instrument Quick Guide
  • Power Cord
  • USB Cable
