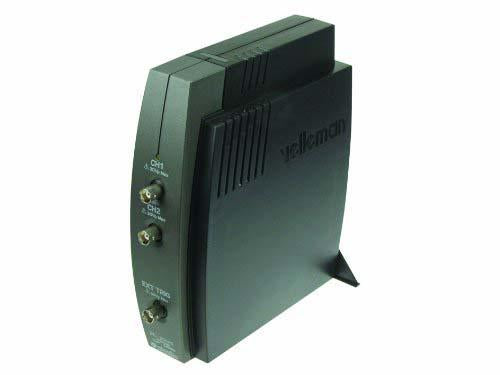

60 MHZ 2 Channel Digital Storage Scope for PC


  • Sale
  • Regular price $379.00

The PCSU1000 digital storage oscilloscope uses the power of your PC to visualize electrical signals. Its high sensitive display resolution, down to 0.15mV, combined with a high bandwidth and sampling frequency up to 1GHZ give this unit all the power you need. The USB connection makes this PC based instrument a snap to set-up, no external power required! In-the-field measurements, using a lap-top, have never been this easy. Comes in a stylish vertical space saving design. Powerful software will fulfill all your needs, but for those who like a challenge; a DLL is supplied, which allows you to create your own application.

  • Inputs: 2 channels, 1 external trigger input
  • Input impedance: 1Mohm // 30pF
  • Bandwidth: DC to 60 MHz "3dB
  • Max. input voltage: 30V (AC + DC)
  • Input coupling: DC, AC and GND
  • Supply from USB port (500mA)

Minimum system requirements:

  • IBM compatible PC
  • Needs Win98SE or higher
  • SVGA display card (min. 800x600, 1024x768 recommended)
  • Mouse
  • USB port 1.1 or 2.0 compatible
  • CD Rom player


  • USB PC oscilloscope
  • 2 x 60MHz scope probe
  • USB cable
  • Software on CD
  • Getting started manual
  • Translations on CD
