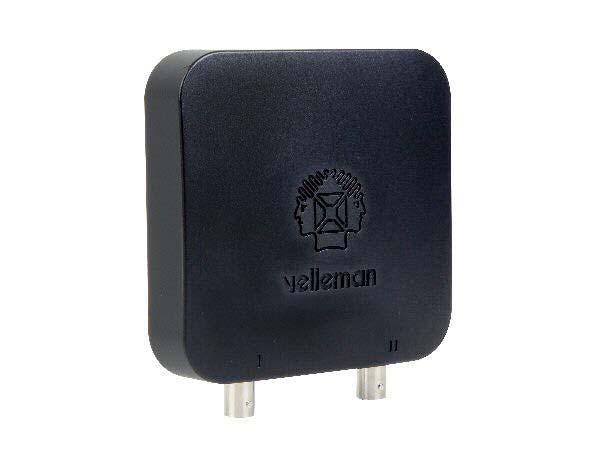

USB PC Oscilloscope & Signal Generator

SKU: 01PCSU200

  • Sale
  • $149.00
Features:
  • Function Generator:
    • crystal-based stability
    • standard waveforms: sine, square and triangle
    • predefined library waveforms included: sine(x)/x, sweep


  • Oscilloscope:
    • auto set-up function and X10 option
    • pre-trigger function
    • readouts: True RMS, dBV, dBm, p to p, Duty cycle, Frequency
    • persistence options: color graded, variable and infinite


  • Transient Recorder:
    • automatic data storage
    • automatic recording for more than 1 year
    • recording and display of screens recording and display of screens


  • Bode Plotter:
    • automated sync between oscilloscope and generator
    • logarithmic scale option
    • Volt or dB display scale
    • phase plot option


  • Spectrum analyzer:
    • linear or logarithmic time scale operating principle: FFT (Fast Fourier Transform)
    • FFT input channel: CH1 or CH2 zoom function


Box Includes:

  • Getting started manual
  • USB PC Scope+generator unit
  • USB cable


Specifications:

  • General:
    • markers for: amplitude/voltage and frequency/time
    • input coupling: DC, AC and GND
    • supply from USB port (500mA)
    • dimensions: 3.9 x 3.9 x 1.4"


  • Function generator:
    • amplitude range: 200mVpp to 8Vpp @ 1KHz// no load
    • vertical resolution: 8 bits
    • square wave rise/fall time: 0.3s
    • sample rate: 25MHz
    • typical sine wave distortion (THD): < 1%
    • output impedance: 50ohm
    • frequency range: from 0.5Hz to 500KHz (sine 1MHz)


  • Oscilloscope:
    • bandwidth: two channels DC to 12 MHz 3dB
    • input impedance: 1Mohm // 30pF
    • max. input voltage: 30V (AC + DC)
    • time base: 0.1s to 500ms per division
    • input range: 10mV to 3V/division
    • input sensitivity: 0.3mV display resolution
    • record length: 4K samples / channel
    • sampling frequency: 250Hz to 25MHz
  • Transient recorder:
    • timescale: 20ms/div to 2000s/div
    • max record time: 9.4hour/screen
    • max. number of samples: 100/s
    • min. number of samples: 1 sample/20s
  • Bode Plotter:
    • voltage range: 10mV, 30mV, 0.1V, 0.3V, 1V, 3V
    • frequency range: 1KHz , 10KHz, 100KHz, 500KHz
    • Frequency start: 1Hz,10Hz, 100Hz, 1KHz, 10KHz, 100KHz
  • Spectrum analyzer:
    • frequency range: 0 .. 120Hz to 12MHz
    • FFT resolution: 2048 lines
  • Minimum system requirements:
    • IBM compatible PC
    • Windowsâ„¢ XP, Vista, 7 *
    • SVGA display card (min.1024 x 768)
    • mouse
    • free USB port 1.1 or 2.0
