RSR

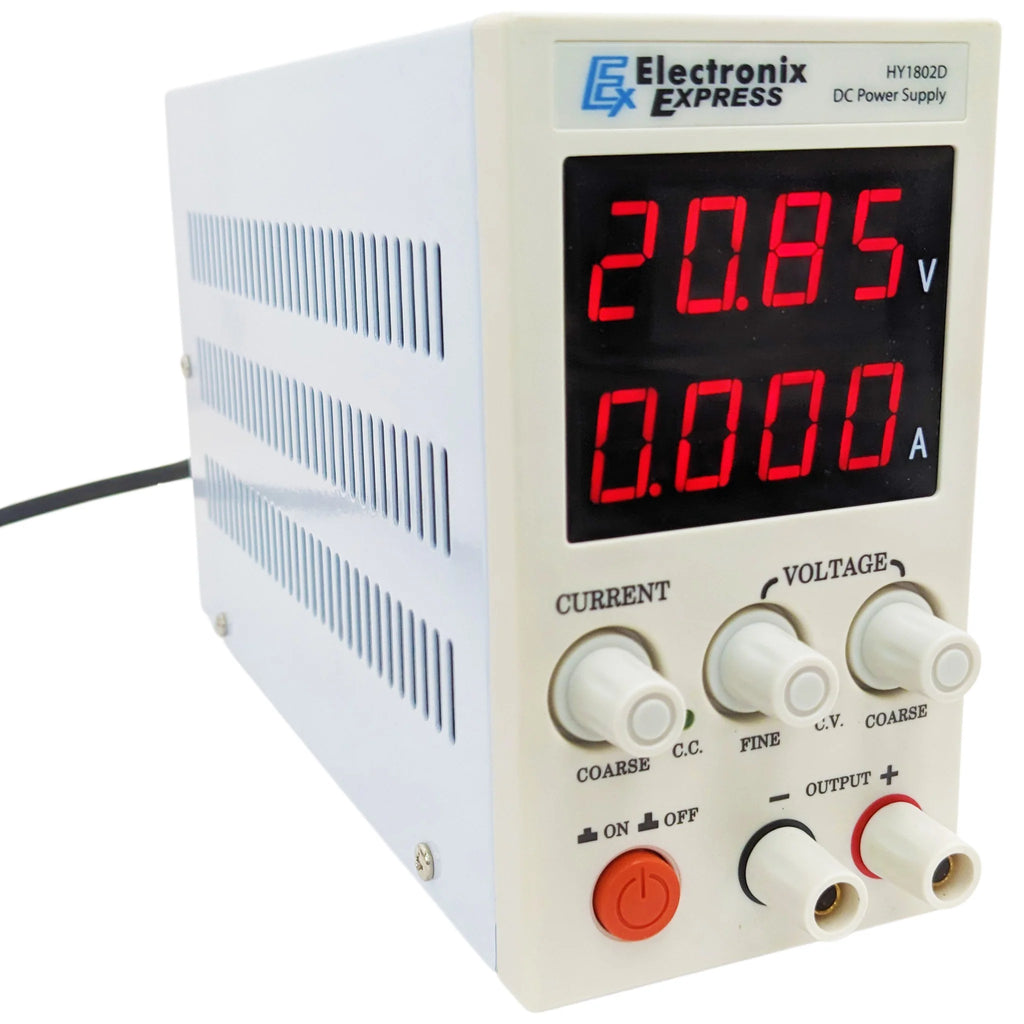

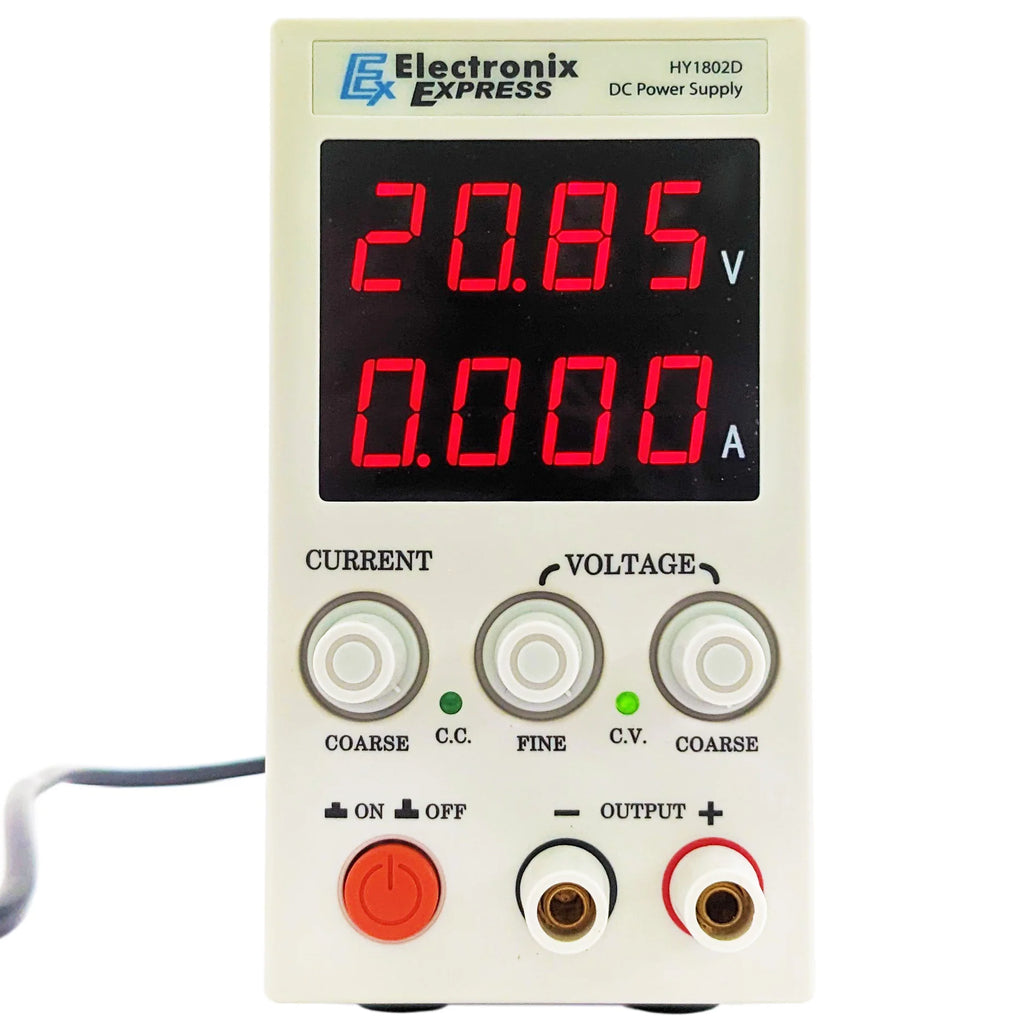

Variable DC Power Supply 0-18V, 0-2A with LED Displays

SKU: 01PHSY1802D

  • Sale
  • Regular price $74.50


  • Voltage Adjustable: 0-18Vdc
  • Current Adjustable: 0-2A
  • Both the voltage and the amperage are adjustable with COARSE and FINE tuning controls for best precision
  • LCD displays both current and voltage
  • Protection: Current limiting and short circuit protection

Technical specifications:

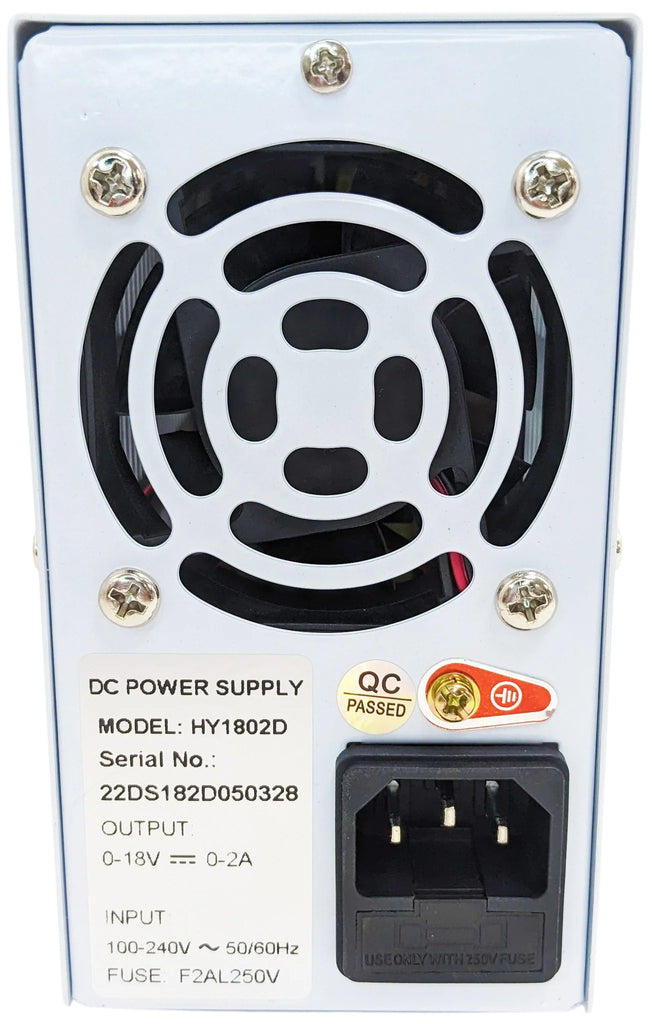

  • Input voltage: 104~127V AC (60Hz), 207~253V AC (50Hz) - select 115V or 230V via switch on back
  • Line regulation: CV≤0.01%+1mV CC≤0.2%+1mA
  • Load regulation: CV≤0.01%+3mV CC≤0.2%+3mA
  • Ripple and noise: CV≤0.5mVr.m.s CC≤3mAr.m.s
  • Protection: constant current and short circuit protection
  • Voltage indication accuracy: LED±0.5% +5 digits
  • Current indication accuracy: LED±0.5% +5 digits
  • Environment: 0 ~ +40°C relative humidity: <90%
  • Dimensions: 9.00" x 3.25" x 6.30"
  • Weight: ~5.15 lbs.
