Single Output Switching DC Power Supply 0-30V 0-20A

SKU: 01PHSY3020

  • Sale
  • Regular price $266.00

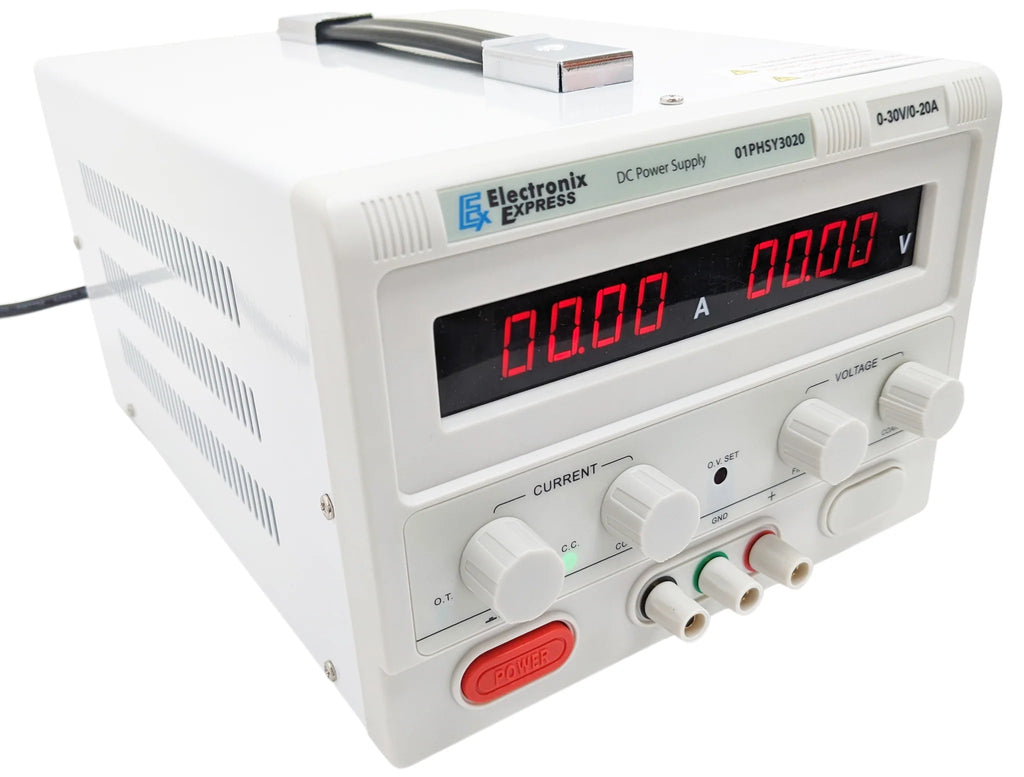

The 01PHSY3020 is a lab grade regulated DC power supply with two levels of control over both current and voltage outputs (coarse and fine), which can be continuously adjustable at 0-30V DC and 0-20A. The vibrant LED meters display the actual voltage and current. Excellent for multiple regulated power requirements with variable 0-30 volt 0-20 amp output. Other uses include lab, science projects or any other use where stable voltage up to 30 volts is required.


  • Voltage adjustable 0-30V
  • Current adjustable 0-20A

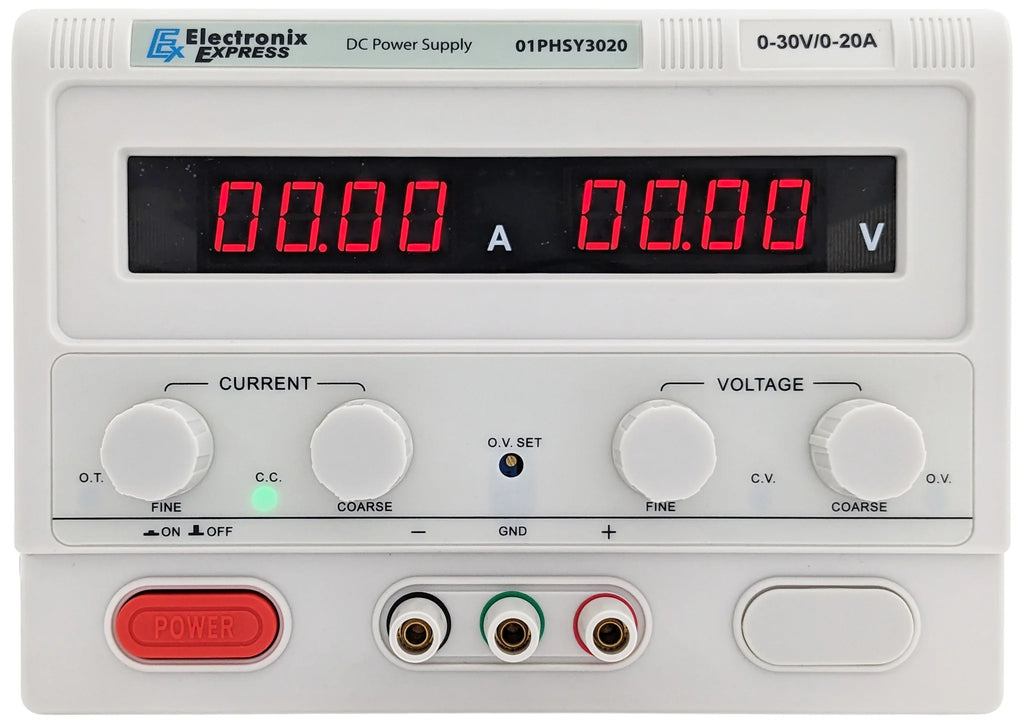

  • LED displays for both current and voltage
  • Constant Voltage (CV) and constant current (CC) operations, Auto CV/CC switch
  • Coarse and Fine control for voltage and current

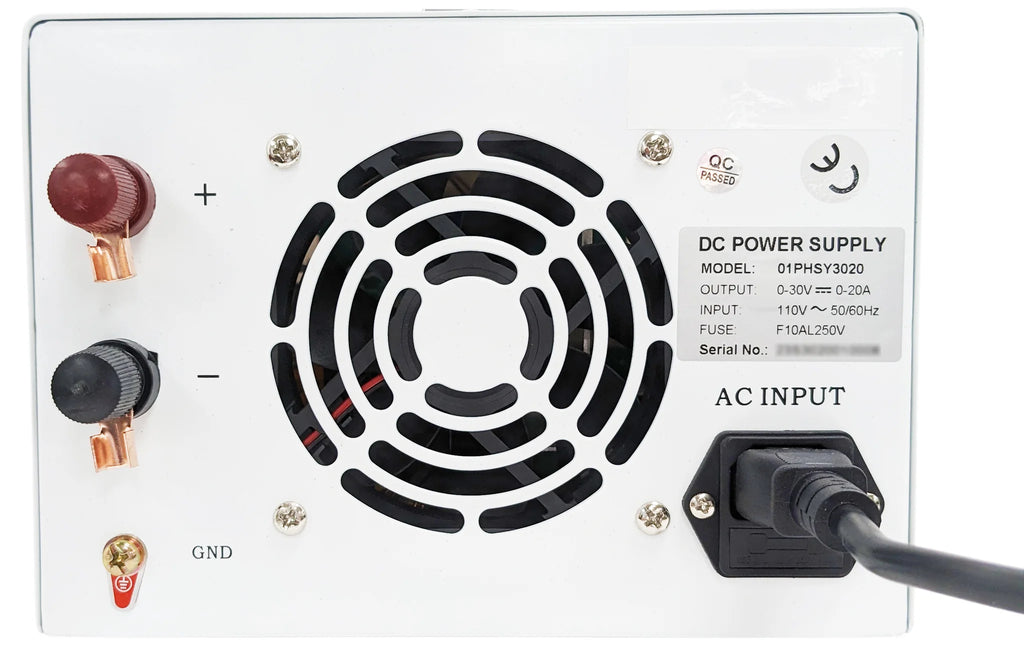

  • AC Input: 110V ~50/60Hz
  • Maximum output power: 600W
  • Advanced PWM control technology
  • Over current protection, Over voltage protection and Over temperature protection


  • Line regulation: CV≤0.2% reading +2 LSB; CC≤0.5% reading +2 LSB
  • Load regulation: ≤0.5% reading +2 LSB
  • Ripple & Noise: ≤1% rmsFS
  • Accuracy: ±1% FS
  • Dimensions: 7.87" x 11.22" x 5.90"
  • Weight: 6.17 LB
