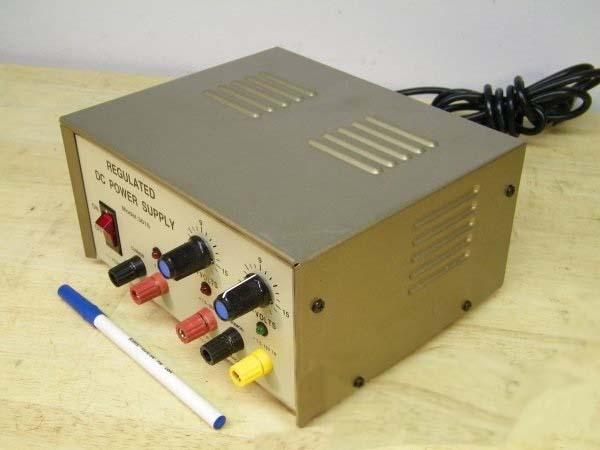

The 3010 DC Power Supply features 3 regulated DC supply outputs. One output is fixed and 2 are continuously variable. All 3 supplies are fully current limited and shortcircuit protected.
- 5V DC at 3 amps maximum line regulation of 0.2% load regulation of 1% with a maximum ripple of 10mV p-p.
- Variable Output: +/- 1.5V DC to +/- 15V DC at 1 amp maximum, line regulation of 0.5%, load regulation of 1% with maximum ripple of 10mV p-p. Model 3040
- 3 supplies are fully current limited and shortcircuit protected
Specifications:
- Fixed Output: 5V DC at 3 amps maximum, Line regulation of 0.2%
- Load regulation of 1% with a maximum ripple of 10mV p-p.
- Variable Output: ±1.5V DC to ±15V DC at 1 amp maximum, Line regulation of 0.5%
Load regulation of 1% with maximum ripple of 10mV p-p.
- Product Dimensions (L x W x H): x 201 x MM
- Product Weight: 1.04 LB
Note: Also available as a Do-it-Yourself Kit version that can be found by searching for the following part number: 01PS3010K
