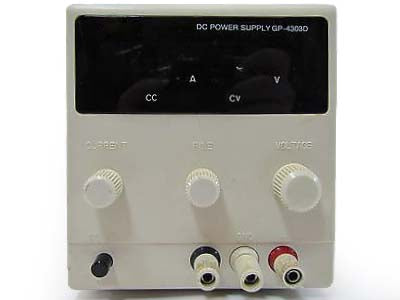

DC Power Supply, Digital 0-30V, 0-3A

• Compact size and light weight
• Low power consumption
• Built - in current limiting circuit
• Built-in digital numeric display
• Low ripple : < 1.5mVp-p
• Output polarity : positive or negative
• Variable current to 3 Amps
• Variable voltage to 30 Volts DC

Specifications:

• Output Voltage: 0 ~ 30V continuously variable
• Output Current: 0 ~ 3A
• Output Polarity: positive and negative
• Ripple Voltage: less than 1.5mVp - p
• Output Stability: Less than 5mV for power source voltage change of 10%, Less than 5mV for load variation of 0 to 100%
• Insulation: Between chassis and output terminal : More than 10M at AC 500V Between chassis and AC plug : More than 50M at AC 500VCompensation / Protection Circuit: Overload protection circuit of constant current self - restoring type
• Ambient Temperature Range: 0 ~ +40
• Power Source: AC 90-132V, AC198-264V, 50/60Hz
• Dimension(W H D): 131mm 143mm 253mm
• Weight: Approx. 4kg
• Accessories: Short-circuit bar 1, fuse 1, operator s manual, AC power cord
