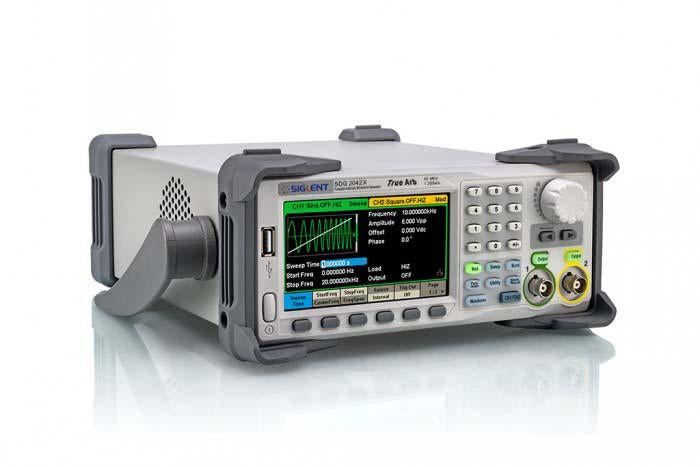

Siglent SDG2122X 120MHz Waveform Generator

SKU: 01SDG2122X

  • Sale
  • Regular price $899.00


SIGLENT's SDG2000X is a series of dual-channel function/arbitrary waveform generators with specifications of up to 120MHz maximum bandwidth, 1.2GSa/s sampling rate and 16-bit vertical resolution. The proprietary TrueArb & EasyPulse techniques help to solve the weaknesses inherent in traditional DDS generators when generating arbitrary, square and pulse waveforms. With advantages above, SDG2000X can provide users with a variety of high fidelity and low jitter signals, which can meet the growing requirements of complex and extensive applications.

Features:

  • Dual-channel, 120MHz maximum bandwidth, 20Vpp maximum output amplitude, high fidelity output with 80dB dynamic range.
  • High-performance sampling system with 1.2GSa/s sampling rate and 16-bit vertical resolution. No detail in your waveforms will be lost.
  • Innovative TrueArb technology, based on a point-by-point architecture, supports any 8pts~8Mpts Arb waveform with a sampling rate in range of 1, Sa/s~75MSa/s.
  • Innovative EasyPulse technology, capable of generating lower jitter Square or Pulse waveforms, brings a wide range and extremely high precision in pulse width and rise/fall times adjustment.
  • Plenty of analog and digital modulation types: AM, DSB-AM, FM, PM, FSK, ASK and PWM.
  • Sweep and Burst functions.
  • High precision Frequency Counter.
  • Standard interfaces: USB Host, USB Device,USBTMC, LAN, VXI-11
  • Optional interface: GPIB.
  • 4.3" touch screen display for easier operation.
