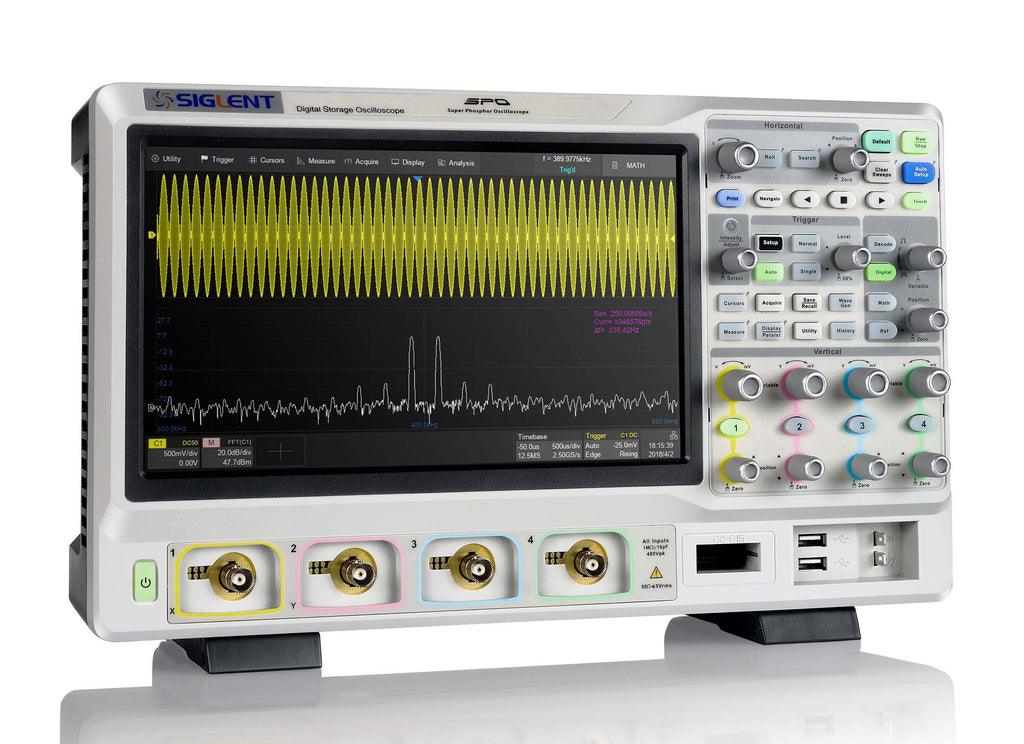

1 GHz, 4 Channel SDS5104X Super Phosphor Oscilloscopes

SKU: 01SDS5104X

  • Sale
  • Regular price $7,550.00

Siglent's new SDS5000X series of digital storage oscilloscopes builds on the advancements learned with our SDS2000X scopes. These advancements include a faster architecture, touch-screen, mouse, and keyboard support, and a snappy user interface, all at a price that is about 1/2 that of similar products on the market. Popular and powerful features include both a 256-level intensity graded display as well as color-temperature display modes, 500 uV/div (BW is limited in this sensitivity position), Search & Navigate, and provisions for MSO (optional). The SDS5000X comes with Siglent's most powerful Math capabilities to date.



  • Bandwidth: 1 GHz
  • Maximum Sample Rate: 5 MSa/s (Has one A-to-D converter each for CH1/CH2 & CH3/CH4)
  • Sensitivity: 500 uV/div (Below 2.45 mV/div the BW is limited to 200 MHz)
  • Waveform Capture Rates to 110,000 wfm/s (normal mode) and 480,000 wfms/s (Sequence mode)
  • Record Length: Up to 250 MPts
  • Serial Triggering & Decode: I2C, SPI, UART, CAN, LIN standard (Optional: FlexRay, I2S, MIL-STD 1553B, CAN FD)
  • Segmented Memory mode
  • Histograms, Math on Math
  • FFT: 2 MPts
  • Touch Screen, Mouse & Keyboard support
  • USB and LAN interfaces. LAN supports remote web browser operation
