GW Instek

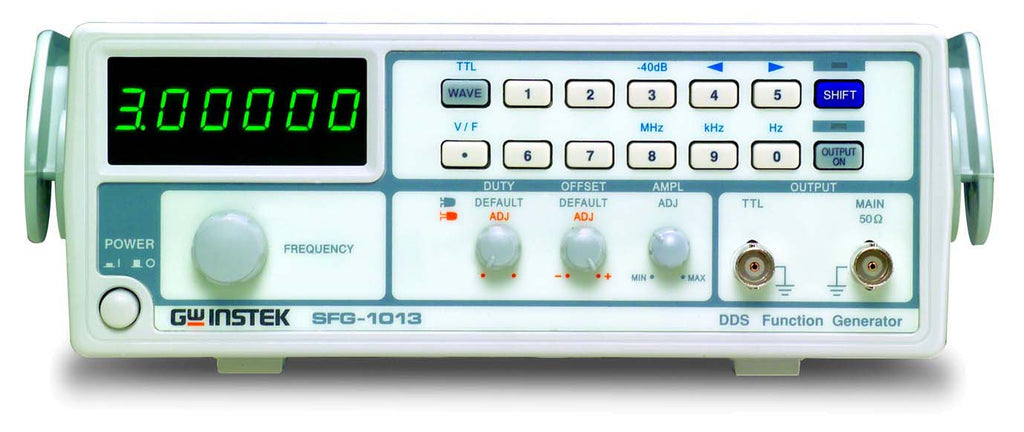

GW Instek 3 MHz Function/Sweep Generator DDS with Voltage Display - Model SFG1013

SKU: 01SFG1013

  • Sale
  • Regular price $209.00


The SFG-1000 Series, an economic function generator with high accuracy and high stability output, are designed based on the DDS (Direct Digital Synthesized) technology embedded in a large scale FPGA.

The 3MHz frequency range and the output waveform selection of Sine, Square, Triangle and TTL available in the SFG-1000 Series adequately provide the fundamental functions to ensure high confidence in test results. The DDS technology at an affordable price gives a high value solution to the users who need a signal source for accurate but simple measurement applications


Features:

  • DDS Technique and FPGA Chip Design
  • Frequency Range:0.1Hz~3MHz
  • High Frequency Accuracy : ± 20ppm
  • High Frequency Stability : ± 20ppm
  • Max. Frequency Resolution : 100mHz
  • Low Distortion Sine Wave : -55dBc,0.1Hz~200kHz
  • Voltage Display (Only SFG-1013)
