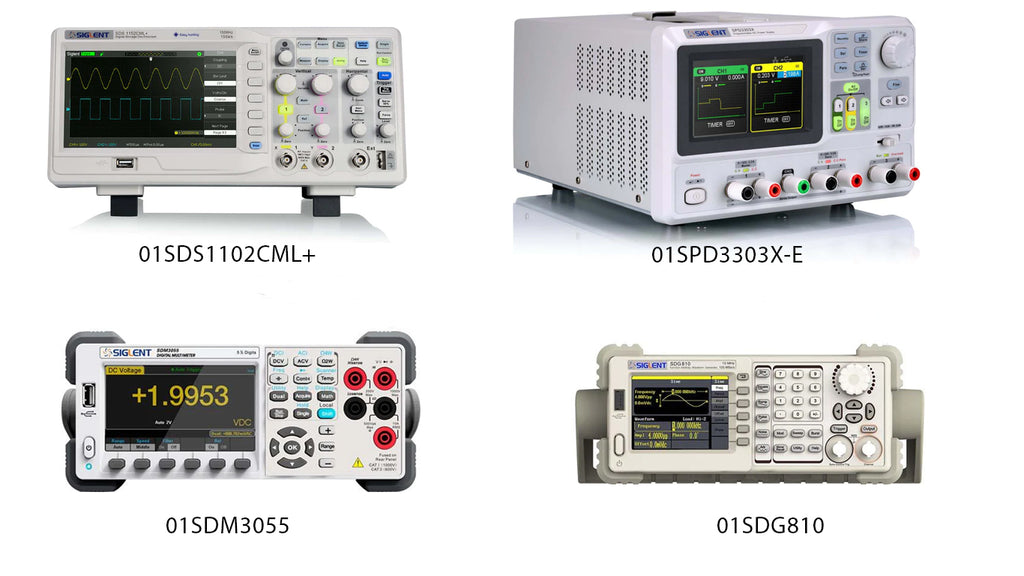

This package contains the best entry level equipment Siglent has to offer. This package includes the following items:

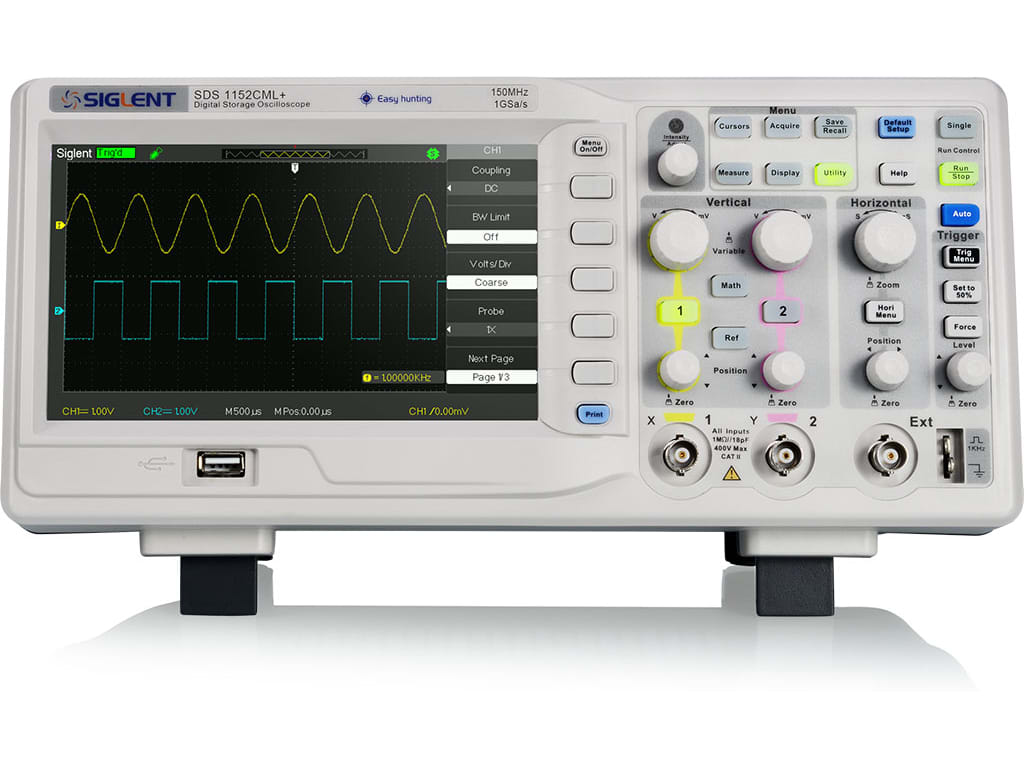

- 1 × Siglent SDS1102CML+, 2 Channel, 100 MHz Digital Oscilloscope
- 1 × Siglent SPD3303X-E, 10mV/10mA Triple Programmable DC Power Supply
- 1 × Siglent SDM3055, 5½" Benchtop Digital Multimeter With USB & LAN

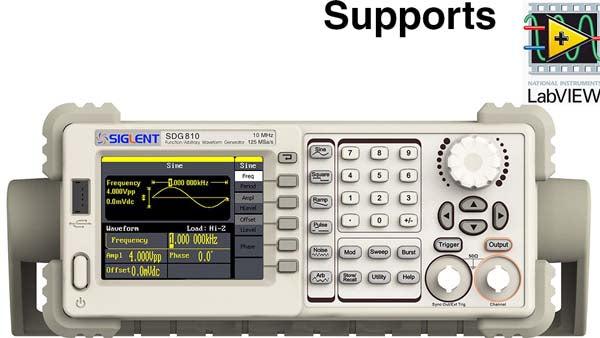

- 1 × Siglent SDG810, Single Channel 10 MHz Arbitrary Waveform Generator
- 100 MHz bandwidth / 2 channels
- Real-time sampling rate up to 1 GSa/s
- Equivalent-time sampling rate up to 50 GSa/s
- Memory depth up to 2 Mpts
- Trigger types: Edge, Pulse, Video, Slope, Alternate
- Waveform math functions: +, -, *, /, and FFT
- 6 digit frequency counter
- Digital filter and waveform recorder function
- Shortcut storage function key
- 7-inch TFT-LCD display with 800 x 480 resolution
- Multiple interfaces: USB Host, USB Device (USBTMC), LAN (VXI-11), Pass / Fail
- 3 independent controlled and isolated output, 32V/3.2A,2, 2.5V/3.3V/5V/3.2A,1, total 220W.
- 5 digits Voltage, 4 digits Current Display, Resolution: 10 mV / 10 mA
- Supports panel timing output functions.
- 4.3 inch true color TFT- LCD 480x272 pixel display.
- 3 kinds of output modes: independent, series, parallel.
- 100V/120V/220V/230V compatible design to meet the needs of different power grids.
- Intelligent temperature-controlled fan , effectively reducing noise.
- Clear graphical interface, with the waveform display function
- Internal 5 groups of system parameter save/recall, supports data storage space expansion.
- Provides PC software: Easypower , supports SCPI , Labview driver.
- SDM3055 Benchtop Digital Multi-meters with USB, and LAN
- 4.3 inches true color TFT-LCD display
- Up to150rdgs / s measurement speed
- 1Gb NAND Flash, supports U disk expansion
- Built-in thermo-couple cold-junction compensation
- Configuration Interface: USB Host & Device, LAN
- Supports remote control commands provided PC software
- Dual display, Chinese and English menu
- Support VXI11, USBTMC
- Advanced DDS technology,125MSa/s sampling rate, 14bit vertical resolution
- Single channel output, 5 kinds of standard waveforms, built-in 46 kinds of arbitrary waveforms (including DC)
- Complete modulation functions: AM, DSB-AM,FM, PM, FSK, ASK, PWM, linear/logarithmic sweep and burst
- Innovative EasyPulse technology, can output pulse of low jitter, quick rising/falling edge
- Standard interfaces: USB Device, USB Host, support U-Disk storage and software update
- Provide 10 nonvolatile storage spaces for user's arbitrary waveforms
- Be capable of seamlessly connected to SIGLENT Digital Storage Oscilloscope
- Configurable with powerful arbitrary waveform editing software EasyWave
