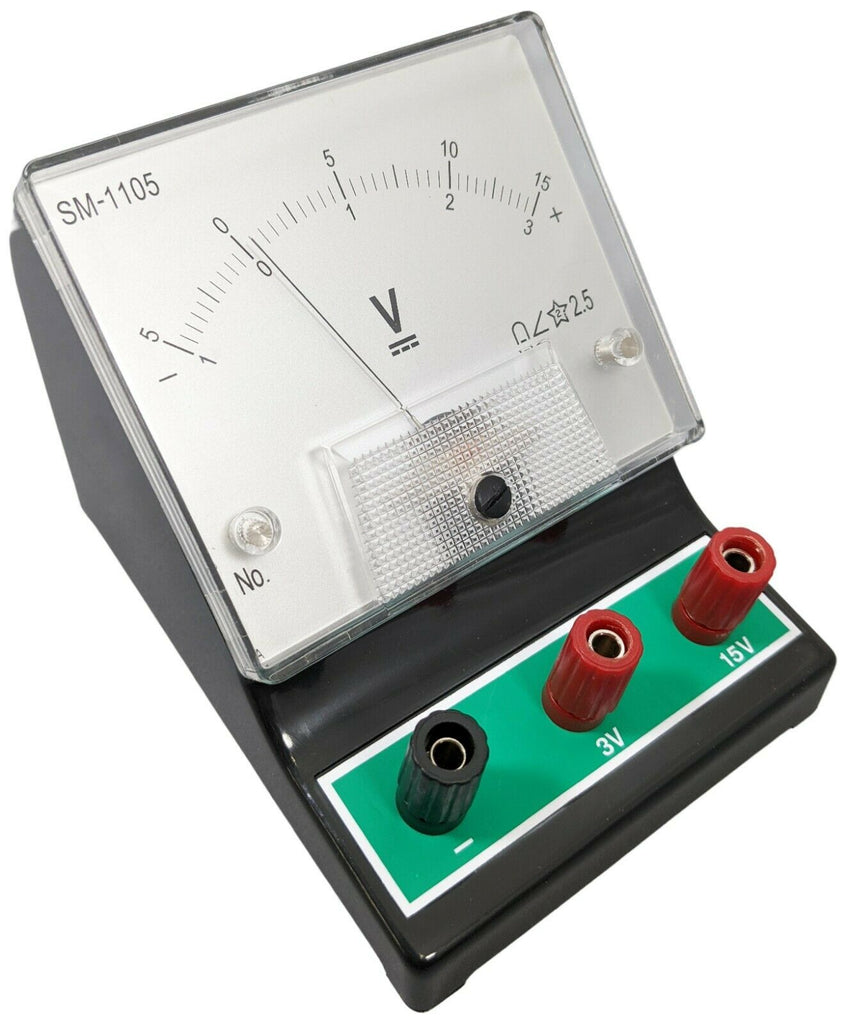

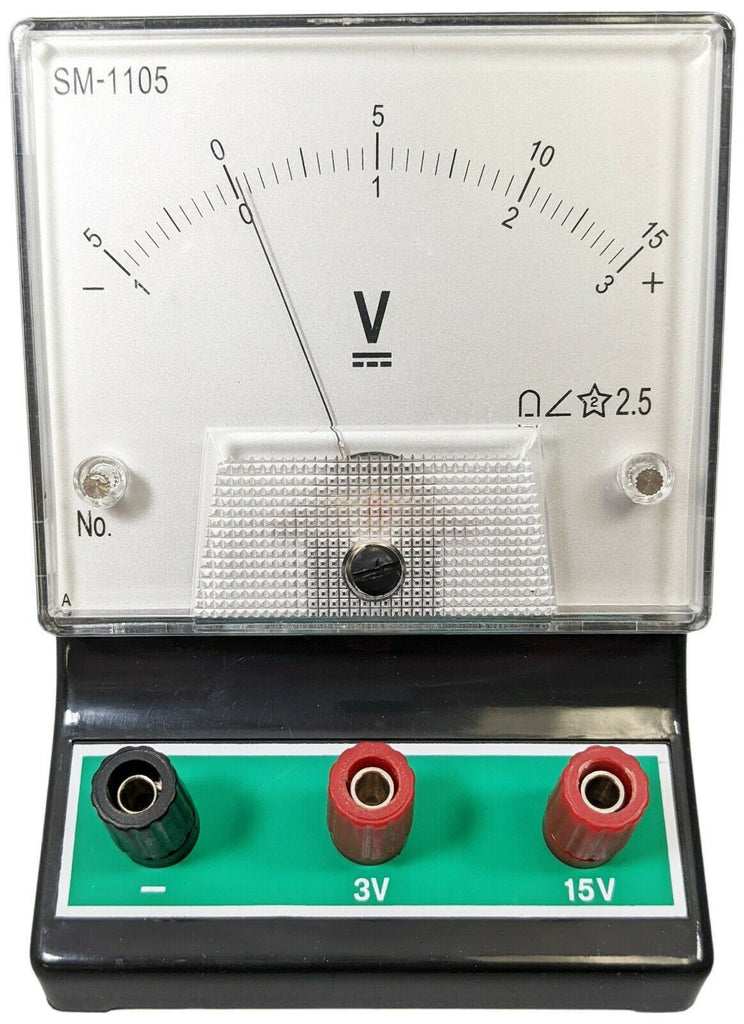

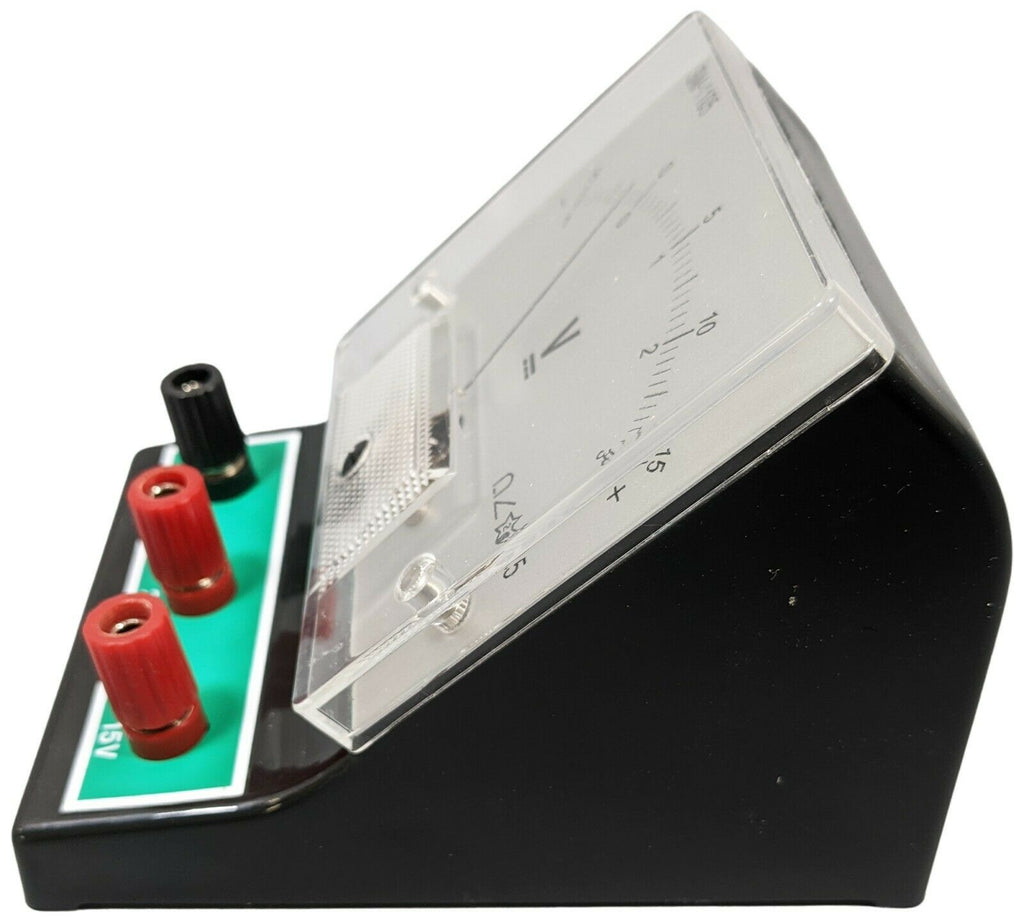

RSR Analog Voltmeter for Measuring DC Voltage in a DC Circuit –1 to +3V or –5 to +15

SKU: 01SM1105

  • Sale
  • Regular price $9.95


Meter Movement Voltmeter for measuring DC voltage in a DC circuit. Voltage measurement is taken by connecting the instrument in parallel with the circuit being checked. To use the Voltmeter, connect the Red terminal to DC voltage Positive.

  • Meter Movement Voltmeter — Ideal for measuring DC voltage in a DC circuit
  • Measuring Range: –1 to +3V or –5 to +15V
  • Accuracy: +/- 2.5% full scale
  • Features a zero adjustment screw
  • Measures 100 x 133 x 97mm
Specifications:
  • Measuring Range:
    • –1 ~ 0 ~ +3V
    • –5 ~ 0 ~ +15V
  • Accuracy: +/- 2.5% Full Scale
