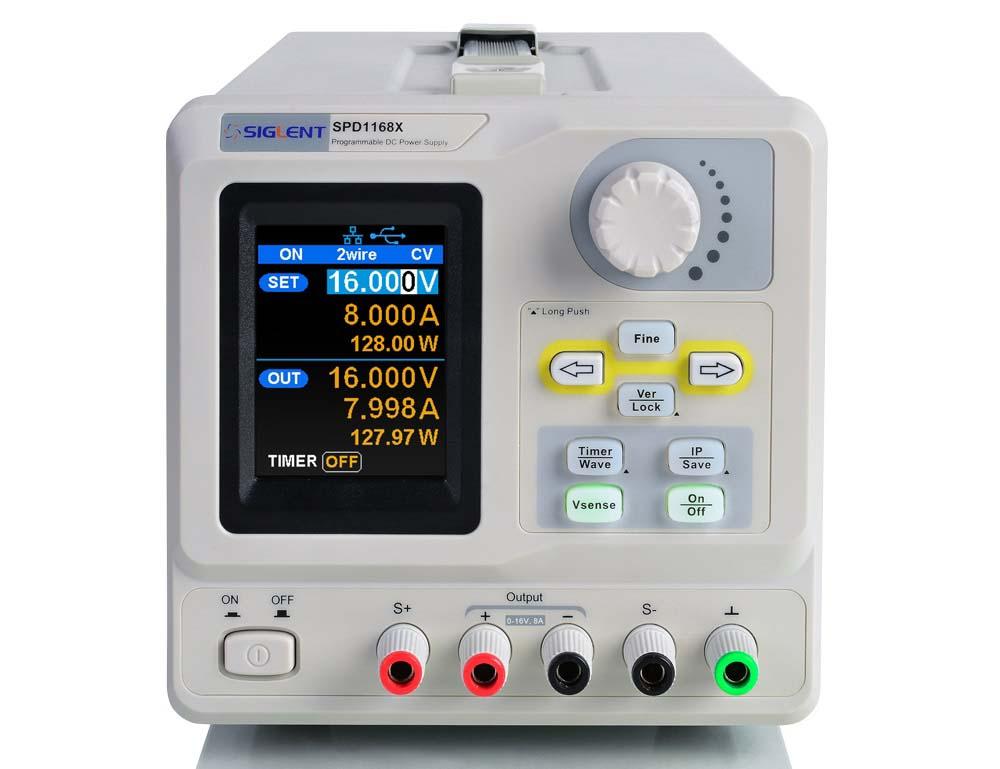

Siglent SPD1168X Series Programmable DC Power Supply

SKU: 01SPD1168X

  • Sale
  • Regular price $259.00


SPD1168X Programmable Linear DC Power Supply has a 2.8 inch TFT-LCD display, features remote computer control capability, and real time wave display. This single output design is focUSEd on delivering high performance and ease-of-USE in a small package. The SPD1168 features a high precision programmable output capable of delivering up to 16 V/8 A. There are additional output short and overload protect functions to assist in production and development applications.

Features:

  • Single path high-precision programmable voltage output? SPD1168X''16 V/8 A?total power up to 128 W
  • Stable, reliable, Low ripple and noise?? 350 uVrms/3 mVpp; < 2 mArms
  • Fast transient response time: < 50 ?s
  • 5 digit Voltage, 4 digit Current Display, Minimum Resolution: 1 mV/1 mA
  • Supports front panel timing output functions
  • 2.8 inch true color TFT- LCD 240 *320 display
  • 2 types of output modes?Two-wire output mode, 4-wire compensation output mode?Maximum compensation voltage 1V
  • 100/120/220/230 V compatible design to meet the needs of different power grids
  • Intelligent temperature-controlled fanreduces noise
  • Clear graphical interface, with the waveform display function
  • Internal 5 groups of system parameter save/recall
  • Includes PC software: Easypower, supports SCPI, LabView driver
