Siglent

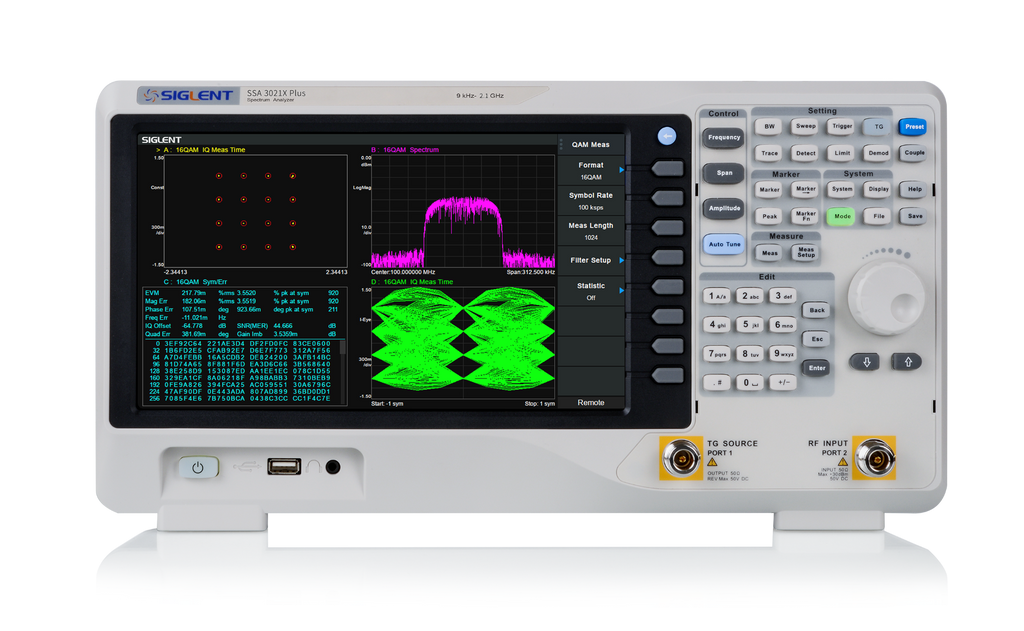

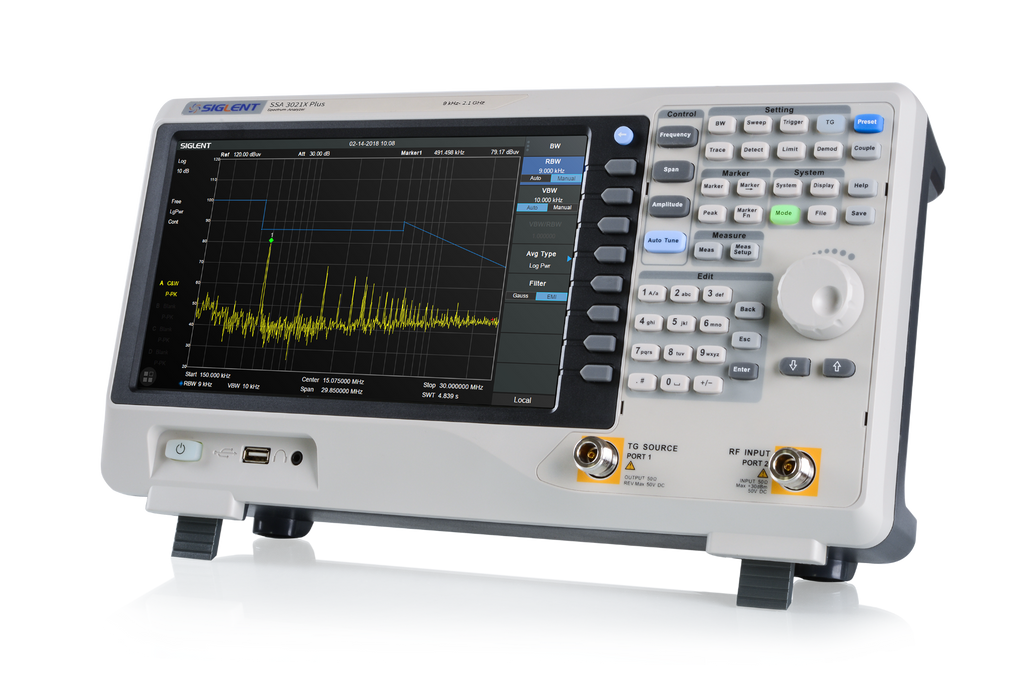

Siglent SSA3032X Plus 9kHz - 3.2GHz Spectrum Analyzer with Tracking Generator

SKU: 01SSA3032XPLUS

  • Sale
  • Regular price $2,795.00


The SIGLENT SSA3000X Plus series spectrum analyzers are powerful and flexible tools for RF signal and network analysis. With a frequency range to 7.5 GHz, the analyzer delivers reliable automatic measurements and multiple modes of operation: spectrum analyzer the base, optional functions include RF power measurement, vector signal modulation analysis, reflection measurement, and EMI test.

Applications include broadcast monitoring/evaluation, site surveying, S-parameter measurement, analog/digital modulation analysis, EMI pre-compliance test, research and development, education, production, and maintenance.

Key Features

  • Spectrum Analyzer Frequency Range from 9 kHz up to 3.2 GHz
  • -161 dBm/Hz Displayed Average Noise Level (Typ.)
  • -98 dBc/Hz.@10 kHz Offset Phase Noise (1 GHz, Typ.)
  • Level Measurement Uncertainty < 0.7 dB (Typ.)
  • 1 Hz Minimum Resolution Bandwidth (RBW)
  • Preamplifier Standard
  • Tracking Generator
  • Vector Signal Modulation Analysis Mode (Opt.)
  • Reflection Measurement Kit (Opt.)
  • EMI Filter and Quasi-Peak Detector Kit(Opt.)
  • Advanced Measurement Kit (Opt.)
  • 10.1 lnch Multi-Touch Screen , Mouse and Keyboard supported
  • Web Browser Remote Control on PC and Mobile Terminals and File Operation

Includes

  • Quick Start
  • USB Cable
  • Power Cord
  • Tracking Generator
