Siglent

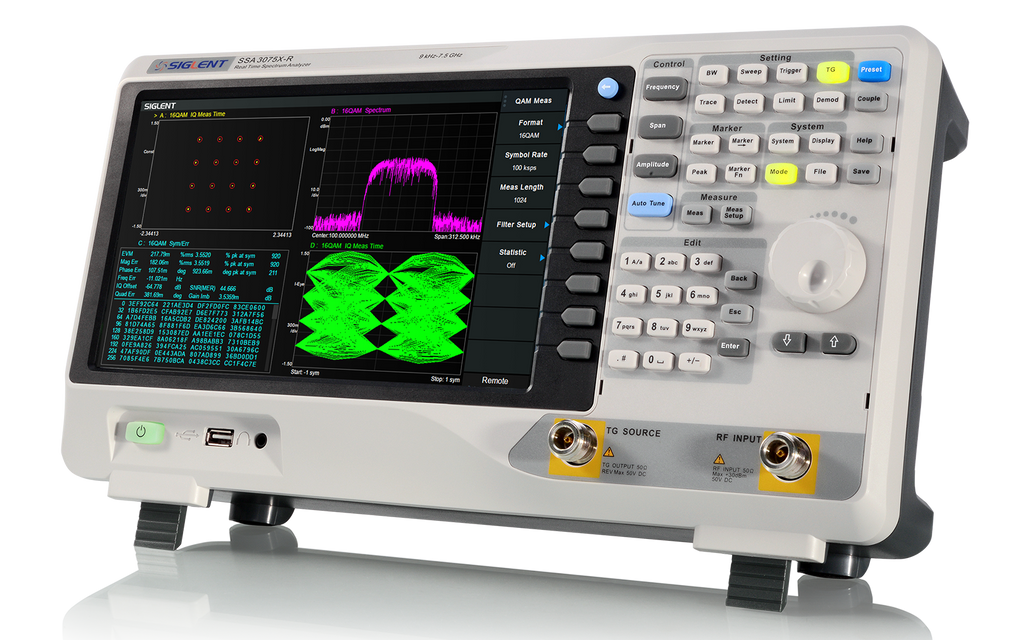

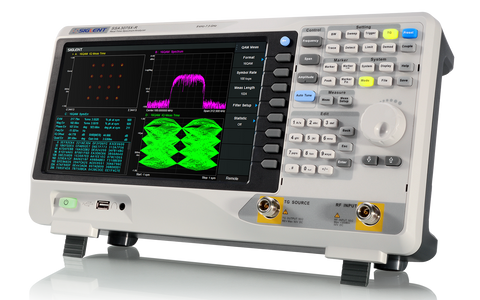

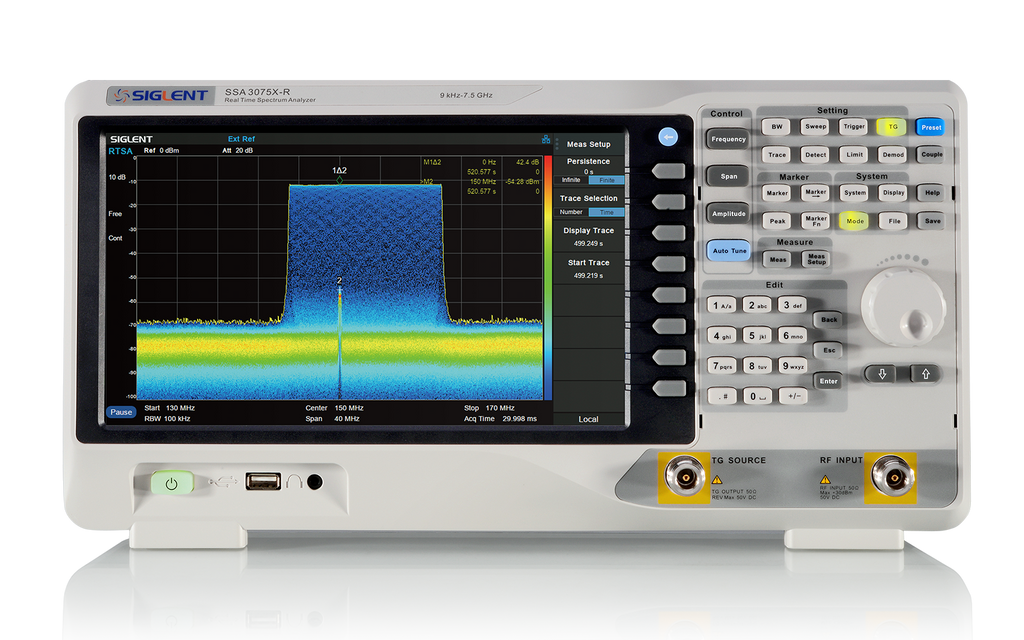

Siglent 9 kHz~7.5 GHz Spectrum Analyzer with Tracking Generator

SKU: 01SSA3075X-R

  • Sale
  • Regular price $10,790.00


The SIGLENT SSA3000X-R real-time spectrum analyzers are powerful and flexible tools for complex RF signal monitor and analysis. With a capability of 40 MHz analysis bandwidth and 7.2 µs 100% POI, the analyzer can provide multi-dimensions data displays, advanced triggering, and RF data capturing, to solve modern RF spectrum challenges, like hopping frequency, conflict channel, spectrum interference, etc. They also provide standard tracking generator for network analysis, optional wide band digital modulation analysis, and EMI pre-compliance test.
Applications include broadcast monitoring/evaluation, cellular site, IoT, WiFi, Bluetooth surveying, research and development, education, production, and maintenance.



Key Features

  • Spectrum Analyzer Frequency Range from 9 kHz up to 5.0 GHz / 7.5 GHz
  • -165 dBm/Hz Displayed Average Noise Level (Typ.)
  • -98 dBc/Hz.@10 kHz Offset Phase Noise (1 GHz, Typ.)
  • Level Measurement Uncertainty < 0.7 dB (Typ.)
  • 1 Hz Minimum Resolution Bandwidth (RBW)
  • Preamplifier Standard
  • Tracking Generator Standard
  • Up to 40 MHz Real Time Analysis Bandwidth (Opt.)
  • 100% POI 7.20 μs, Dynamic Range 60 dB
  • Multi-view for Density, Spectrogram, PvT and 3D
  • Advanced Measurement Kit (Opt.)
  • Reflection Measurement Kit (Opt.)
  • Modulation Analysis Mode (Opt.)
  • EMI Measurement Mode (Opt.)
  • 10.1 inch Multi-Touch Screen , Mouse and Keyboard supported
  • Web Browser Remote Control on PC and Mobile Terminals and File Operation

Includes

  • Quick Start
  • USB Cable
  • Power Cord
