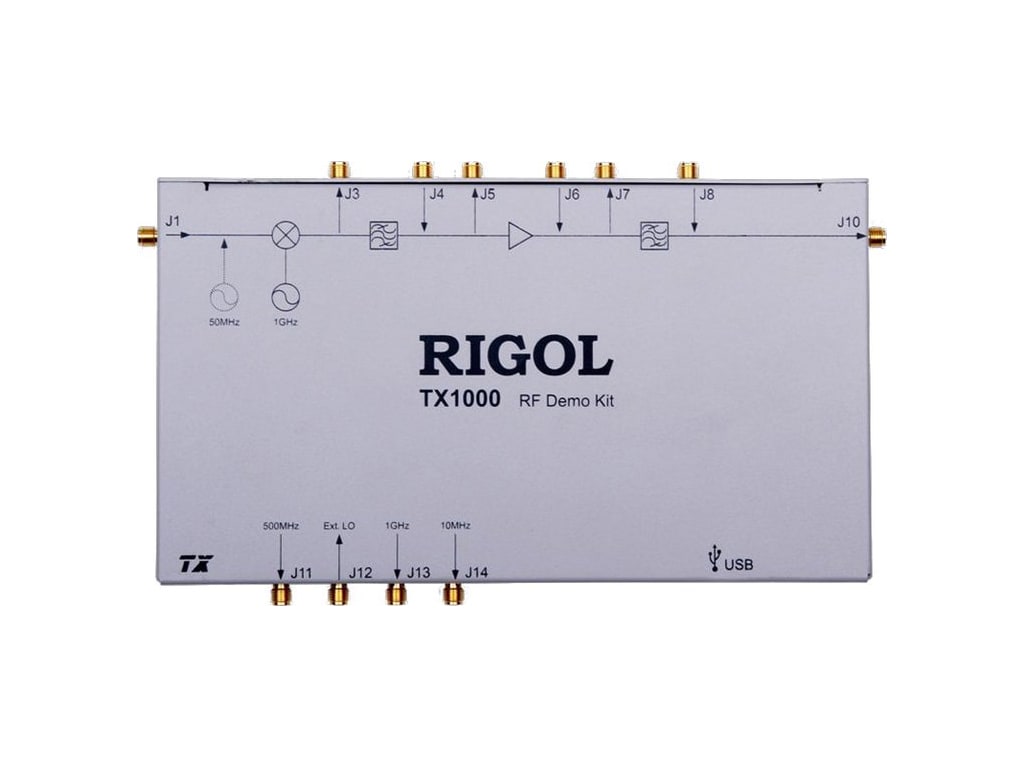

Demonstrator Board with Built-in 1GHz Oscillator, mixer, filters, and amplifier

SKU: 01TX1000

  • Sale
  • Regular price $993.00

  • For DSA-815/TG Models
  • Energized by USB; connected with PC for operations and controlled through the program control panel on the PC.
  • Provide 10MHz reference signal output and can easily realize clock synchronization with other devices of the system.
  • Built-in 50MHz signal which can be connected to the input port by switches to facilitate USEr™ learning, operation and demonstration of the spectrum analyzer.
  • 500MHz and 1GHz local oscillator signal outputs with good phase noise to convenient USErs™ various measurement needs when there is no signal source.
  • Modular circuit design; provide interfaces for USErs to make separate measurement of any component; enable to replace any component.
