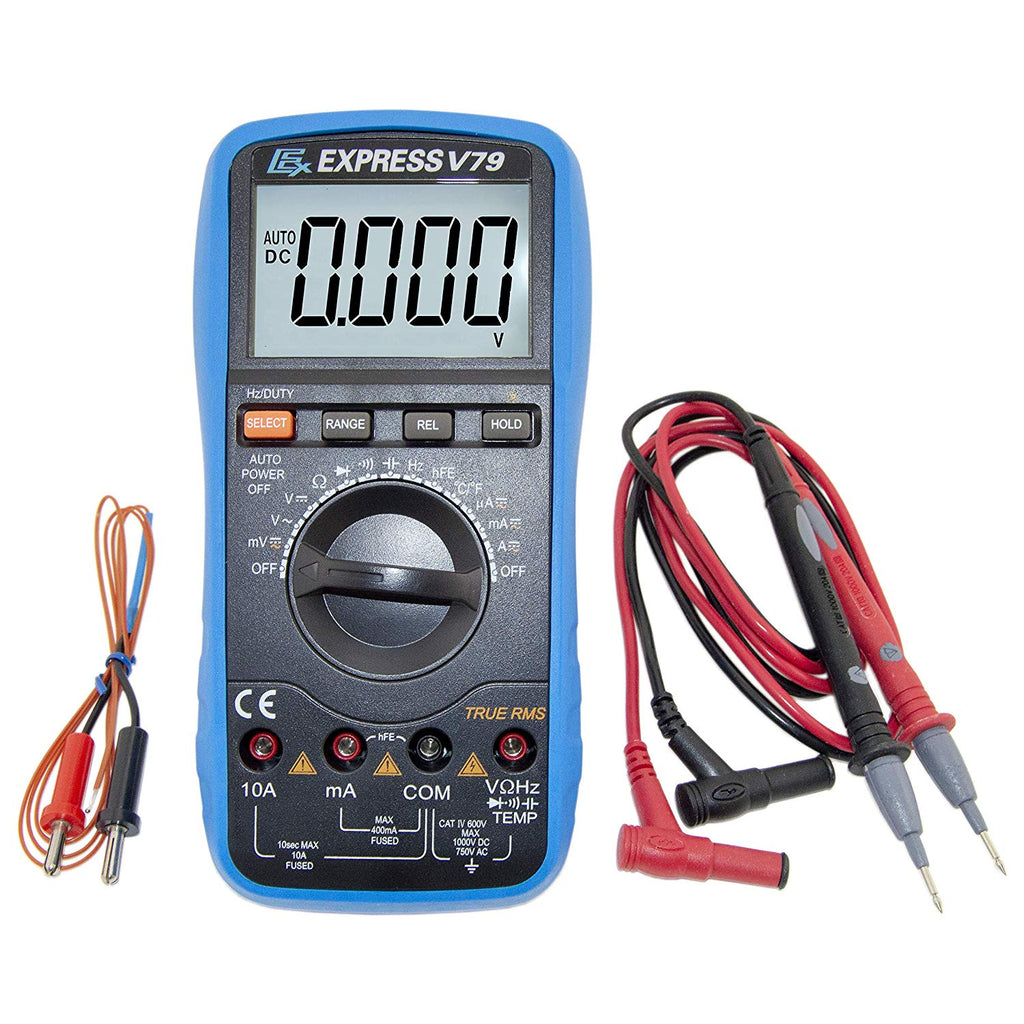

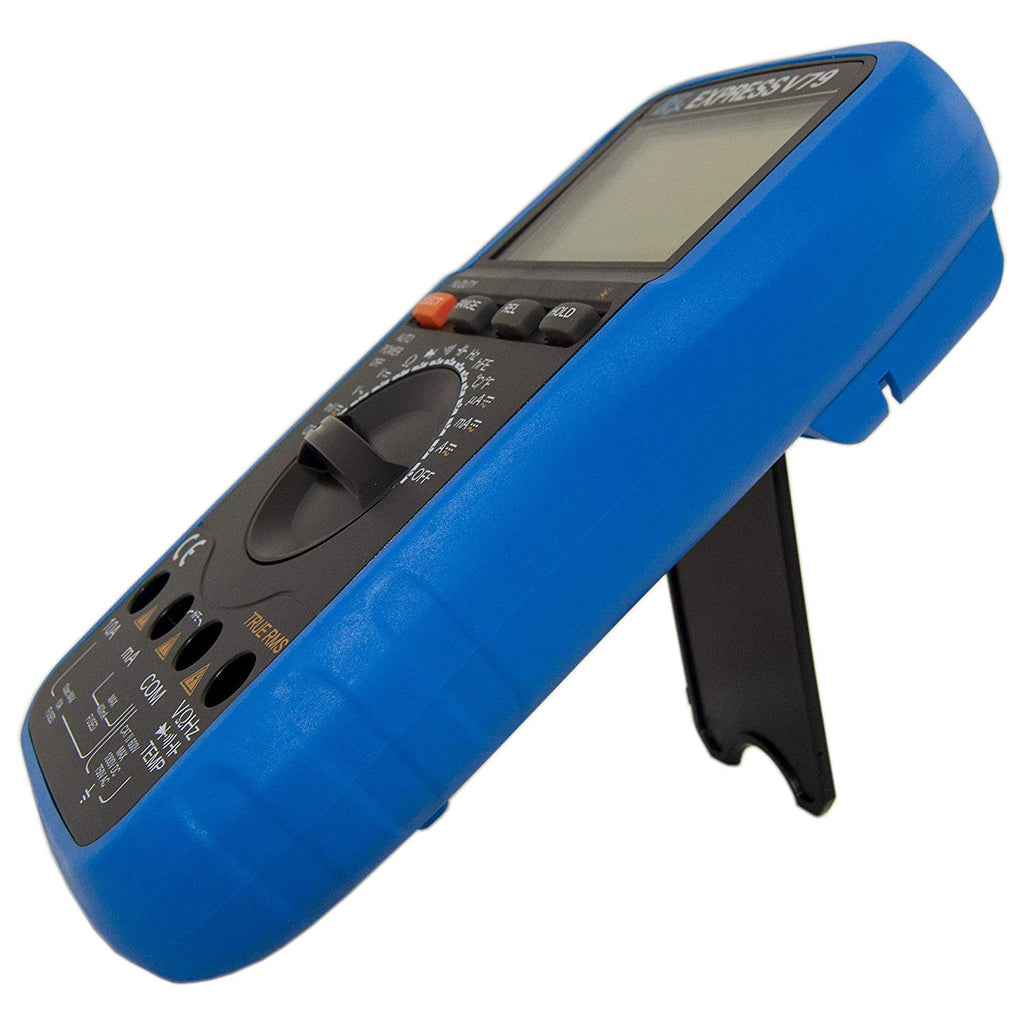

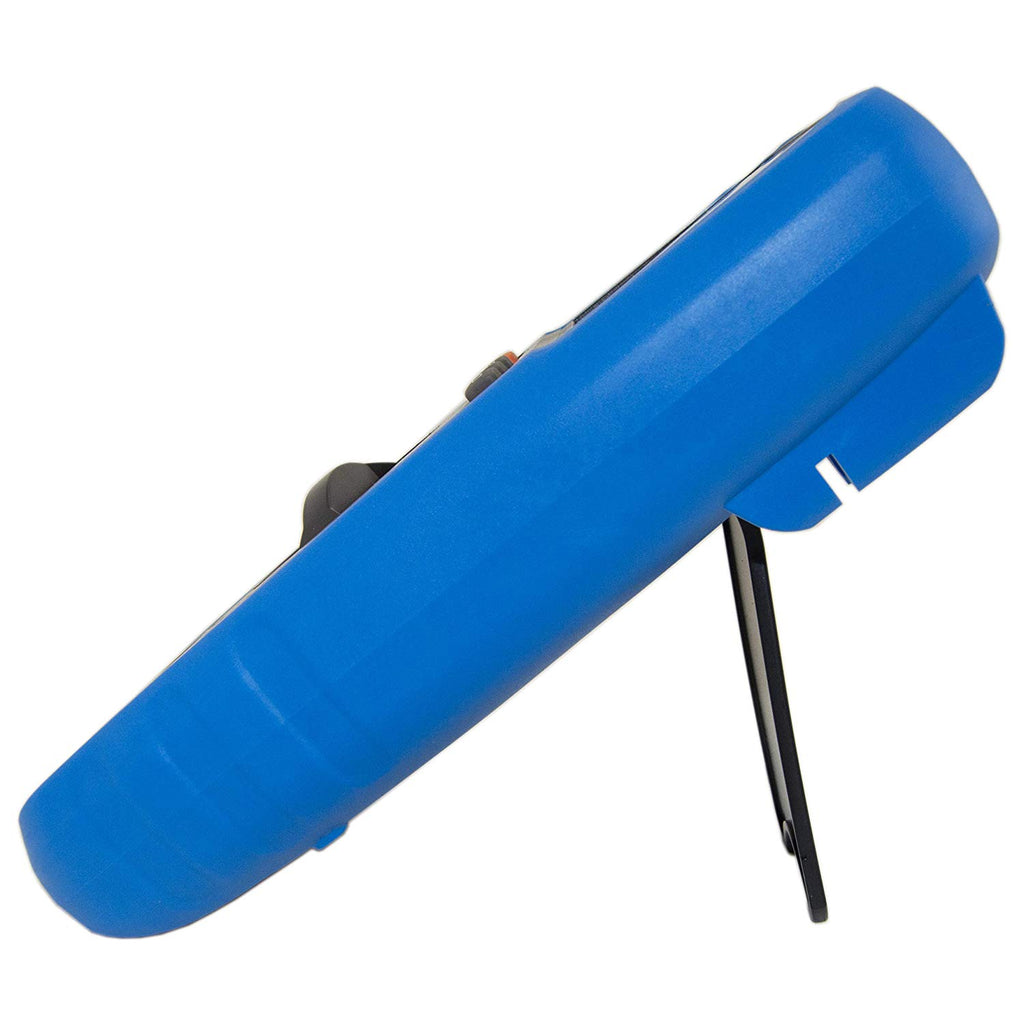

Electronix Express V79 Auto Ranging True RMS Digital Multimeter

The V79 is a True RMS full featured digital multimeter as well as a thermometer. This is an auto ranging meter that will give a reading when you plug it in at any time. Features a 3 3/4 digit display that reads 3999, giving you a much higher accuracy than a meter with a reading at 1999 only. The backlight on the LCD provides convenience when operating in the dark and the auto power off feature helps preserve the battery. Includes a pair of test leads and a set of thermocouples. The V79 is powered by a 9 V battery (included). You can use this meter to measure AC/DC voltage and current, resistance, capacitance, frequency and temperature both in Fahrenheit and Celsius.

Features:

• Measures AC/DC voltage and current, resistance, capacitance, frequency and temperature both in Fahrenheit and Celsius
• Backlight on the LCD allows for operation in the dark
• 3 3/4 digit display that reads 3999
• Sampling rate: Approximately 3 times per second

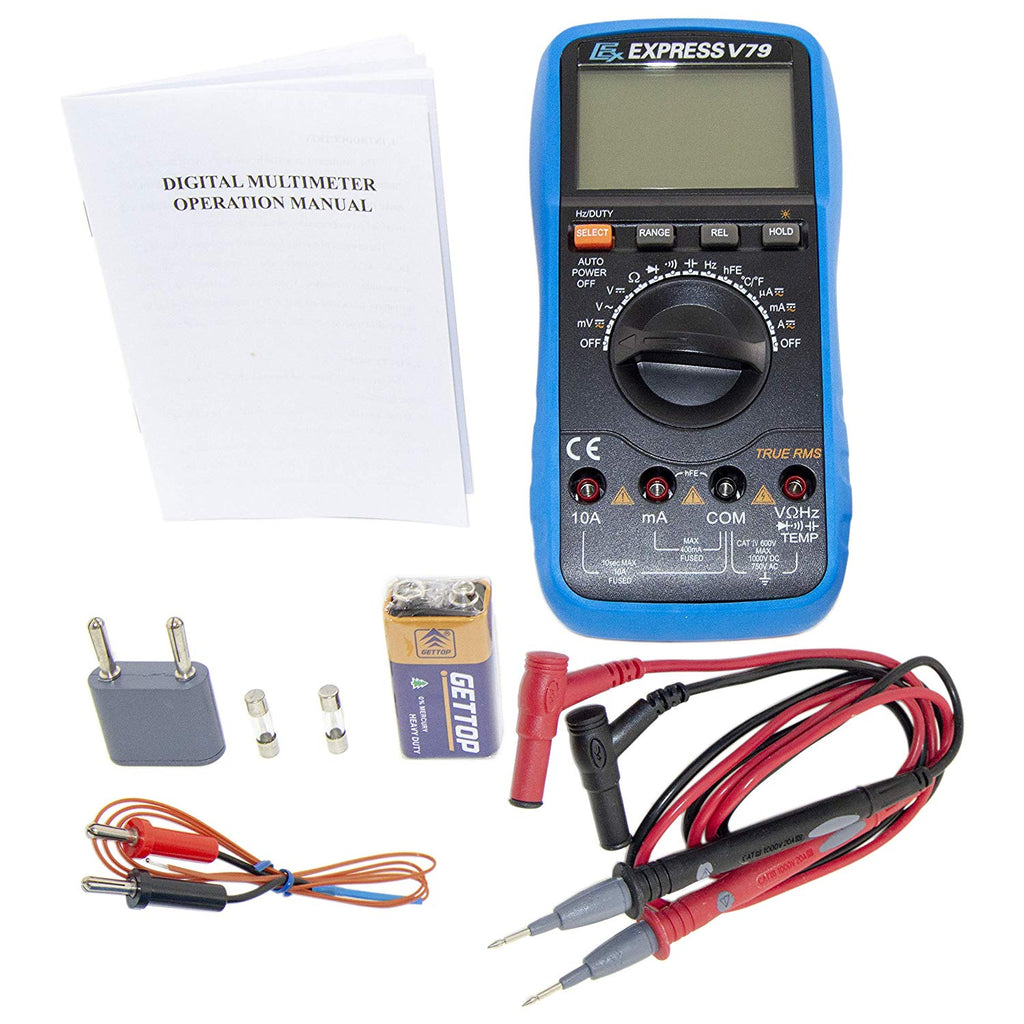

• Includes test leads, thermocouple, holster, 9v battery, and operation manual

Specifications:

• DCV: 0-400m-4-40-400-(±0.5%)-1kV(±1.0%)
• ACV: 0--400mV(±1.5%)-4-40-400V(±0.8%)-750V±1.5%
• DCA: 0-400uA-4000uA-40m(±1.2%)-10A(±2.0%)
• ACA(True RMS): 0-400uA-4000uA-40mA-400mA(±1.5%)-10A(±2.0%)
• Resistance: 0-400-4k-40k-400k-4M(±0.8%)-40M(±1.2%)ohm
• CAP: 0-20nF-100nF-10uF-100uF(±3.5%)1mF/10mF/100mF (±5.0%)
• Frequency: 0-100Hz-1000Hz-10KHz-1MHz-30MHz(±0.5%)
• Temperature: C: -40 ºC - 1000ºC
• Transistor and Diode test Audible continuity:< 70 ohm
• True RMS 3 /34 Digits High Accuracy Multimeter with Capacitance and Frequency and Temperature
• Back Light for Use in Dark, With a pair of High Quality Test Leads. It checks Transistor hFE
• Temperature Measurement in F or C using the included thermocouple
• Data Hold and Relative Measurement, Auto Power Off for Power Saving
• Product Dimensions (L x W x H): 3.48 x 259 x 7.48 MM
• Product Weight: 0.19 LB
