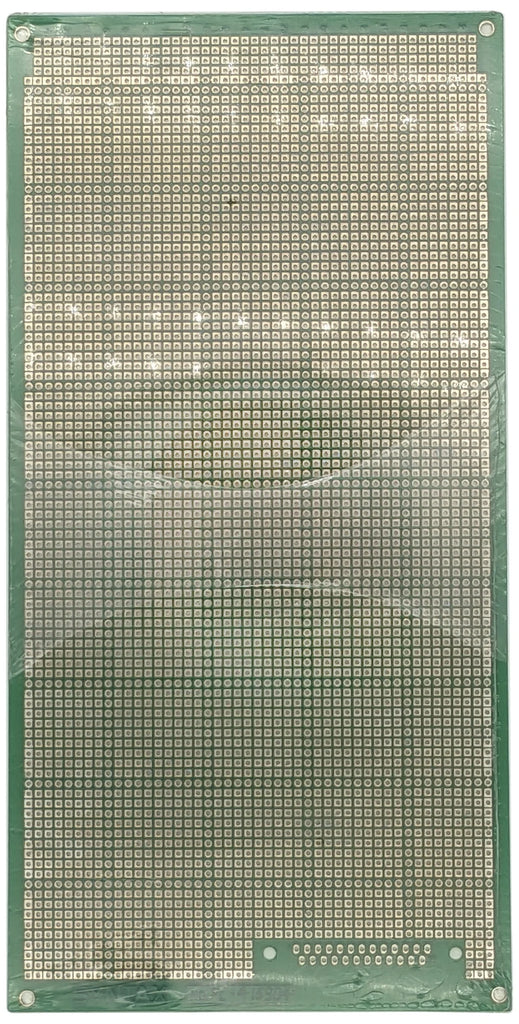

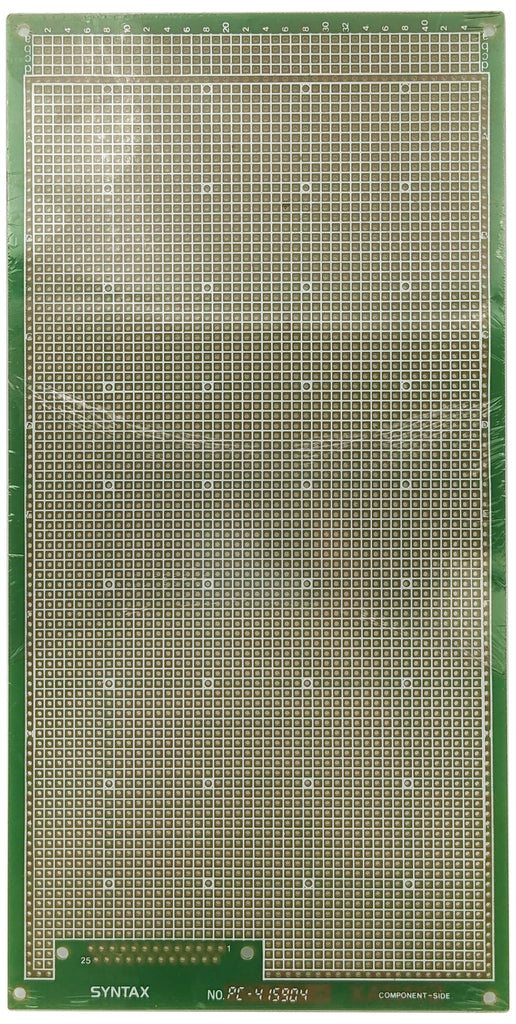

Single sided pads. Four separate busses. Silk-screened legend on component side indicates foil pattern on solder side. I/O connector area. Holes provided for DB-25 footprint.
