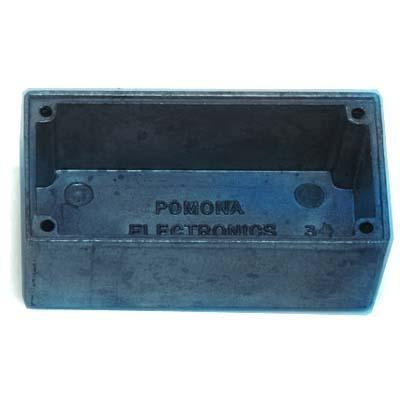

The Pomona Model 2417 is a Size B die-cast aluminum shielded box measuring 2.25" x 1.38" x 1.13" (57 x 35 x 29 mm) with a blue finish and an aluminum cover with screws. It is used to build shielded test fixtures, filters and prototype signal circuits that need RFI/EMI protection.
- Model: Pomona 2417 (Size B)
- Outside dimensions: 2.25" L x 1.38" W x 1.13" H (57 x 35 x 29 mm)
- Housing: die-cast aluminum alloy A380 or A384, blue finish
- Cover: aluminum, included with cover screws
- Connectors: none (blank box, drill to suit)
- Provides RFI/EMI shielding when used with the included cover
- Ideal for circuitry prototyping; securely seal signal-sensitive cables and wires
Frequently Asked Questions
What size is the Pomona 2417 box?
The Pomona 2417 measures 2.25" L x 1.38" W x 1.13" H (57 x 35 x 29 mm) and has no connectors installed, so you can drill it for your own jacks.
