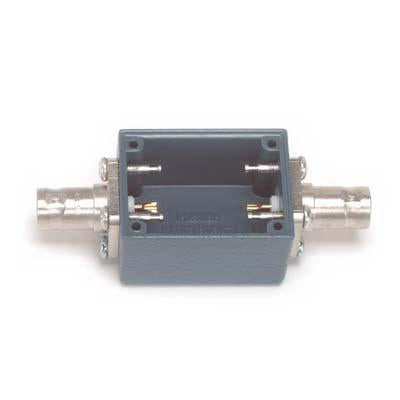

The Pomona Model 3751 is a Miniature die-cast aluminum shielded box measuring 1.50" x 1.13" x 0.88" (38 x 29 x 22 mm) with a blue finish and an aluminum cover with screws, fitted with 2 BNC (F) connectors (50 ohm, 500 Vrms max). It is used to build shielded test fixtures, filters and prototype signal circuits that need RFI/EMI protection.
- Model: Pomona 3751 (Miniature)
- Outside dimensions: 1.50" L x 1.13" W x 0.88" H (38 x 29 x 22 mm)
- Housing: die-cast aluminum alloy A380 or A384, blue finish
- Cover: aluminum, included with cover screws
- Connectors: 2 BNC (F), 50 ohm nominal impedance, 500 Vrms max
- Provides RFI/EMI shielding when used with the included cover
- Ideal for circuitry prototyping; securely seal signal-sensitive cables and wires
Frequently Asked Questions
What size is the Pomona 3751 box?
The Pomona 3751 measures 1.50" L x 1.13" W x 0.88" H (38 x 29 x 22 mm) and comes with 2 BNC (F) connectors installed.
