Banana Test Connector, Jack, Panel Mount Model - 4005-2, 3 A, 2.5 kV, Nickel Plated Contacts, Red

SKU: 034005-2

  • Sale
  • Regular price $5.30

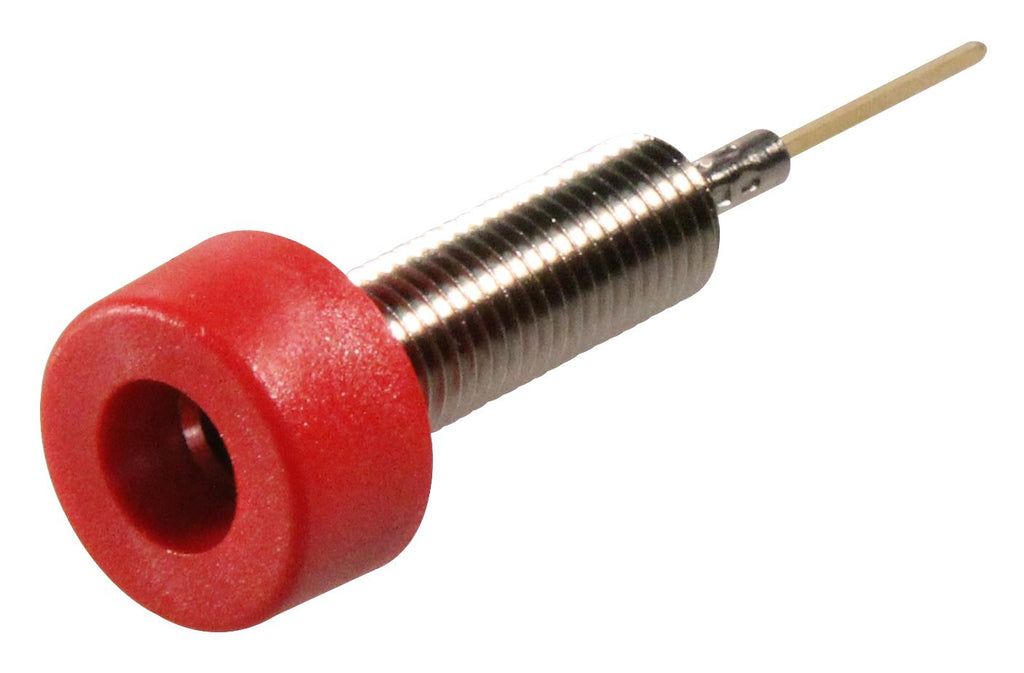

The 4005-2 from Pomona is a insulated banana jack with wire wrapped terminal. It can be mounted on panel where thickness is ranging from 1.6mm (0.063inch) to 9.53mm (0.375inch).

  • Nickel plated brass body
  • Gold plated phosphor bronze terminal
  • Red color polycarbonate insulator and mounting base
  • Steel lock washer and brass hex nut
  • Maximum hand held testing of 30VAC/60VDC
  • Hand free testing in controlled voltage environment is 2500WVDC maximum
  • Maximum operating temperature is 115°C
  • Current rating is 3A
