Premium Solderless Breadboard, 830 Tie Points, High Temperature, 6.5" x 2.14", Light Blue Color

SKU: 03MB702HT

  • Sale
  • $8.75

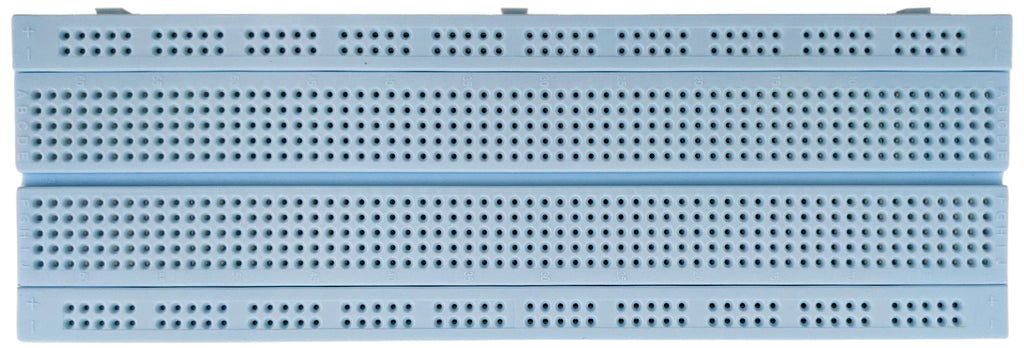

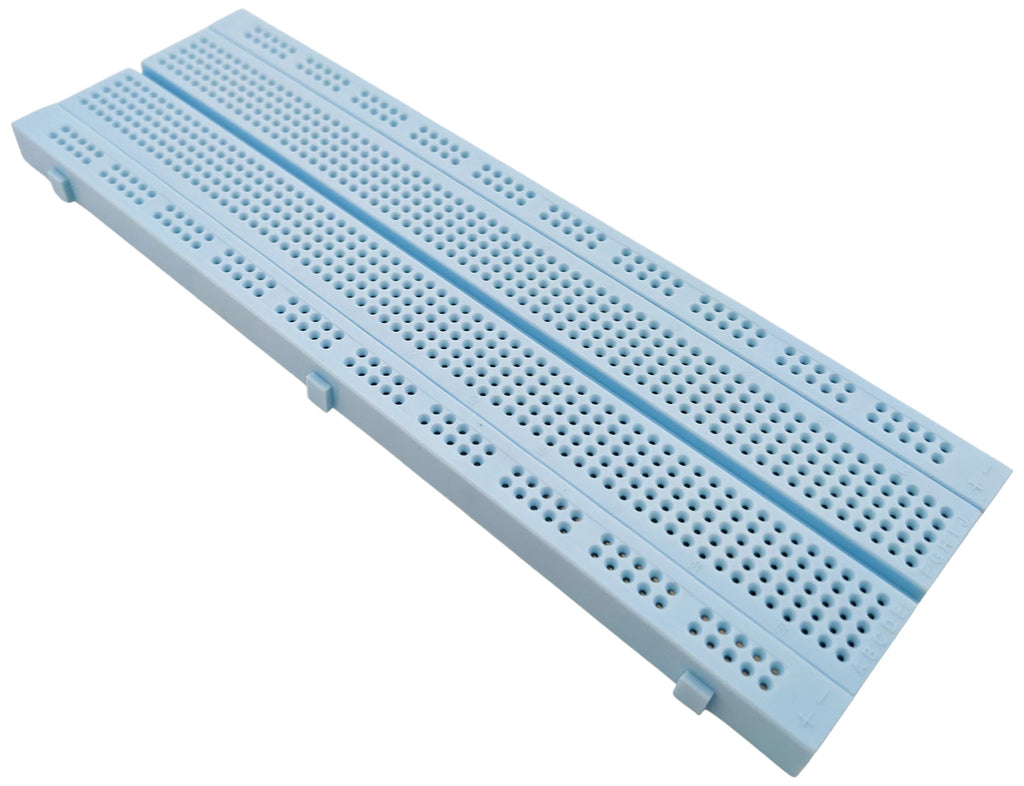

  • High Temperature Solderless Breadboard with 830 tie points
  • 1 Terminal strip, 630 tie-point
  • 2 Distribution strips, 200 tie-point
  • Heat distortion temperature: 150℃
  • Embossed legend with numbers (in increments of 5) and letters for columns and rows, along with + / - indication on the power rails

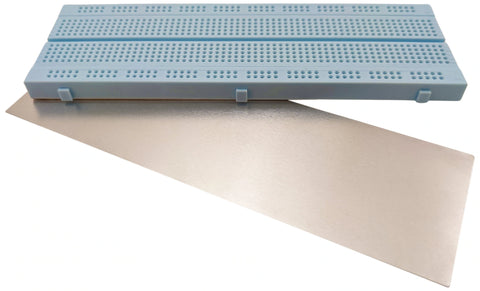

  • POM (Silicone) plastic construction, light blue color. Features a peelable adhesive tape backing for attaching it to a surface and an optional metal back plate is included.
  • Board measures: 164 x 52 x 0.3mm
  • Optional backplate measures: 165.1 x 54.6 x 8.5mm
