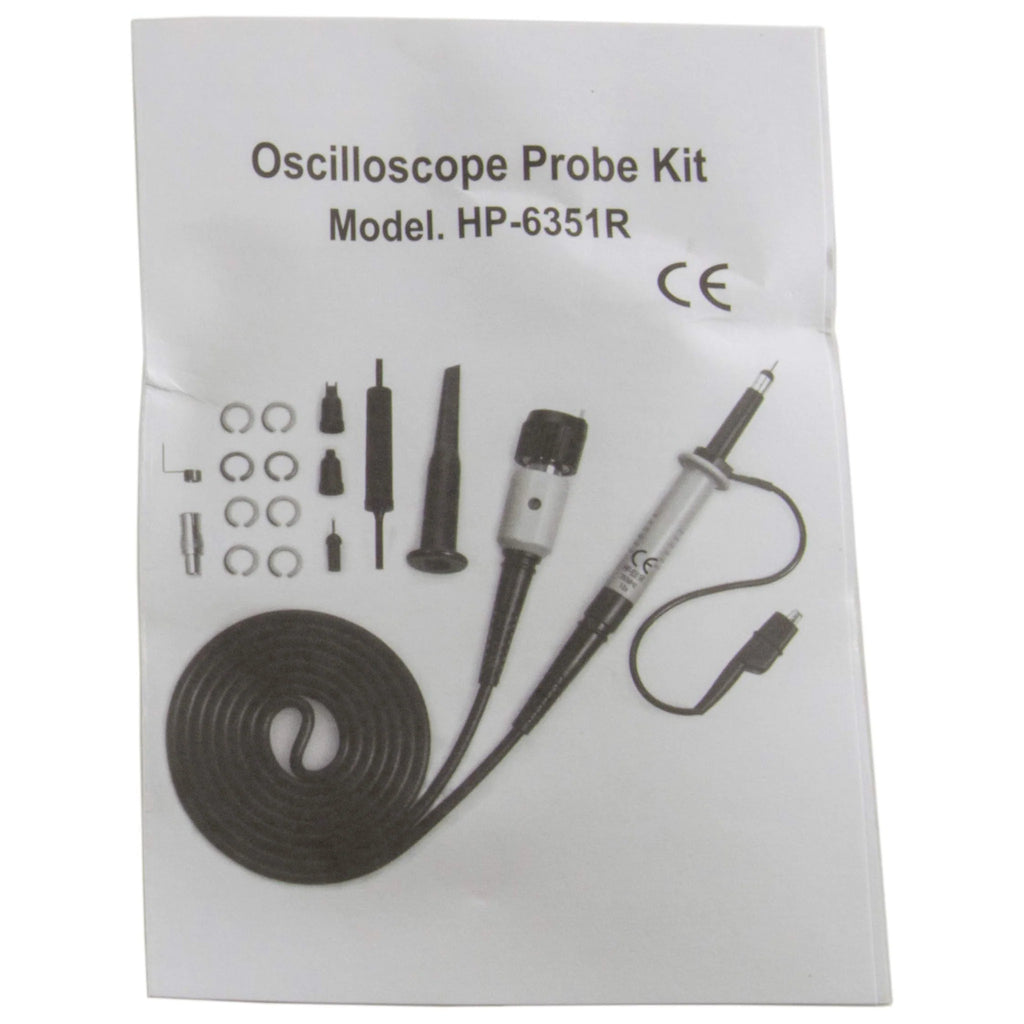

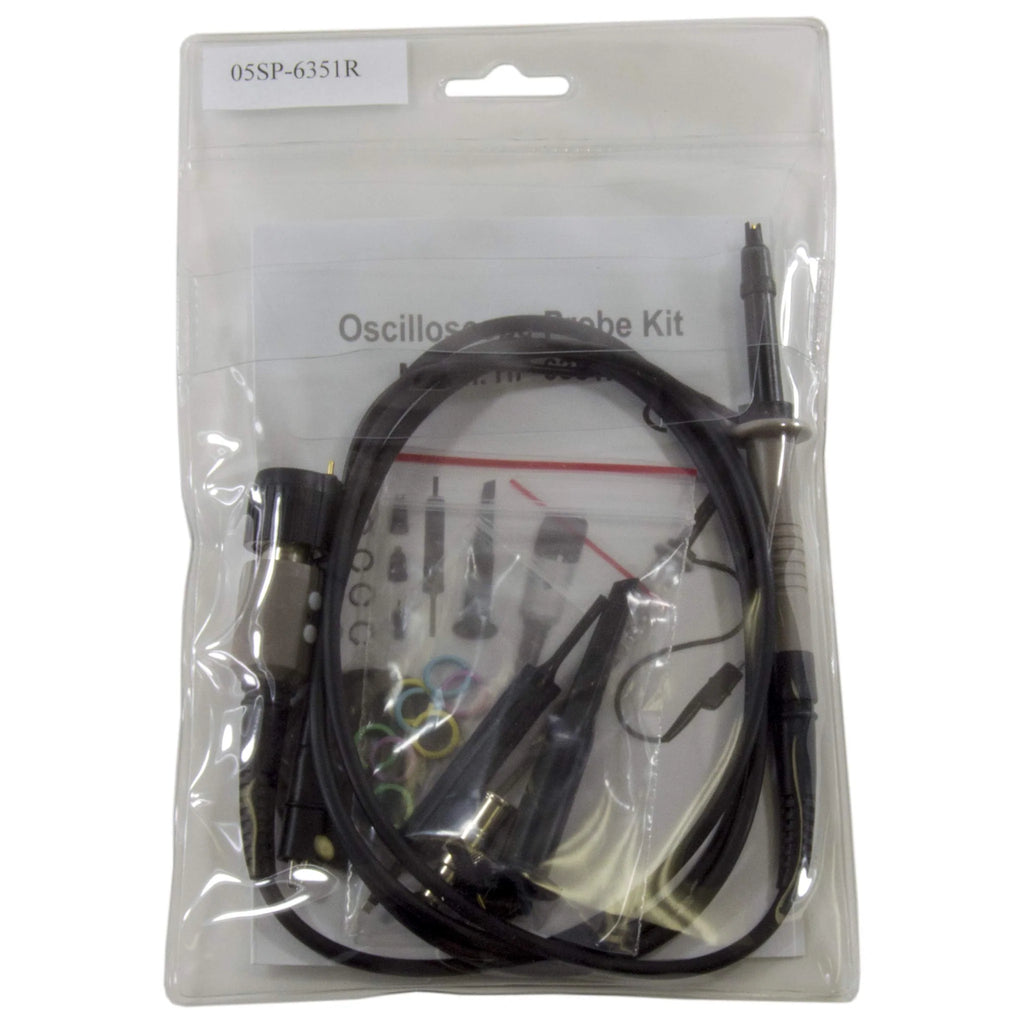

350 MHz Oscilloscope Scope Probe with Readout Actuator Pin, Fixed x10 Attenuation, Includes Accessory Set

SKU: 05SP6351R

  • Sale
  • Regular price $36.95


The HP-6351R is a passive high impedance oscilloscope probe designed and calibrated for use with instruments having an input impedance of 1 MΩ shunted by 15 pF. However, it may be compensated for use with instruments having an input capacitance of 10 to 25 pF. The HP-6351R is also compatible with readout function oscilloscopes that automatically detect probe attenuation and adjust the scale readout accordingly.

Compatible with Tektronix scopes.


Features:

  • Fixed x10 attenuation with readout actuator pin - compatible with readout function oscilloscopes that automatically detect and display the attenuation factor of the probe
  • Bandwidth: DC to 350 MHz
  • Rise time: 1.0nS (350 MHz), Compensation Range: 10-25 pF
  • Cable length: 1.2 meter

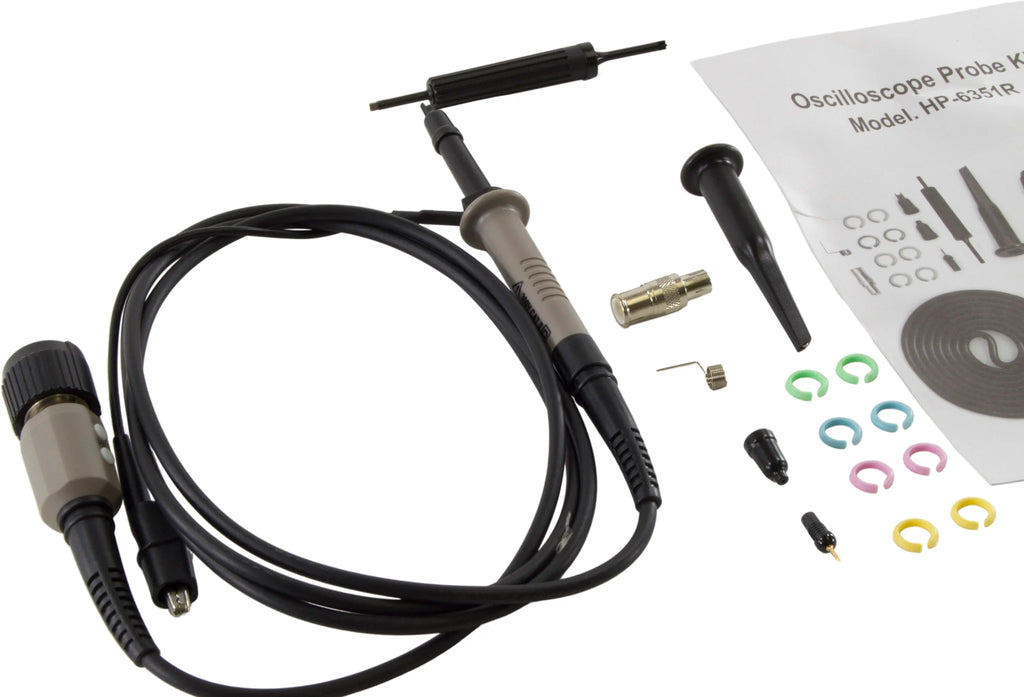

  • Includes Probe, Channel Identifier Clips, Sprung Hook, Ground Lead, Insulating Tip, IC Tip, Adjusting Tool, Measuring Tip, Sprung Earth Tip, BNC Adapter, and Probe Tip Cover

Specifications:

  • Attenuation Ratio: 10:1
  • Bandwidth: DC to 350MHz
  • Rise Time: 1.0nS
  • Input Resistance: 10MΩ when used with oscilloscopes which have 1MΩ input.
  • Input Capacitance: Approx. 11.5 pF
  • Compensation Range: 10 to 25 pF

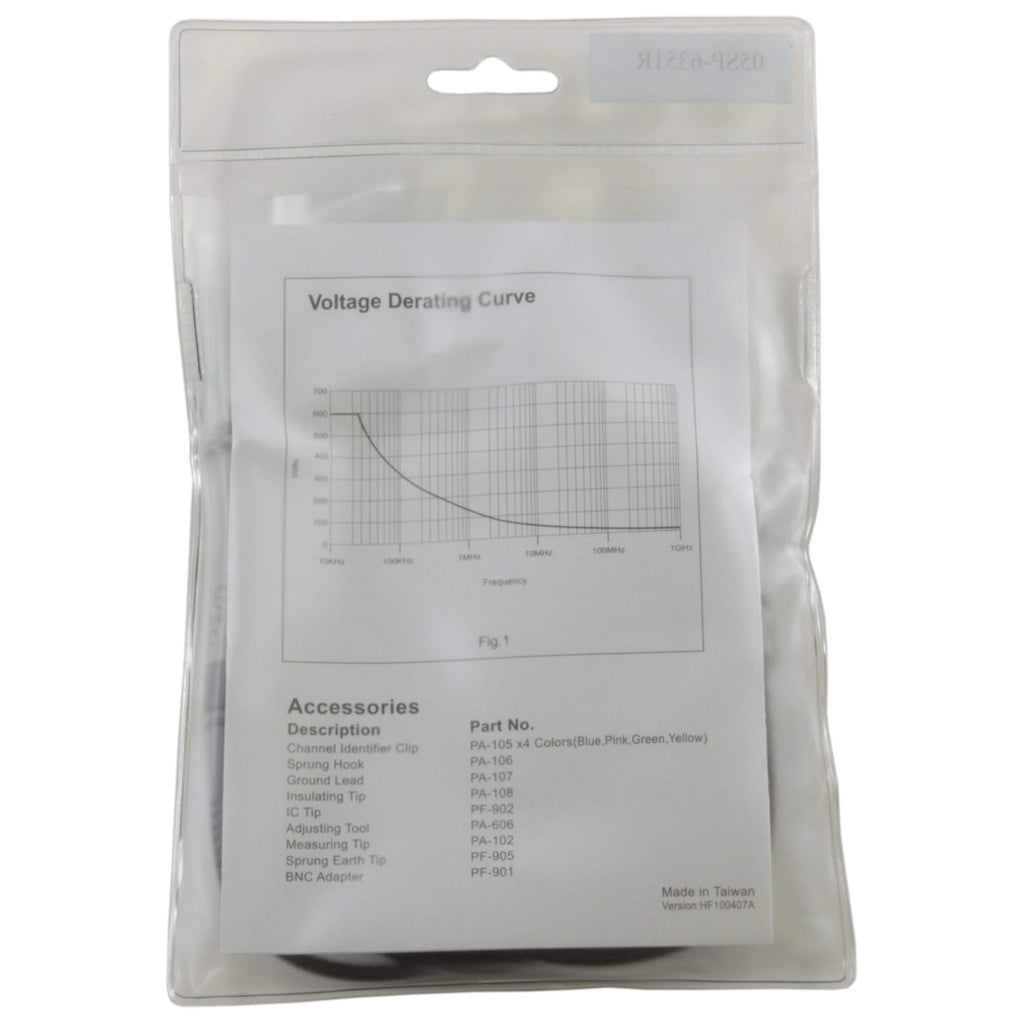

  • Max. Input Voltage: 600V CAT I, 300V CAT II (DC + peak AC) derating with frequency
  • Safety: Meets EN61010-031 CAT II
  • Cable Length: 1.2 Meter

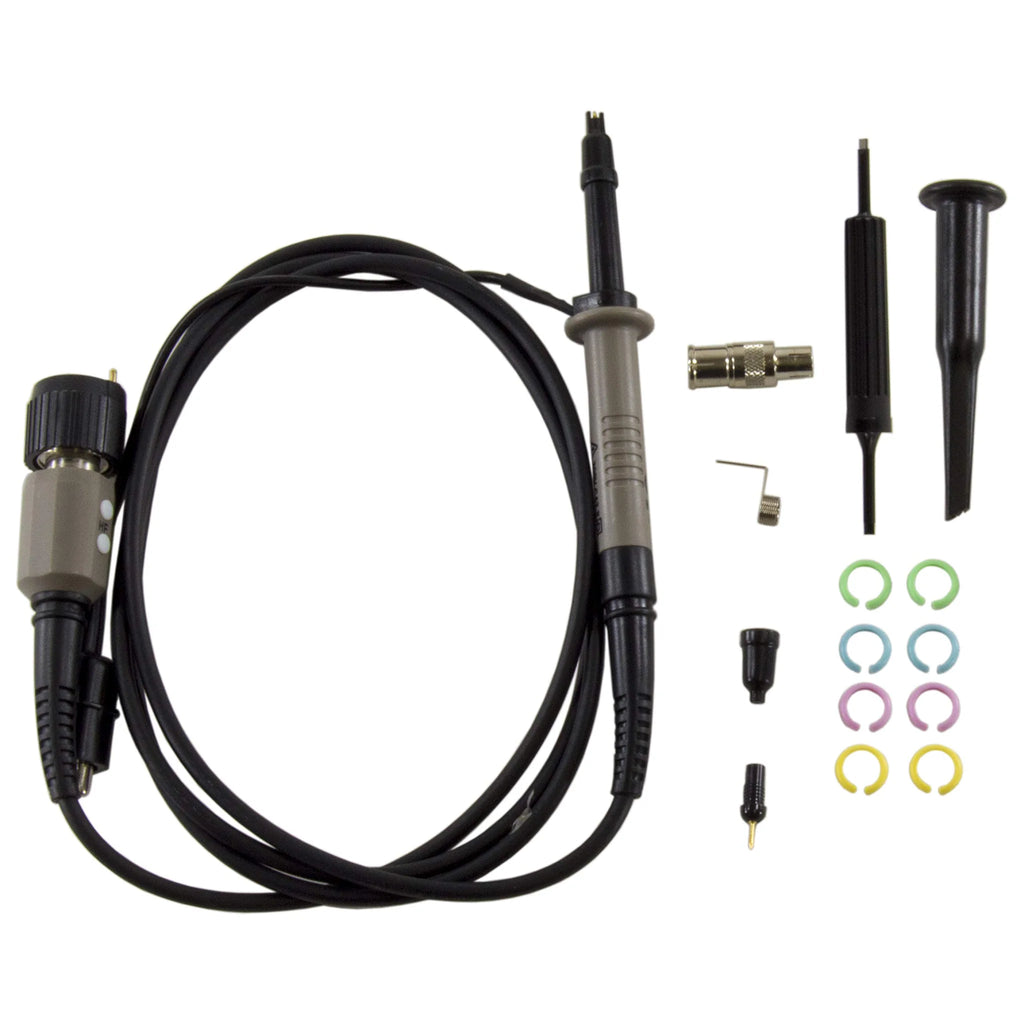

Included Accessories:

  • Channel Identifier Clips (2 Blue, 2 Pink, 2 Green, and 2 Yellow)
  • Sprung Hook
  • Ground Lead
  • Insulating Tip
  • IC Tip
  • Adjusting Tool
  • Measuring Tip
  • Sprung Earth Tip
  • BNC Adapter
