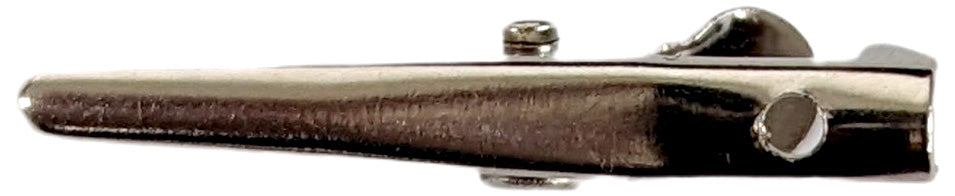

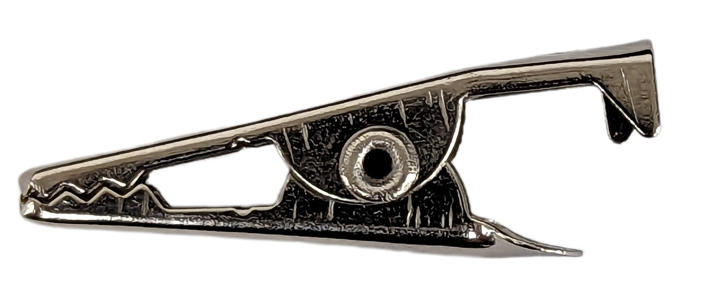

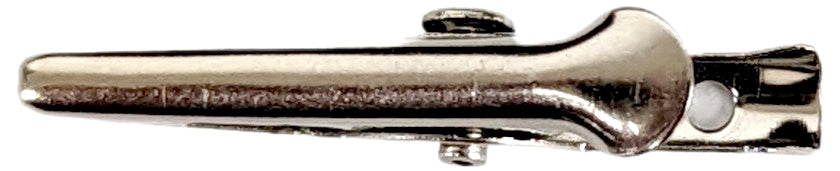

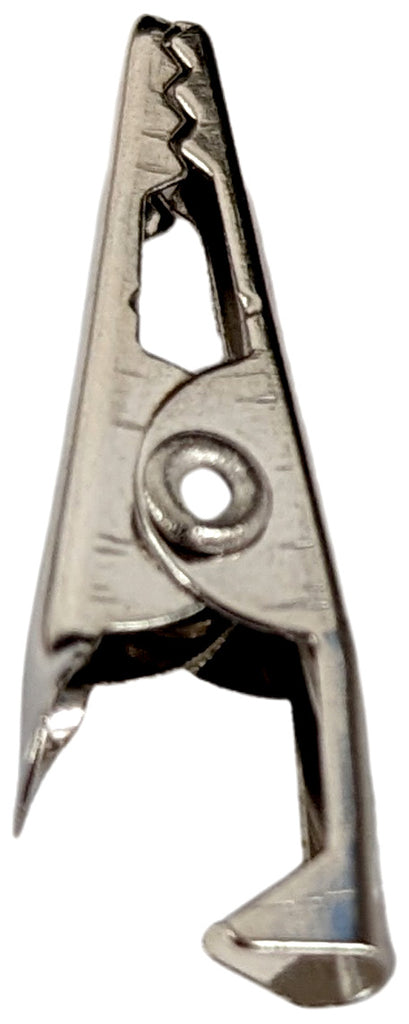

Alligator Clip Solder Type, 1.09 Inches Long, Equivalent to Mueller Electric’s BU-30, RoHS Compliant

SKU: 0700AC30

  • Sale
  • Regular price $0.18

This alligator clip solder type has impressive specifications. Its 1.09-inch length is equivalent to Mueller Electric's BU-30 and it is compliant with RoHS standards. A reliable choice for professionals.


  • Equivalent to Mueller Electric’s BU-30
  • Nickel-plated steel clip, crimp/solder for wire connection
  • Type: Alligator, Miniature
  • Material: Stainless Steel Plating
  • Non-Insulated
  • Termination: Solder
  • Overall length (no barrel): 1.09” (27.69mm)
  • Overall width: 0.2” (5.08mm)
  • Overall height: 0.31” (7.87mm)
  • Maximum jaw spread: 0.188” (4.8mm)
  • Can connect to wire up to 18 AWG via crimp, solder, or 6-32 threaded connections
  • Current Ratings: 5 Amps
  • RoHS Compliant
