Black Panel Mount 4mm Banana Jack Connector (1581-0)

SKU: 07021581BK

  • Sale
  • Regular price $2.99

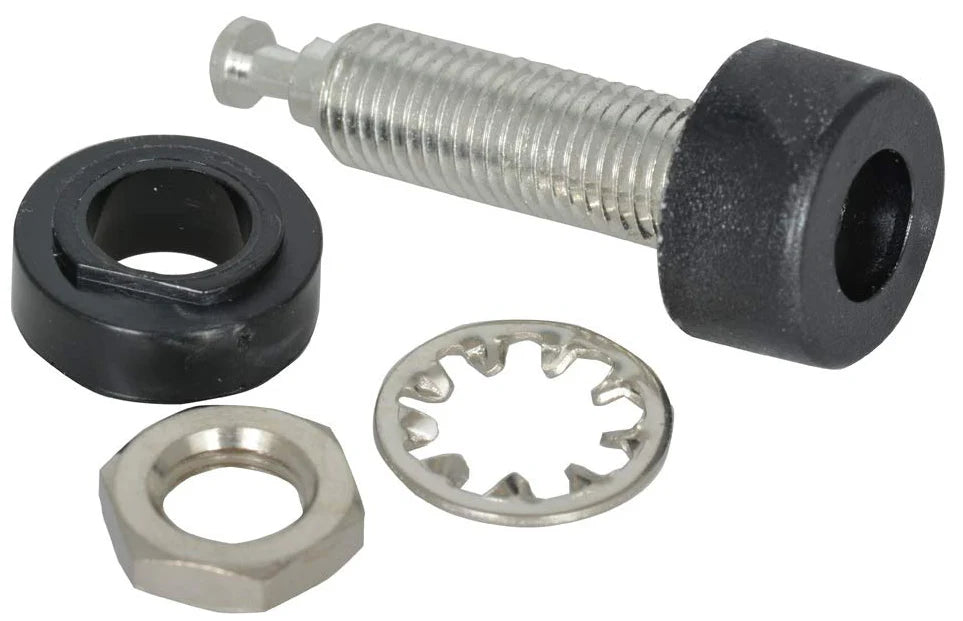

  • Note: Sold individually, unassembled (body, insulator, lockwasher, and hex nut)

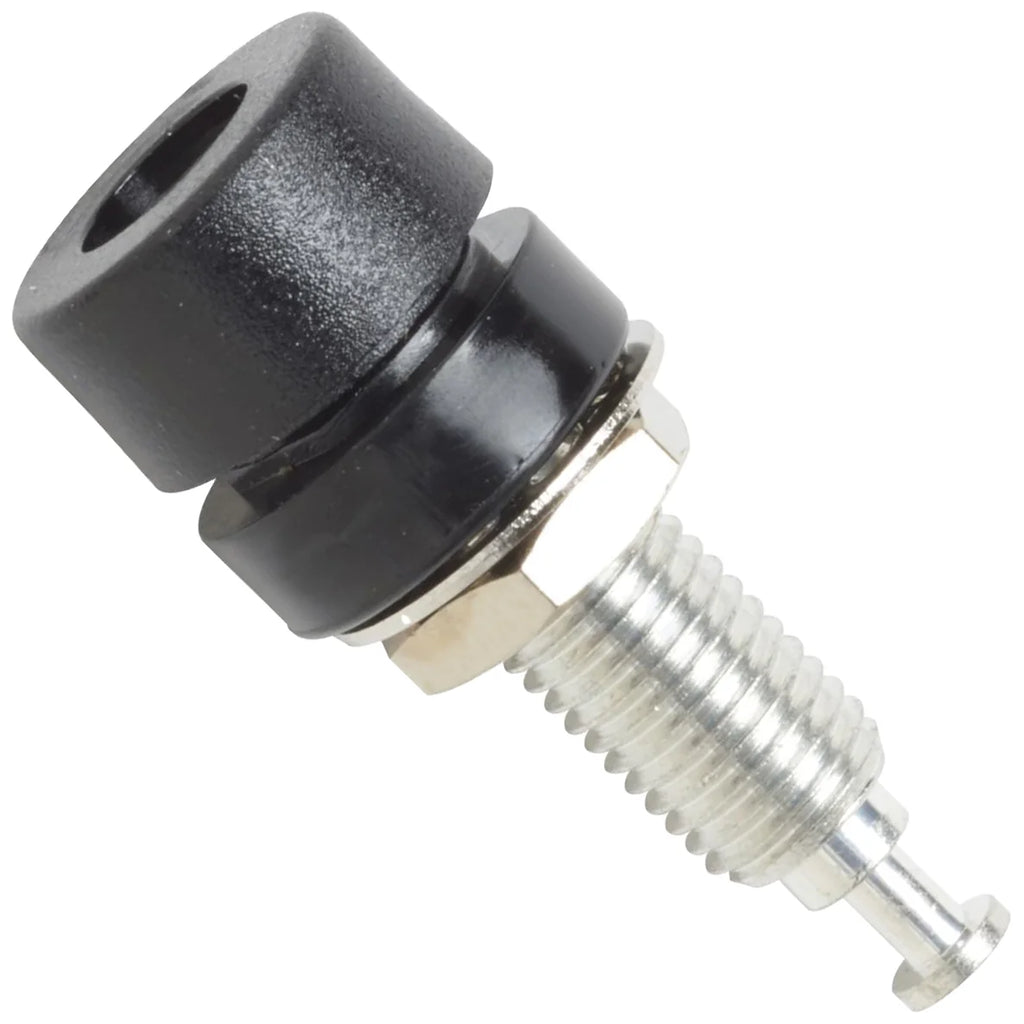

  • Black banana jack for standard 4mm banana plugs

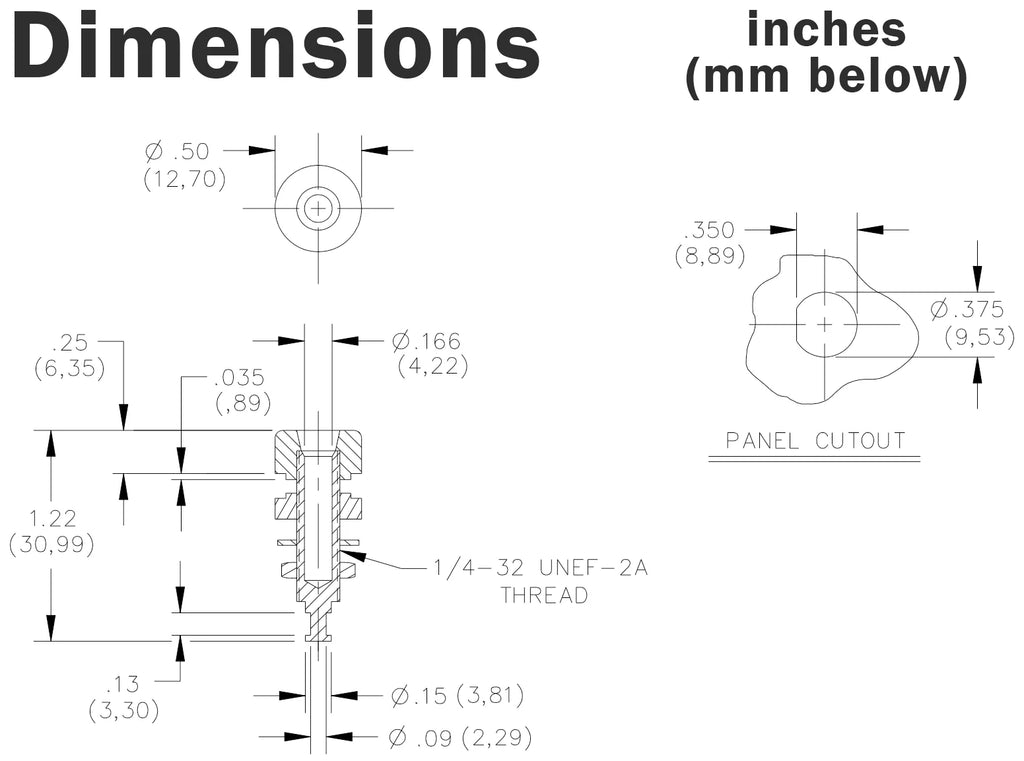

  • Mount into panels ranging in thickness from 0.063" (1.6mm) to 0.375" (9.5mm)
  • 1.22" overall length
  • Ratings:
    • Operating Voltage:
      • For CE compliance and for personal safety, do not hold in hand when voltages exceed 30 Vrms/60 Vdc. Do not use on circuits where transient stresses can exceed the rated voltage.
      • Hand-held Testing: 30VAC/60VDC Max.
      • Hand Free Testing in controlled Voltage Environment: 2500 WVDC.
    • Operating Temperature: +115°C (+239°F)
    • Current: 15 Amperes
  • Materials:
    • Banana Jack: Body - Brass, Tin Plated
    • Insulators: Polycarbonate
    • ¼ Internal Locking Washer: Steel, Nickel Plated
    • ¼-32 Hex Nut: Brass, Nickel Plated
