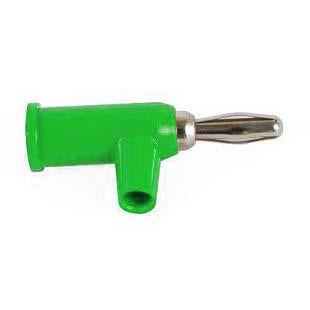

Banana Plug Stack Up With Safety Collar, Solderless, Green (1825-5)
SKU: 07031825-5
Sale
Regular price
$3.95
Description
Description
Features:
Color: Green (1825-5)
Designed to fit on the end of any 22 AWG to 18 AWG wire.
Cross hole wire entry fits wires up to .12” (3mm) diameter.
Available with tarnish resistant nickel or gold plating for very low contact resistance.
Model 4899 is rated to temperatures up to +302°F (+150°C).
Set screw simplifies assembly of test leads and jumpers by using a flat blade screwdriver.
Fits standard panel and binding post banana jacks .161” to .166” (4,0mm to 4,2mm) diameter.
Materials:
Banana Jack: Zinc Die Cast, Nickel Plated (Model 4897 is Gold Plated)
Banana Plug:
Body – Zinc Die Cast, Nickel Plated (Model 4897 is Gold Plated)
Spring – Beryllium Copper, Nickel Plated (Model 4897 Gold Plated)
Insulation: Polypropylene (Model 4899 is Polyphenylene Sulfide)
Set Screw: Steel, Zinc Plated, 8-32 Single Slot
Ratings:
Voltage: For CE compliance and for personal safety, do not hold in hand when voltages exceed 30 Vrms/60 Vdc. Maximum voltage for hands free use in controlled testing environments: 5000 Vrms Max. Do not use on circuits where transient stresses can exceed the rated voltage.
