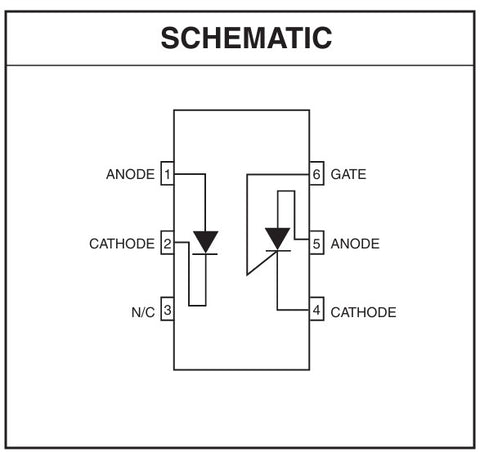

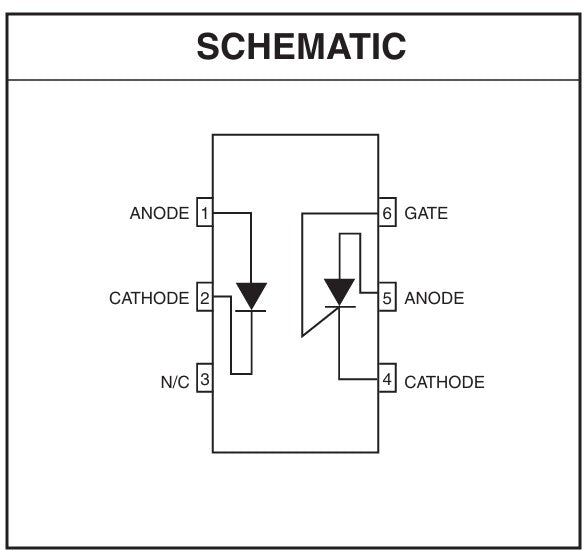

The H11C series consists of a gallium-arsenide infrared emitting diode optically coupled with a light activated silicon controlled rectifier in a dual-in-line package.
Features:
- High efficiency, low degradation, liquid epitaxial LED
- 200V/400V Peak blocking voltage
- High isolation voltage - 5300V AC (RMS)
Applications:
- Low power logic circuits
- Telecommunications equipment
- Portable electronics
- Solid state relays
- Interfacing coupling systems of different potentials and impedances.
- 10 A, T2L compatible, solid state relay
- 25 W logic indicator lamp driver
- 200 V symmetrical transistor coupler
