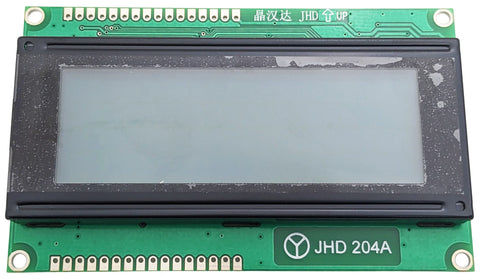

20 x 4 Dot Matrix Backlit LCD Module with Driver & Controller, Measures 98x60x9.5mm (JHD629-204A)
20 x 4 Dot Matrix Backlit LCD Module with Driver & Controller, Measures 98x60x9.5mm (JHD629-204A)
20 x 4 Dot Matrix Backlit LCD Module with Driver & Controller, Measures 98x60x9.5mm (JHD629-204A)
20 x 4 Dot Matrix Backlit LCD Module with Driver & Controller, Measures 98x60x9.5mm (JHD629-204A)
20 x 4 Dot Matrix Backlit LCD Module with Driver & Controller, Measures 98x60x9.5mm (JHD629-204A)
20 x 4 Dot Matrix Backlit LCD Module with Driver & Controller, Measures 98x60x9.5mm (JHD629-204A)
20 x 4 Dot Matrix Backlit LCD Module with Driver & Controller, Measures 98x60x9.5mm (JHD629-204A)
20 x 4 Dot Matrix Backlit LCD Module with Driver & Controller, Measures 98x60x9.5mm (JHD629-204A)
20 x 4 Dot Matrix Backlit LCD Module with Driver & Controller, Measures 98x60x9.5mm (JHD629-204A)
20 x 4 Dot Matrix Backlit LCD Module with Driver & Controller, Measures 98x60x9.5mm (JHD629-204A)

Electronix Express

20 x 4 Dot Matrix Backlit LCD Module with Driver & Controller, Measures 98x60x9.5mm (JHD629-204A)

SKU: 08LCD15

  • Sale
  • $19.95
  • Dot Matrix Backlit LCD Module with Driver & Controller (Model 08LCD15).
  • Display Format: 20 Characters x 4 Lines
  • Reflective; Positive, Gray
  • Duty Cycle: 1/16; 5 x 7 Dots
  • Character Size: 2.95 x 4.75mm
  • Module Size: 98 x 60 x 9.5mm
  • Includes driver and controller

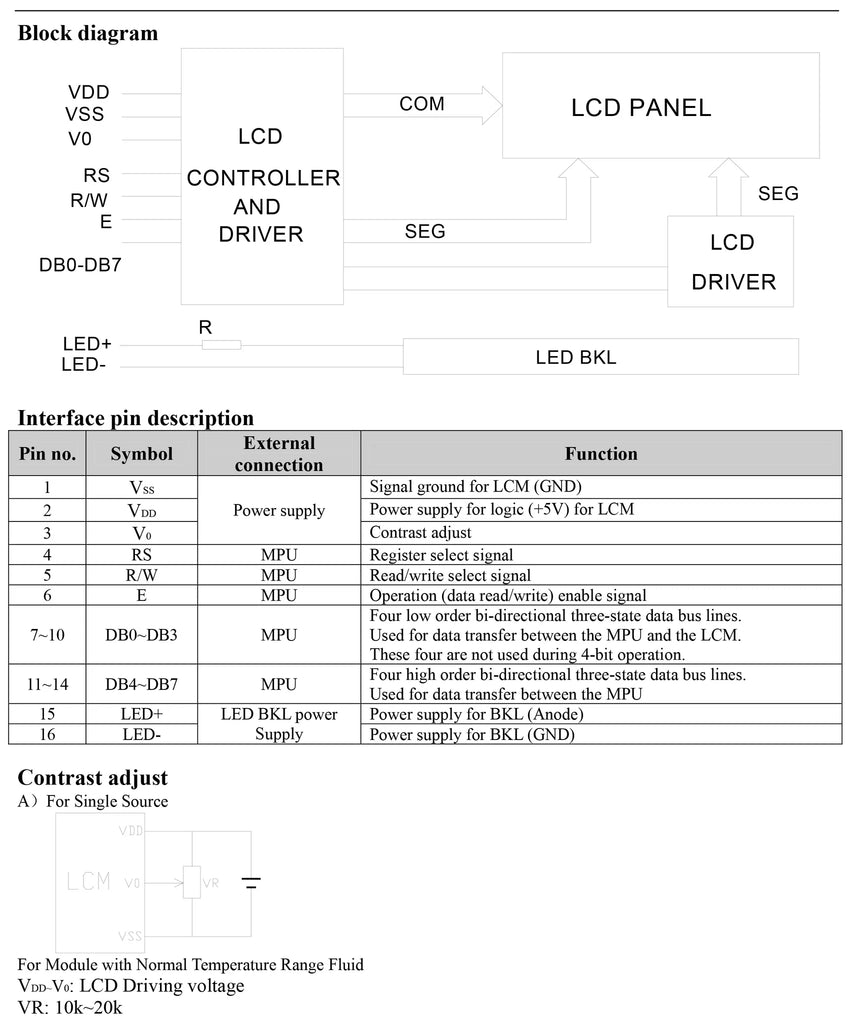

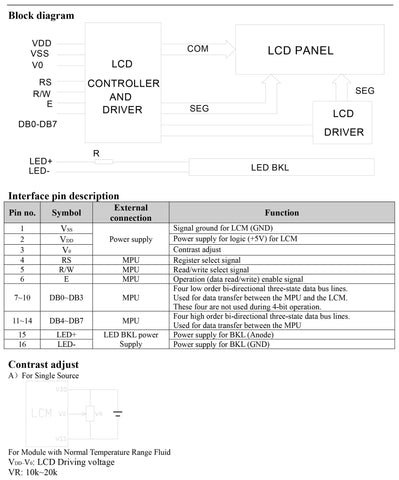

Datasheet
