Electronix Express

Common Anode 2 Digit 18 Pin Red LED 7-Segment Display

SKU: 08TIE524

  • Sale
  • $1.05
  • 2 Digit Red Common Anode LED Digital Display
  • Display Type: 7-Segment Numeric, Digit Size: 0.56"
  • 18 Pins, 18-DIP Package, 0.6" (15.24mm) Row to Row Distance

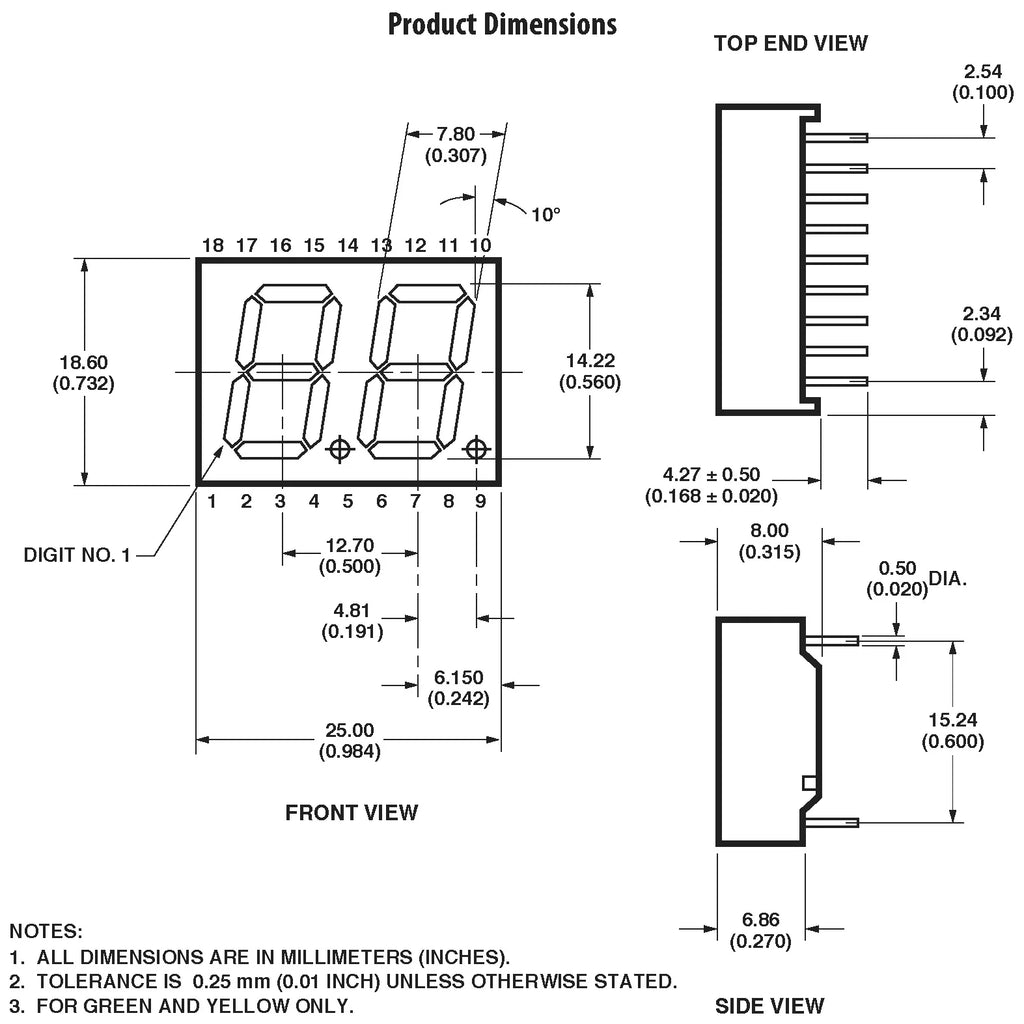

  • Overall size: 0.98" x 0.31" x 0.73" (25mm x 8mm x 18.6mm)

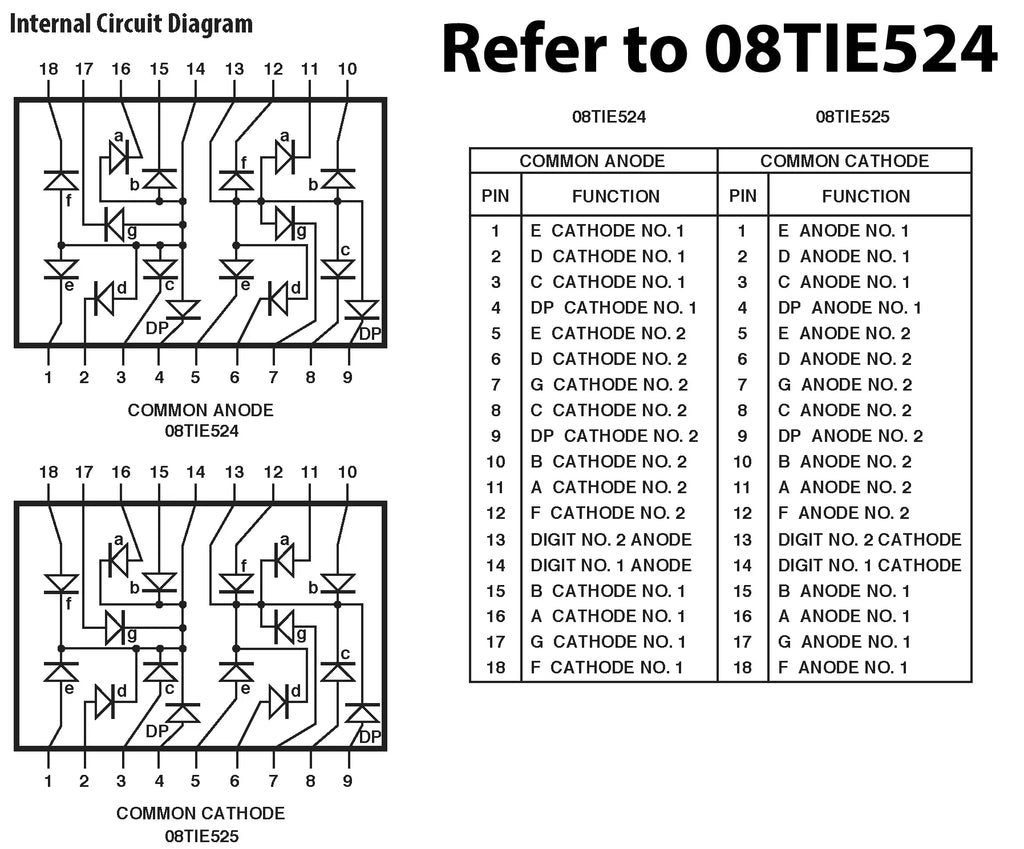

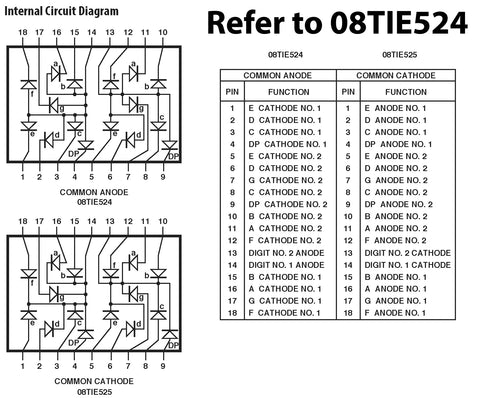

  • Ideal for DIY projects that display numbers such as clocks, electronic meters, and more. Please refer to the product photos for a circuit diagram.

Datasheet
