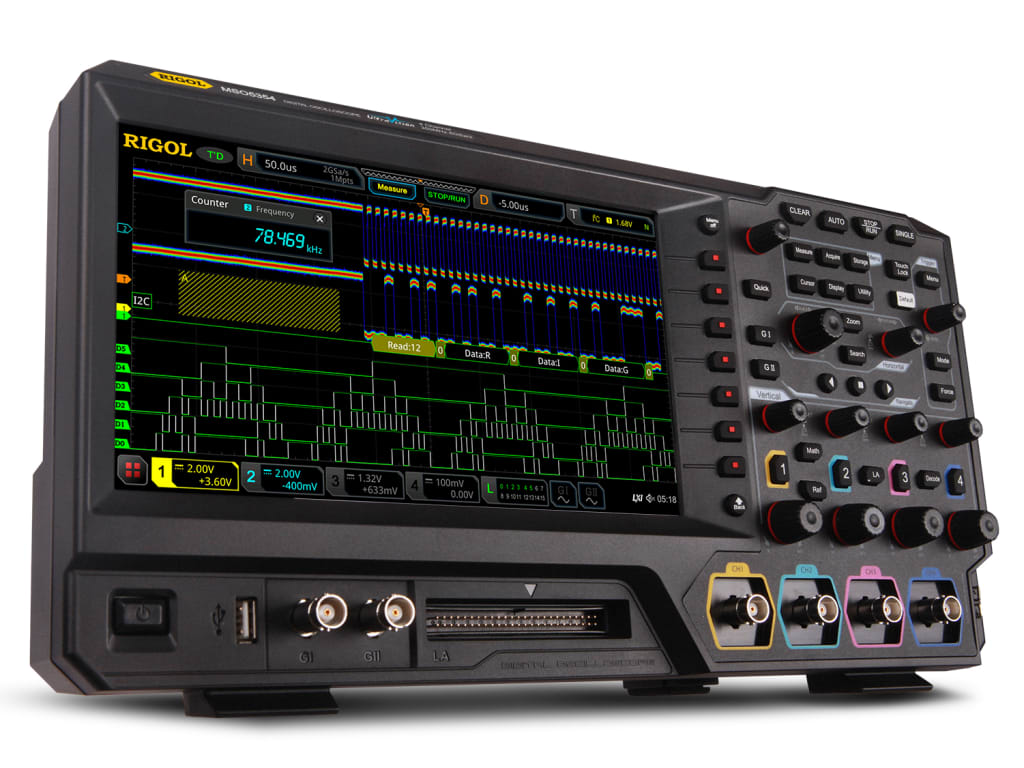

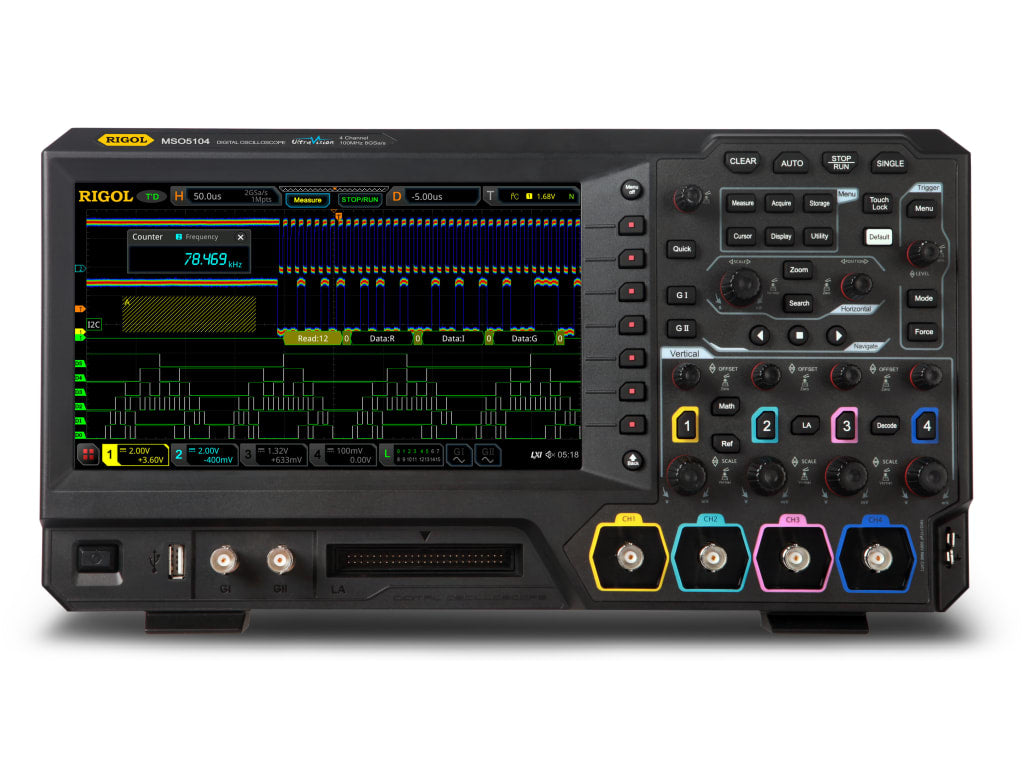

Rigol MSO5104 - 100 MHz, 4 Channel Digital / Mixed Signal Oscilloscope

SKU: 01MSO5104

  • Sale
  • Regular price $1,499.00

The Rigol MSO5104 is a four-channel, 100 MHz digital/mixed-signal oscilloscope with a real-time sample rate of up to 8 GSa/s. Easily upgraded, it features a 100 Mpts memory depth which is upgradable to 200 Mpts via software key code. It also includes 16 digital channels as a standard feature - simply add the optional PLA2216 logic probe to operate.

The Rigol MSO5000 series digital oscilloscope is a high-performance instrument based on Rigol’s UltraVision II technology. With a real-time sample rate of up to 8 GSa/s and extremely high memory depth, the MSO5000 seamlessly integrates 7 instruments into one - oscilloscope, logic analyzer, spectrum analyzer, arbitrary waveform generator and much more. The MSO5000 also features a 9 inch, capacitive multi touch screen with 256 level intensity grading and color persistence.

The MSO5000 Series compares strongly with competitive models from Tektronix, Keysight, R&S, and Siglent on price while providing superior performance specifications, rich advanced analysis features, and next-generation UI.

  • 100 MHz, 4 Channel digital/mixed signal oscilloscope
  • For kit with logic probe, click here
  • Up to 8 GSa/s real-time sample rate
  • 100 Mpts memory depth, optional memory depth up to 200 Mpts
  • 16 digital channels included - requires optional PLA2216 logic probe to operate
  • High waveform capture rate (over 500,000 wfm/s)
  • Multiple interfaces available: USB HOST&DEVICE, LAN(LXI), HDMI, TRIG OUT, and USB-GPIB
  • Remote wireless control software - migrate instrument control and waveform analysis to PC
  • Auto measurement of 41 waveform parameters; full-memory hardware measurement function
  • Up to 450,000 frames of hardware real-time and ceaseless waveforms recording and playback functions
  • Integrates 7 independent instruments into 1 - digital oscilloscope, logic analyzer
