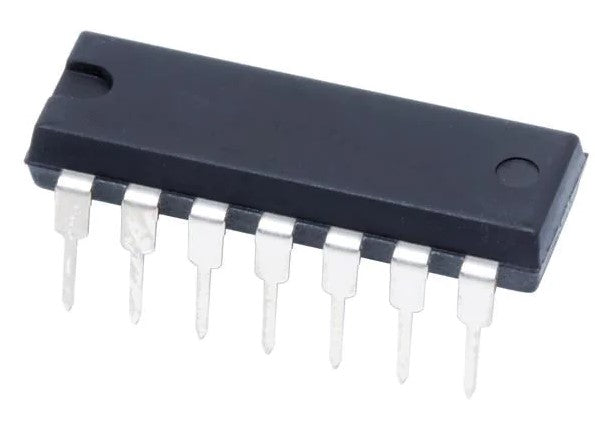

Linear IC J-FET Amplifier 4 Circuit, 14-PDIP
Linear IC J-FET Amplifier 4 Circuit, 14-PDIP
Linear IC J-FET Amplifier 4 Circuit, 14-PDIP
Linear IC J-FET Amplifier 4 Circuit, 14-PDIP

Electronix Express

Linear IC J-FET Amplifier 4 Circuit, 14-PDIP

SKU: 10084

  • Sale
  • $0.68
  • Slew Rate: 13V/µs
  • Gain Bandwidth Product: 3 MHz
  • Current - Input Bias: 30 pA
  • Voltage - Input Offset 3 mV
  • Current - Supply: 1.4mA (x4 Channels)
  • Current - Output / Channel: 10 mA
  • Voltage - Supply Span (Min): 10 V
  • Voltage - Supply Span (Max): 30 V
  • Operating Temperature: 0°C ~ 70°C
  • Mounting Type: Through Hole
  • Package / Case: 14-DIP (0.300", 7.62mm)
