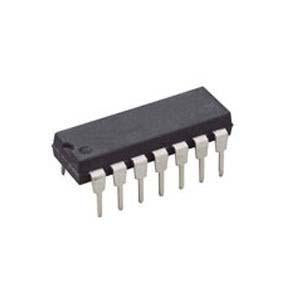

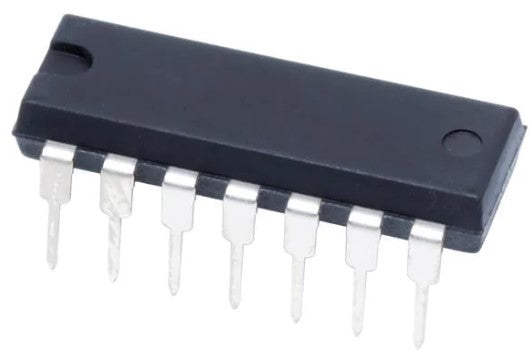

LM339 IC Low-Power Low-Offset Voltage Quad Comparator, 14 Pin DIP

The LMx39-N series consists of four independent precision voltage comparators with an offset voltage specification as low as 2 mV maximum for all four comparators. These comparators were designed specifically to operate from a single power supply over a wide range of voltages. Operation from split power supplies is also possible and the low power supply current drain is independent of the magnitude of the power supply voltage. These comparators also have a unique characteristic in that the input common-mode voltage range includes ground, even though they are operated from a single power supply voltage.

Features:

• Wide Supply Voltage Range
• Very Low Supply Current Drain (0.8 mA) — Independent of Supply Voltage
• LowInput Biasing Current: 25 nA
• LowInput Offset Current: ±5 nA
• Offset Voltage: ±3 mV
• Input Common-Mode Voltage Range Includes GND
• Differential Input Voltage Range Equal to the Power Supply Voltage
• LowOutput Saturation Voltage: 250 mV at 4 mA
• Output Voltage Compatible With TTL, DTL, ECL, MOS, and CMOS Logic Systems
• Advantages:
  • High-Precision Comparators
  • Reduced VOS Drift Overtemperature
  • Eliminates Need for Dual Supplies
  • Allows Sensing Near GND
  • Compatible With All Forms of Logic
  • Power Drain Suitable for Battery Operation

Specifications:

• Package / Case: PDIP-14

• Number of Channels: 4 Channel

• Output Type: Open Collector

• Response Time: 1.3 us

• Comparator Type: Differential

• Supply Voltage - Min: 2 V

• Supply Voltage - Max: 30 V

• Operating Supply Current: 500 uA

• Output Current per Channel: 6 mA

• Vos - Input Offset Voltage: 5 mV

• Ib - Input Bias Current: 250 nA

• Minimum Operating Temperature: 0 C

• Maximum Operating Temperature: + 70 C
